Jumo RTD Temperature Probe, 6mm Dia, 150mm Long, 2 Wire, Class B +400°C Max

모든 RTD Sensors 열람하기
사용할 수 없음
RS는 더 이상 이 제품을 입고하지 않습니다.
RS 제품 번호:
279-328
제조사 부품 번호:
902150/30-402-1001-1-6-150-11-2500/315,317,
제조업체:
Jumo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Jumo

Sensor Type

RTD

Probe Length

150mm

Probe Diameter

6mm

Minimum Temperature Sensed

-50°C

Maximum Temperature Sensed

+400°C

Number Of Wires

2

Accuracy

Class B

COO (Country of Origin):
DE

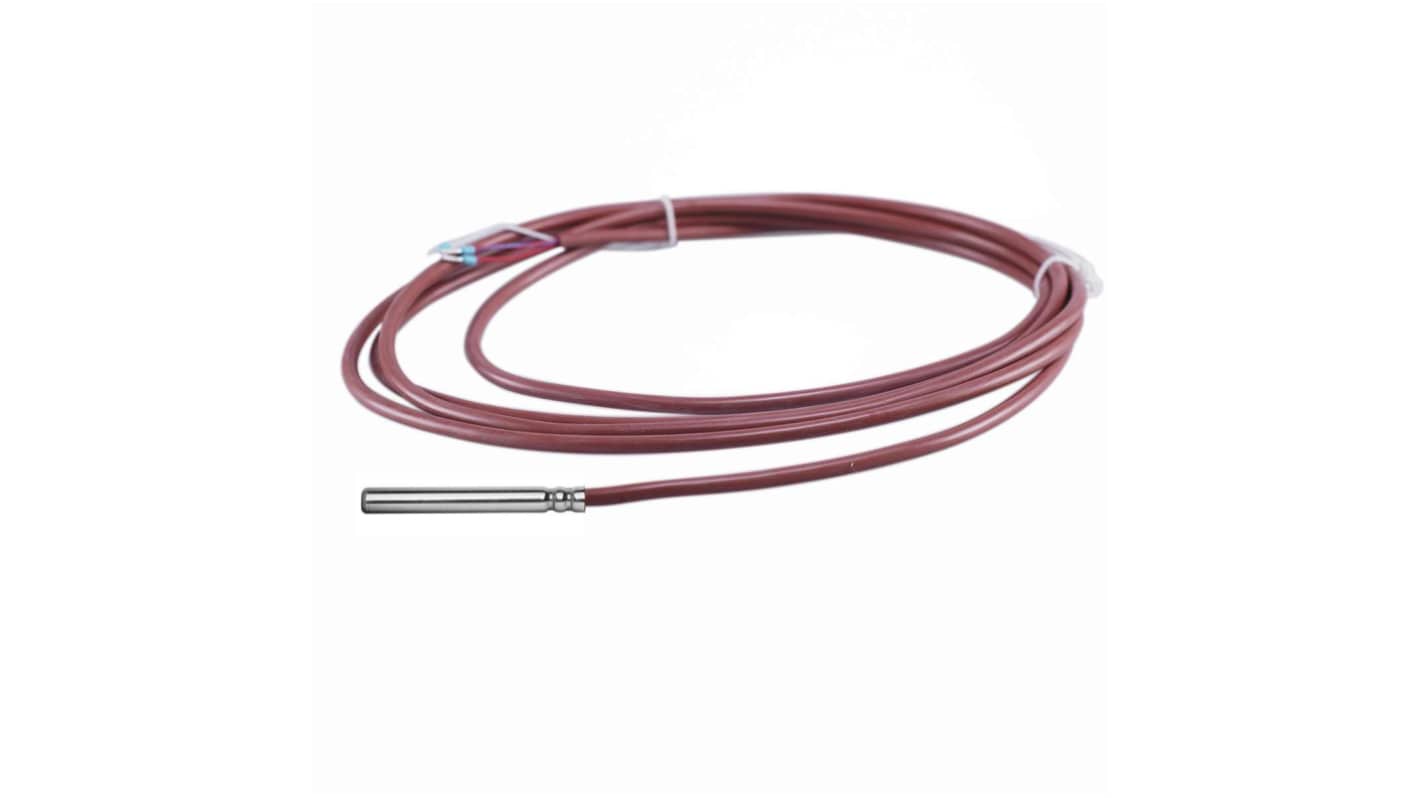

The Jumo Pluggable resistance thermometer with connecting cable allows, due to the temperature dependence of the electrical resistance of its built-in platinum sensor, a temperature measurement in gaseous as well as liquid media. The multi-part protection tube is welded, consists of the material 1.4571 and has a dimension of 6.0 x 150 mm. The resistance thermometer is therefore ideally suited for applications in air conditioning and refrigeration technology, in heating, furnace and apparatus engineering, as well as in laboratory technology. The resistance thermometer according to DIN EN 60751 (Class B) is designed as 1 x Pt100 in three-wire circuit and is designed for temperatures from -50 to +400 °C. The 2.5 m long connection cable made of metal braiding has shielded contacts, is mounted at the transition with strain relief, and is equipped with an anti-kink spring.

The permissible ambient temperature of the connection cable is -50 to +350°C
The open connection end is equipped with wire end ferrules according to DIN 46228 part 4
