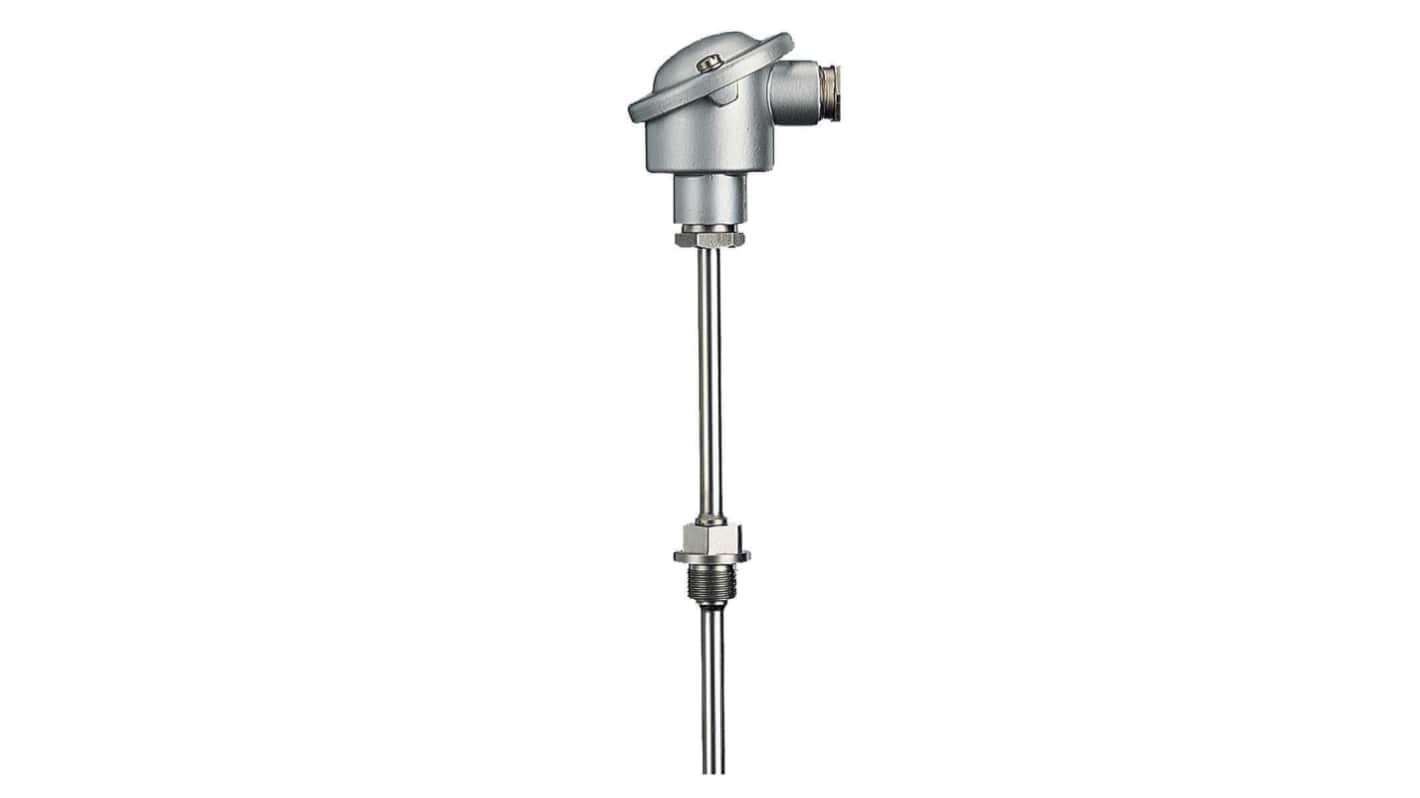

Jumo PT100 Temperature Probe, 170mm Long, Probe, +400°C Max

모든 RTD Sensors 열람하기

Subtotal (1 unit)*

₩928,362.80

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2025년 12월 31일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
1 +₩928,362.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
279-110
제조 부품 번호:
902006/53-505-2003-1-12-190-815/000
제조업체:
Jumo
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Jumo

Sensor Type

PT100

Probe Length

170mm

Minimum Temperature Sensed

-40°C

Maximum Temperature Sensed

+400°C

Process Connection

Probe

COO (Country of Origin):
DE
The Jumo Screw-in resistance thermometers for DIN EN 14597 tested devices and systems. The thermometer with weld-in pocket and terminal head Form B (M24 x 1.5) may be used in conjunction with temperature control and limiting devices tested to DIN EN 14597 (DIN 3440) in heat transfer systems in accordance with DIN 4754. The double thermometer 2x P100 in two-wire circuit according to DIN EN 60751 is designed for temperatures from -40 to +400 °C. This resistance thermometer is designed for temperature measurements in liquid media (water/oil). Fields of application are, among others, air conditioning and refrigeration technology as well as heating, furnace and apparatus engineering.

The connection head form B is made of die cast aluminium and withstands ambient temperatures up to 100 °C
The protection tube with the dimensions 12 x 190 mm is made of steel St 35.8, material no. 1.0305
