- RS 제품 번호:
- 179-6813
- 제조사 부품 번호:
- SMRR7110C-1
- 제조업체:
- Nidec Components
일시 품절-다음 입고 날짜는 16/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(2개가 1팩안에)
₩6,878.901
수량 | 한팩당 | 한팩당* |
2 - 12 | ₩6,878.901 | ₩13,756.078 |
14 - 24 | ₩6,706.411 | ₩13,412.822 |
26 + | ₩6,602.917 | ₩13,205.834 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 179-6813
- 제조사 부품 번호:
- SMRR7110C-1
- 제조업체:
- Nidec Components
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

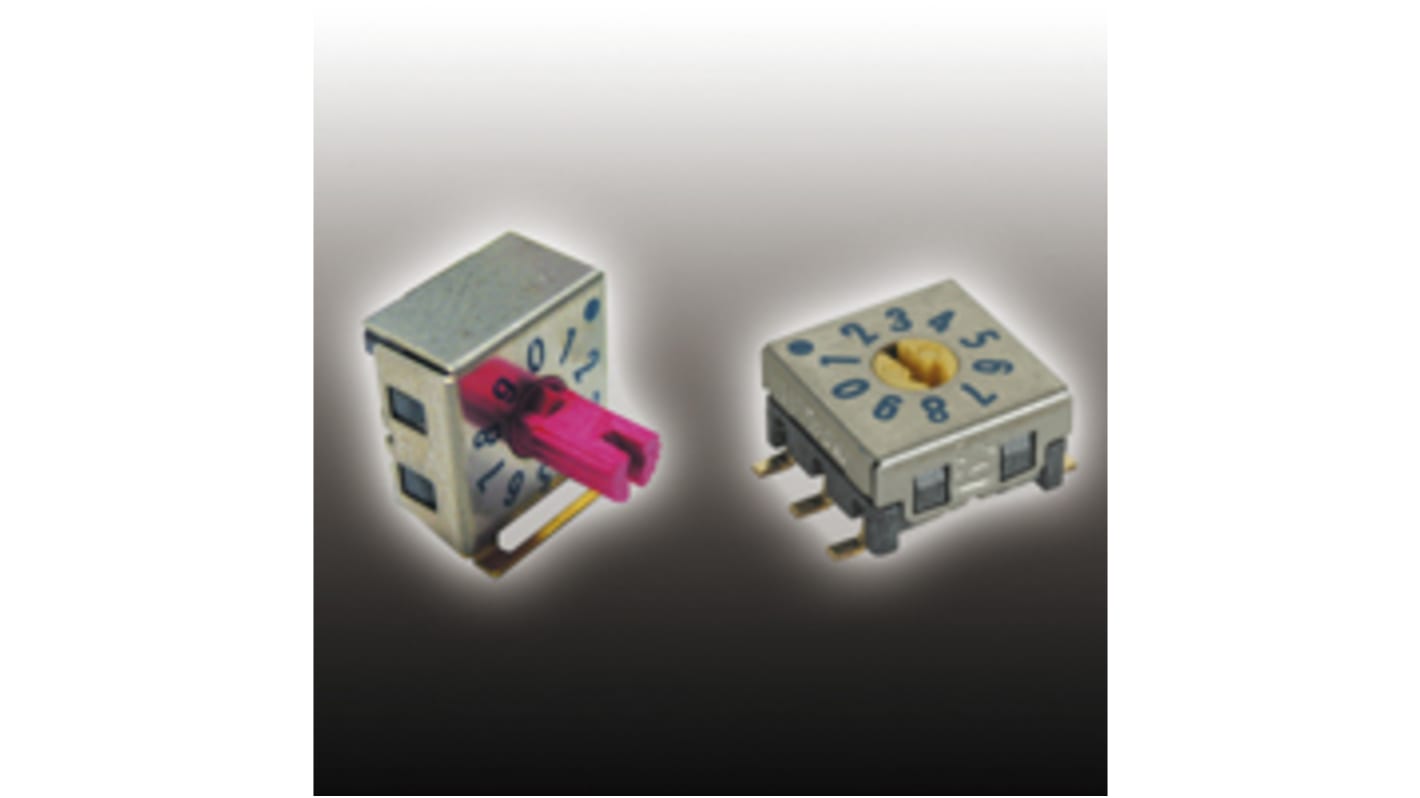

Hyper-miniature Size(7.5mm sq.)
Designed for high density mounting.
Process Sealed
Gold Plated Contacts
Clearly Visible Legends and Position
Indicator
Designed for high density mounting.
Process Sealed
Gold Plated Contacts
Clearly Visible Legends and Position
Indicator
사양
속성 | 값 |
---|---|
Mounting Type | Surface Mount |
Output Coding | BCD, BCH |
Terminal Type | Solder |
Number of Switch Positions | 10 |
Number of Contacts | "10" |
Contact Current Rating | 100 (Non-Switching) mA, 30 (Switching) mA |
Voltage Rating | 15 V dc, 50V dc |
Series | SMR |
Height | 4.1mm |
Width | 8.1mm |
Depth | 7.5mm |
