- RS 제품 번호:
- 768-5276
- 제조사 부품 번호:
- PID-00217
- 제조업체:
- Molex Premise Networks
일시 품절-다음 입고 날짜는 09/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩434,862.814
수량 | 한팩당 |
1 + | ₩434,862.814 |
- RS 제품 번호:
- 768-5276
- 제조사 부품 번호:
- PID-00217
- 제조업체:
- Molex Premise Networks
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- PL
제품 세부 사항

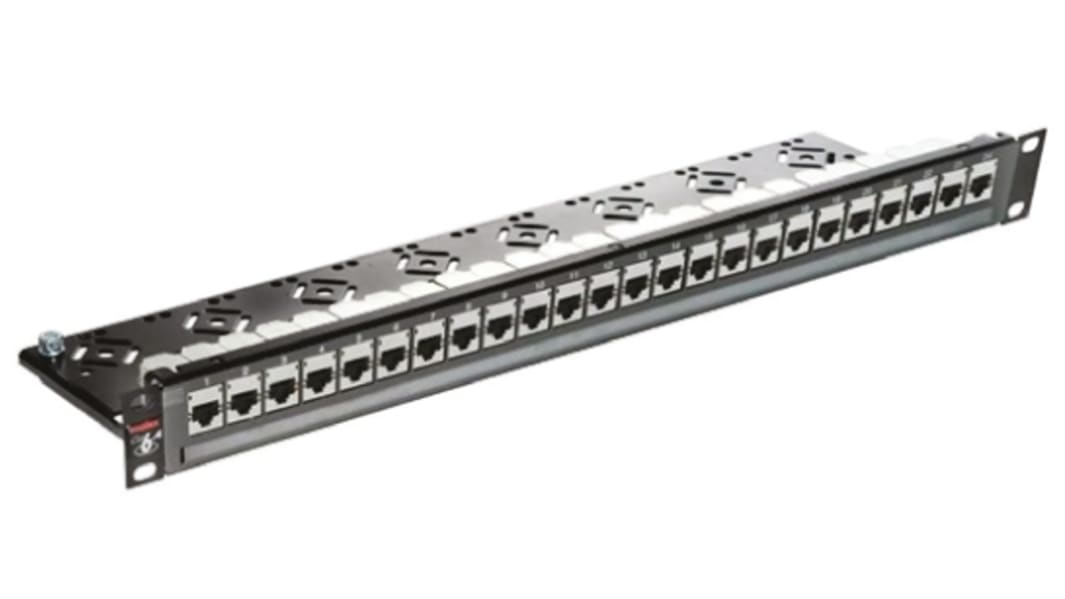

PowerCat™ Cat6a Shielded 24 Port Patch Panel
24 Port (1U) PowerCat™ cat6a shielded patch panel with removable rear cable management trays and port numbering on the front and rear. This PowerCat™ cat6a patch panel features a shuttered 360° die-cast shielded DataGate™ cat6a RJ45 connector which offers alien crosstalk suppression, insertion loss and provides enhanced (EMI) protection. The spring loaded shutter of the DataGate™ RJ45 connector protects against contamination and also serves to eject improperly seated patch cords. The DataGate™ connector is dual colour coded for either 568A or 568B wiring schedules and is backwards compatible with shielded cat6 and cat5e systems. The PowerCat™ shielded cat6a patch panel is made from sheet metal and uses IDC V-shaped tin plated copper 22-24 AWG contacts that flex when terminated.
Note
Category 6A performance when installed as a complete PowerCat™ cat6a shielded system.
Standards
TIA/EIA-568-B.2-10
ISO/IEC 11801 A1.1
FCC Subpart F 68.5
IEC-603-7
ISO/IEC 11801 A1.1
FCC Subpart F 68.5
IEC-603-7
사양
속성 | 값 |
---|---|
LAN Category | Cat6a |
Number of Ports | 24 |
Interface Type | IDC |
Shield Type | STP |
Rack Height | 1U |
Height | 32mm |
Width | 483mm |
Depth | 156mm |
Series | PowerCat |
