제조사부품번호

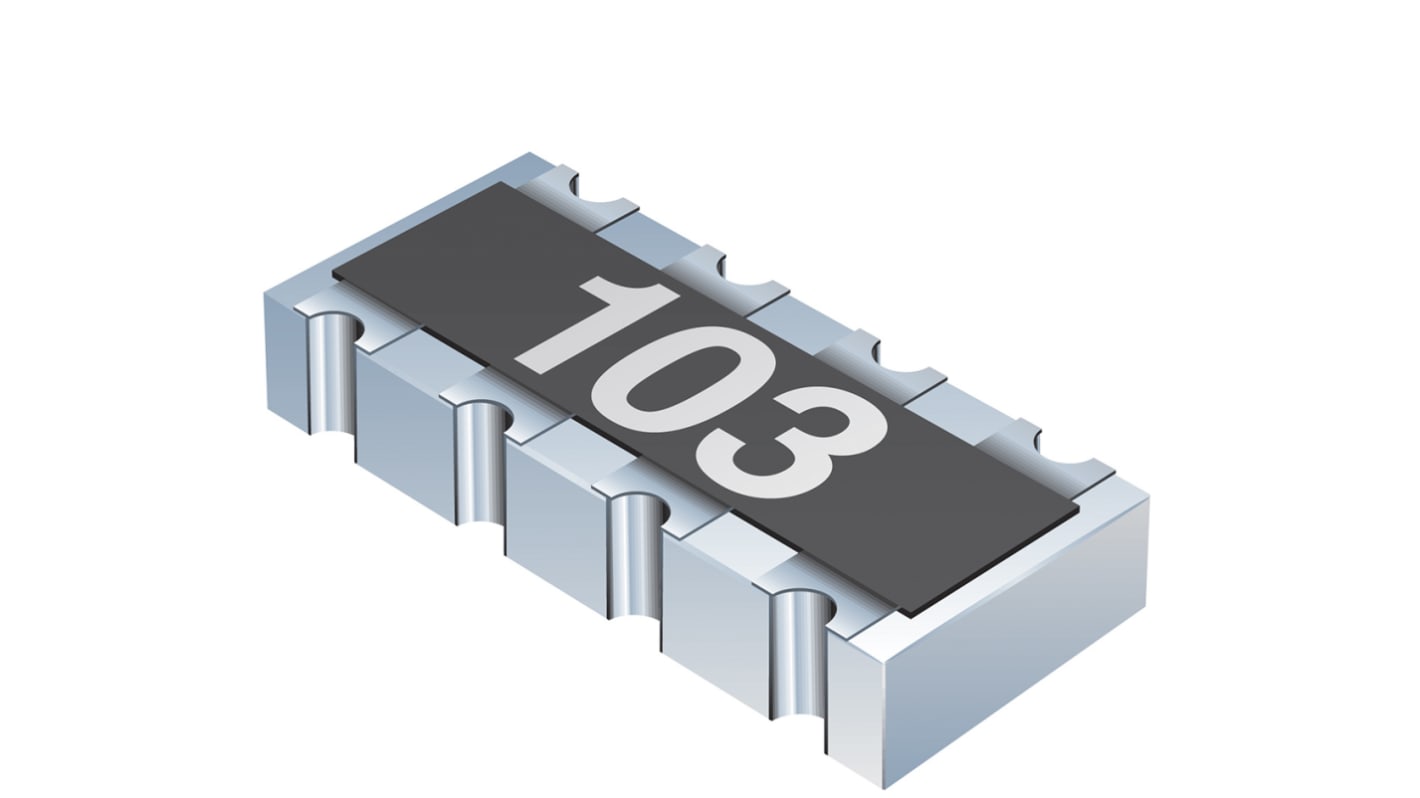

Bourns, CAT10 10kΩ ±5% Isolated Resistor Array, 4 Resistors, 0.0625W total, 0804, Concave

RS 제품 번호:: 181-4435
제조사 부품 번호:: CAT10-103J4LF
제조업체:: Bourns

Bourns, CAT10 10kΩ ±5% Isolated Resistor Array, 4 Resistors, 0.0625W total, 0804, Concave

대량 구매 할인 기용 가능

Subtotal (1 reel of 500 units)*

₩14,100.00

현재 액세스할 수 없는 재고 정보

수량	한팩당	릴당*
500 - 2000	₩28.20	₩14,194.00
2500 - 4500	₩28.20	₩13,912.00
5000 +	₩26.32	₩13,630.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 181-4435
제조사 부품 번호:: CAT10-103J4LF
제조업체:: Bourns

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Bourns
	Resistance	10kΩ
	Resistor Type	Array
	Number of Resistors	4
	Package/Case	0804
	Power Rating	0.0625W
	Termination Style	Concave
	Tolerance	±5%
	Case Style	Moulded
	Power Rating per Resistor	0.062W
	Circuit Designator	ISOL
	Length	2mm
	Depth	1mm
	Height	0.55mm
	Dimensions	2 x 1 x 0.55mm
	Number of Terminals	8
	Series	CAT10
	Temperature Coefficient	±250ppm/°C
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	+125°C

	모두 선택
	브랜드 Bourns
	Resistance 10kΩ
	Resistor Type Array
	Number of Resistors 4
	Package/Case 0804
	Power Rating 0.0625W
	Termination Style Concave
	Tolerance ±5%
	Case Style Moulded
	Power Rating per Resistor 0.062W
	Circuit Designator ISOL
	Length 2mm
	Depth 1mm
	Height 0.55mm
	Dimensions 2 x 1 x 0.55mm
	Number of Terminals 8
	Series CAT10
	Temperature Coefficient ±250ppm/°C
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature +125°C

Datasheet CAT10-103J4LF

5 isolated resistors in an 0804 size package
E24 series from 10 ohms to 1 megohm
Concave termination style
Resistance tolerance ±5 %
Suitable for most types of soldering processes
Paper tape on plastic reel for automatic placement

Bourns, CAT10 10kΩ ±5% Isolated Resistor Array, 4 Resistors, 0.0625W total, 0804, Concave
