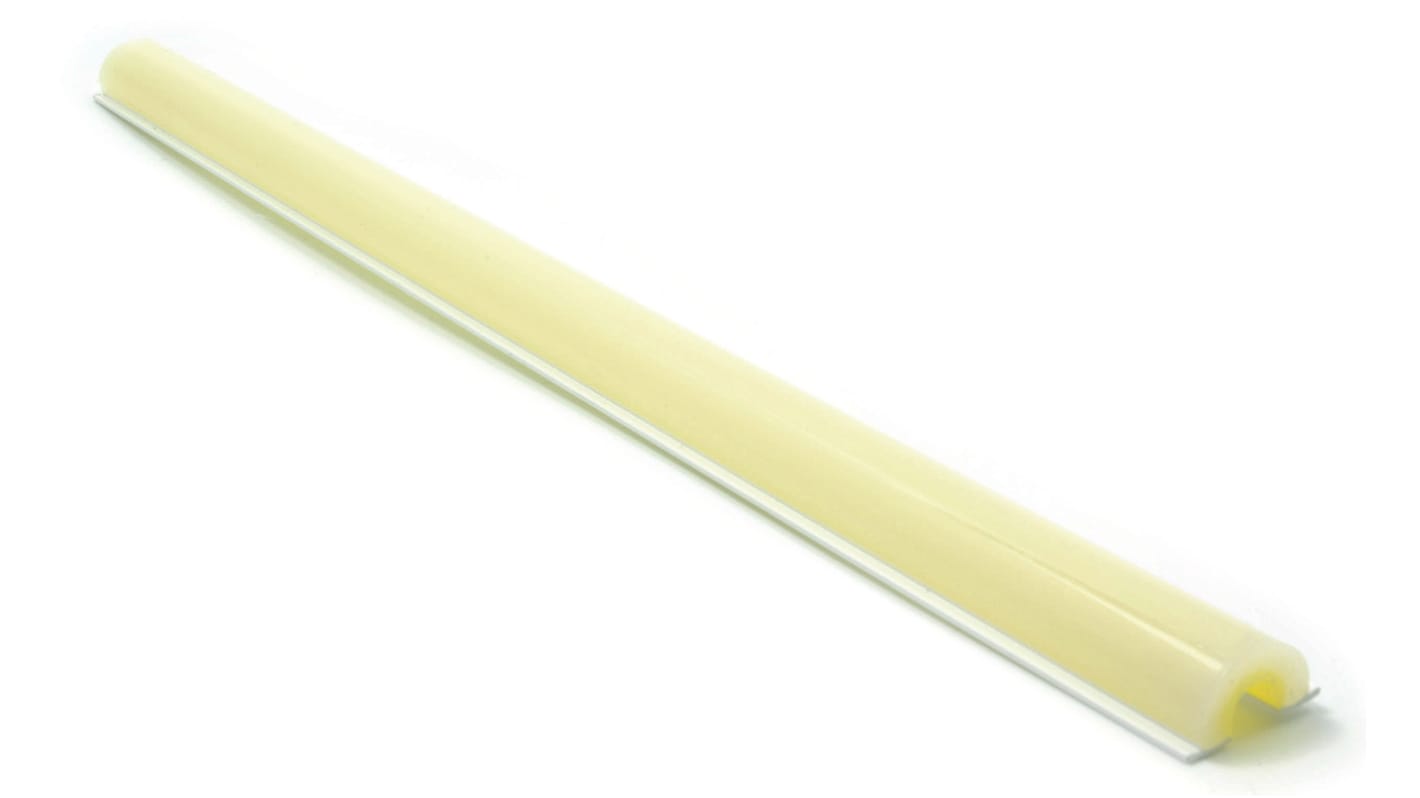

Intematix 150mm Remote Phosphor Extrusion, 5000 KK, CRI:80

  • RS 제품 번호 920-9521
  • 제조사 부품 번호 CL-850-LIN01-PC0-0150R
  • 제조업체 Intematix
참조 문서
제정법과 컴플라이언스
ROHS 준수
COO (Country of Origin): GB
제품 세부 사항

Intematix ChromaLit CL Series - Linear and Panel

ChromaLit Linear and Panel remote phosphor lenses offer a range of CCT and CRI specifications in linear shapes that are extensible to any type of luminaire design. These products are ideal for applications such as under-cabinet, linear, task and ceiling panel lighting.

Intematix’s ChromaLit range consists of remote phosphor systems for lighting, powered by radiant energy from blue LEDs, lasers and OLEDs. The phosphor is delivered in a composite material and emits white light when paired with a blue light engine. This separation of the remote phosphor component and the light source allows for an efficient and uniform luminaire, excluding reflections and pixilation. The Chromalit series are glare-free remote phosphor lenses which offer consistency of lumens and colour over their lifetime.

The ChromaLit remote phosphor lenses are rugged and impact resistant. They offer higher system efficacy than conventional LED lighting designs, with up to 30% more lumen per watt than conventional white LEDs. This is down to the ChromaLit lenses operating at lower temperatures whilst maximising photon extraction and eliminating the need for a diffuser. ChromaLit system designs require fewer LEDs, use smaller heat sinks, enable higher LED drive currents and reduce energy usage. Available in a variety of shape options, the ChromaLit series can suit a variety of applications. Glass varieties are also available.

Features of the ChromaLit series remote phosphor lenses:
- Variety of shapes available
- Powered by blue light engine (LEDs, lasers and OLEDs)
- Glare free, uniform lighting
- High CRI: 70 to 90
- Consistent colour matching
- High system efficacy
- Increase in LED package lifetime
- Reliable

Intematix Remote Phosphor Lenses

사양
속성
Lens Shape Linear
Colour Rendering 80
Colour Temperature 5000K
Viewing Angle 80 °
Conversion Efficacy 220 lm/Wrad
Dimensions 150 x 20 x 9.5mm
Length 150mm
Width 20mm
Height 9.5mm
Application Plant Growth
1 <재고있음> 5-9영업일내 홍콩 발송
단가 Each
13,103.70
(exc. VAT)
수량
한(1)개당
1 - 4
₩13,103.70
5 - 9
₩12,637.15
10 +
₩12,209.35
