- RS 제품 번호:
- 395-5925
- 제조사 부품 번호:
- 6310-7141-1602
- 제조업체:
- Herga
- RS 제품 번호:
- 395-5925
- 제조사 부품 번호:
- 6310-7141-1602
- 제조업체:
- Herga
제정법과 컴플라이언스
해당 안됨
- COO (Country of Origin):
- GB
제품 세부 사항

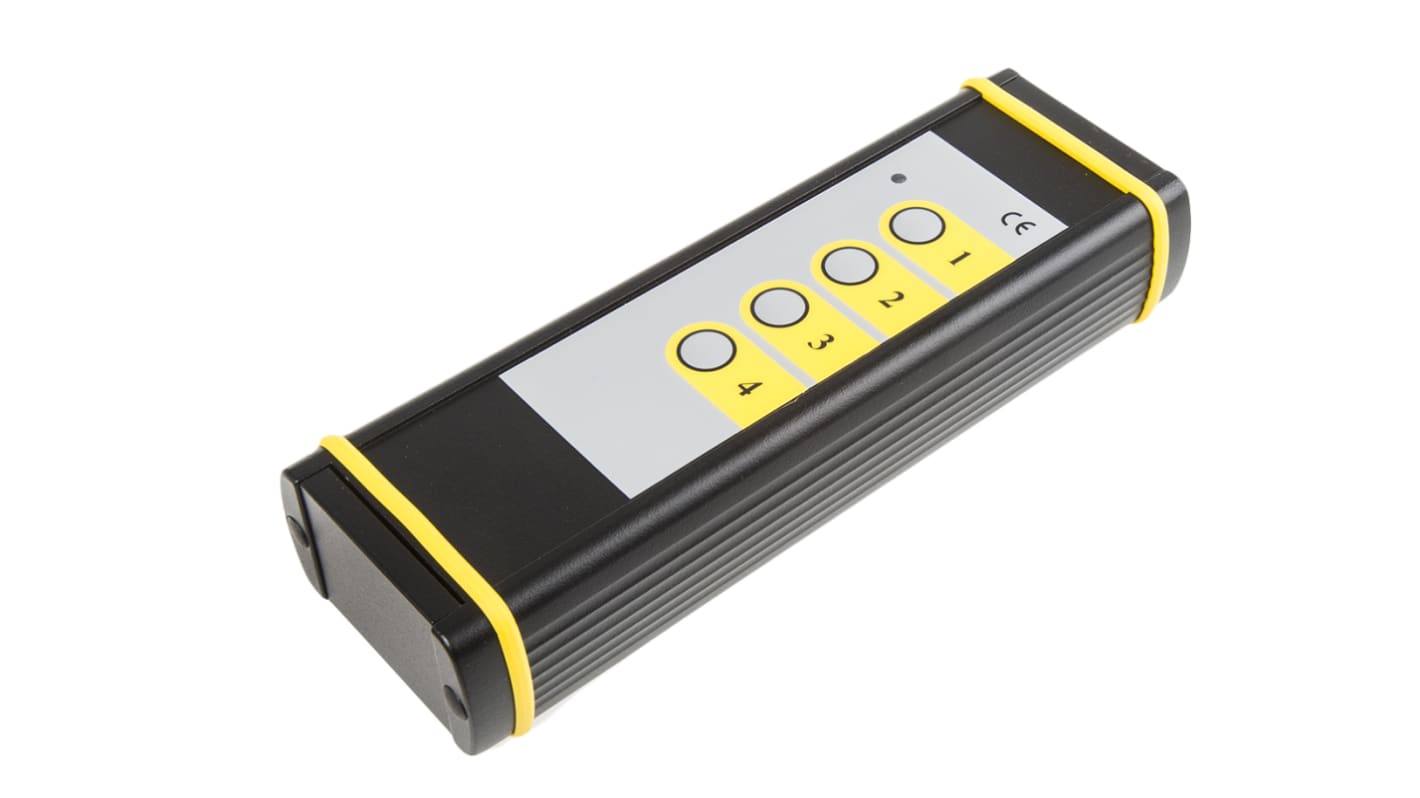

Heavy Duty Infrared Remote Control System
Handheld Infrared remote system designed for industrial use. The system uses address coding and discrete data bits in conjunction with a modulated light source to ensure system integrity.
Up to 8 channels available
Weatherproof receiver to IP66
Several transmitters can be used with one receiver
Transmitter and receivers available separately
Remote receiver sensor head available separately
Typical applications: garage door remote control, remote operation of equipment and machinery, access control, theatre lighting control
Weatherproof receiver to IP66
Several transmitters can be used with one receiver
Transmitter and receivers available separately
Remote receiver sensor head available separately
Typical applications: garage door remote control, remote operation of equipment and machinery, access control, theatre lighting control
사양
속성 | 값 |
---|---|
Frequency | 433.92MHz |
Modulation | FM |
Number of Channels | 4 |
Number of Key Fob Buttons | 4 |
Dimensions | 56 x 32 x 170mm |
Depth | 32mm |
Height | 170mm |
Maximum Operating Temperature | +55°C |
Maximum Supply Voltage | 24 V dc, 240 V ac |
Minimum Operating Temperature | +5°C |
Minimum Supply Voltage | 12 V dc, 110 V ac |
Width | 56mm |
