- RS 제품 번호:
- 181-3278
- 제조사 부품 번호:
- QUANTAFOB-4S2
- 제조업체:
- RF Solutions
26 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩158,618.354
수량 | 한팩당 |
1 - 4 | ₩158,618.354 |
5 - 24 | ₩150,801.107 |
25 + | ₩135,722.032 |
- RS 제품 번호:
- 181-3278
- 제조사 부품 번호:
- QUANTAFOB-4S2
- 제조업체:
- RF Solutions
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항

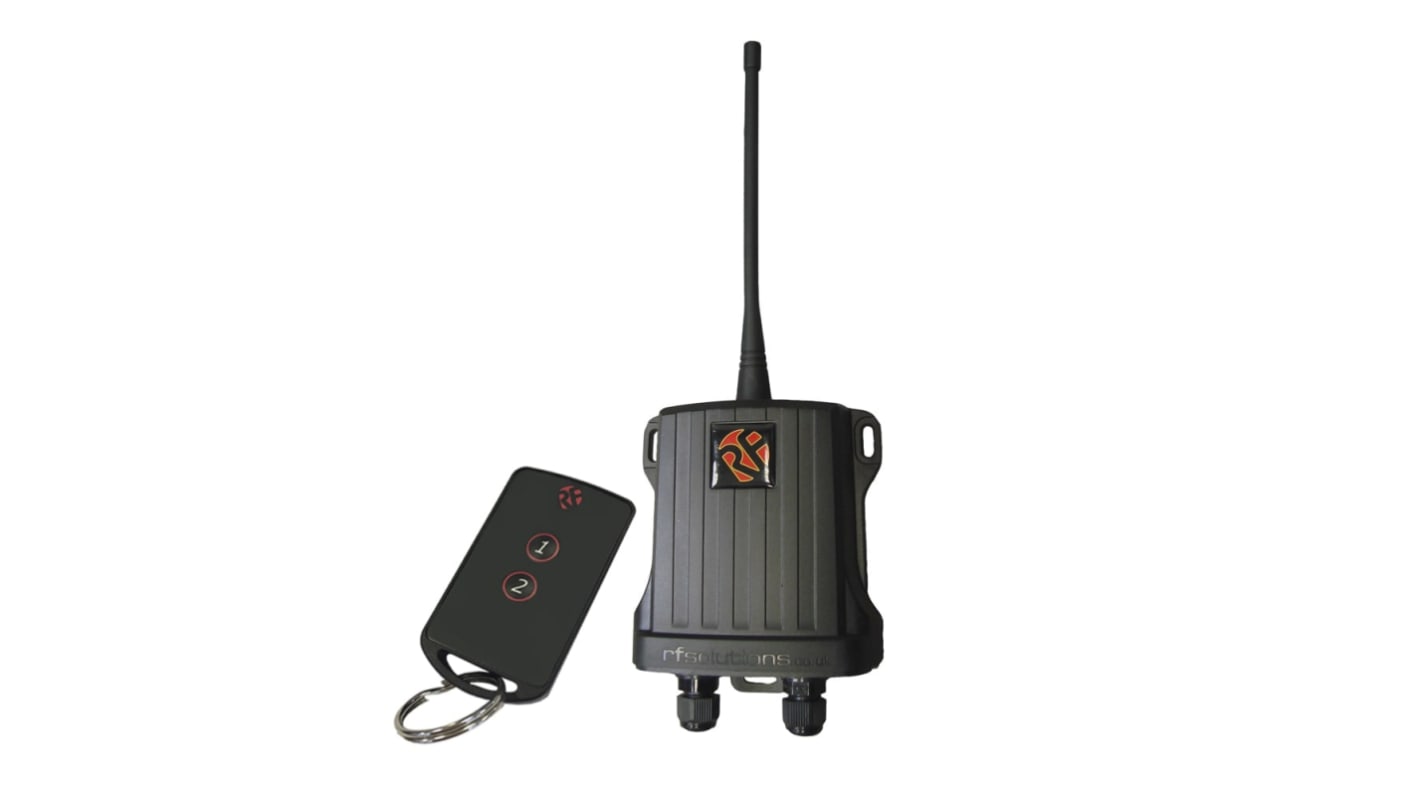

A highly versatile general purpose Remote Control System for many different applications. Housed in a rugged weatherproof enclosure, The new QUANTAFOB system is ideally suited to any remote switch requirement. Each receiver has 4 relays, using the easy-learn process each relay can be controlled from any switch on any transmitter. Additional transmitters may be added to the system using the same easy-learn process. Installation is by screw terminals to the power supply and the output relay contacts. The output relays are activated by the button press on the transmitter encoder.
Up to 150m Range
433MHz FM Technology
1 – 4 Channels each 1000W
Waterproof Receiver
New High Security RF Protocol
4 Changeover Relays 5A @ 230Vac
Outputs Momentary or Latching
Any Switch Map to Any Relay
Systems supplied ready to Go
433MHz FM Technology
1 – 4 Channels each 1000W
Waterproof Receiver
New High Security RF Protocol
4 Changeover Relays 5A @ 230Vac
Outputs Momentary or Latching
Any Switch Map to Any Relay
Systems supplied ready to Go
사양
속성 | 값 |
---|---|
Frequency | 433MHz |
Modulation | FM |
Number of Channels | 2 |
Dimensions | 130 x 112 x 42 (Receiver) mm, 90 x 54 x 27 (Transmitter) mm |
Depth | 112 (Receiver) mm, 54 (Transmitter) mm |
Height | 27 (Transmitter) mm, 42 (Receiver) mm |
Maximum Operating Temperature | +50°C |
Maximum Supply Voltage | 30V ac/dc |
Minimum Operating Temperature | -10°C |
Minimum Supply Voltage | 12V ac/dc |
Width | 130 (Receiver) mm, 90 (Transmitter) mm |
