- RS 제품 번호:
- 134-7829
- 제조사 부품 번호:
- KTM-WP117A1P
- 제조업체:
- Sick
- RS 제품 번호:
- 134-7829
- 제조사 부품 번호:
- KTM-WP117A1P
- 제조업체:
- Sick
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- MY
제품 세부 사항

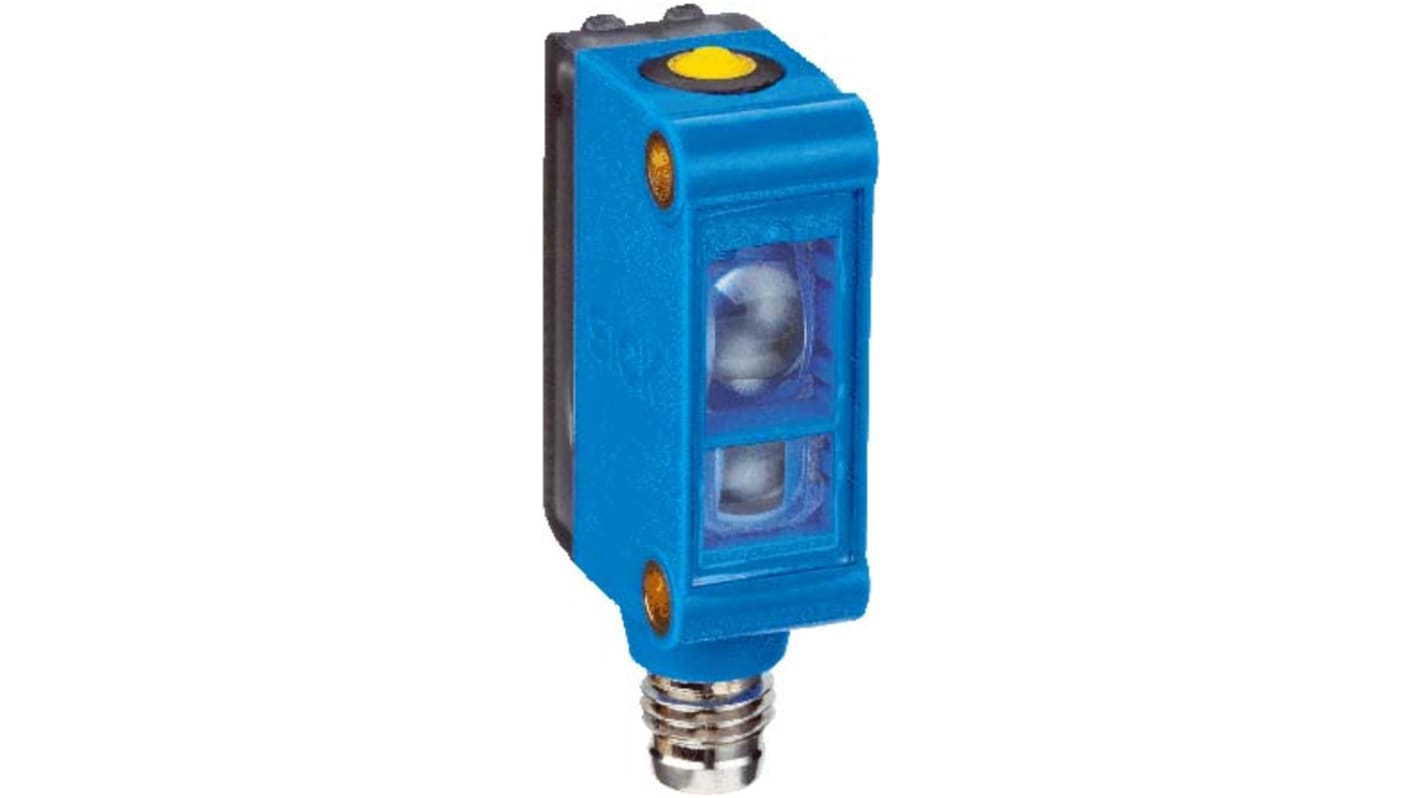

Type KTM Contrast Sensors
The KTM series of contrast sensors from SICK feature high contrast resolution and an increased dynamic range, which ensure increased performance on shiny materials increasing the range of applications they can be used in. The KTM contrast sensors have robust metal inserts to enable easy integration and are housed in a miniature case. The KTM series of contrast sensors are easy to configure through using a simple teach button to ensure the mark and the background are clearly defined.
High greyscale resolution
Three colour LED technology
Easy to configure via two teach methods
Simple installation through threaded metal inserts
Three colour LED technology
Easy to configure via two teach methods
Simple installation through threaded metal inserts
SICK Contrast Sensors
사양
속성 | 값 |
---|---|
Detection Range | 12.5 mm |
Light Source | RGB LED |
Output Type | PNP |
Maximum Current | 50 mA |
Switching Frequency | 15 kHz |
Electrical Connection | 4-Pin M8 Connector |
Supply Voltage | 12 → 24 V dc |
LED Status Display | Yes |
Terminal Type | 4-Pin Connector |
Housing Material | ABS |
Series | KTM |
Interface | IO-Link |
IP Rating | IP67 |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +55°C |
Mounting Type | Flange Mount |
