Name: OPB702 Optek, Through Hole Reflective Optical Sensor, Phototransistor Output
Brand: Optek
SKU: 170-0777
Price: 5848.68 KRW
Availability: InStock

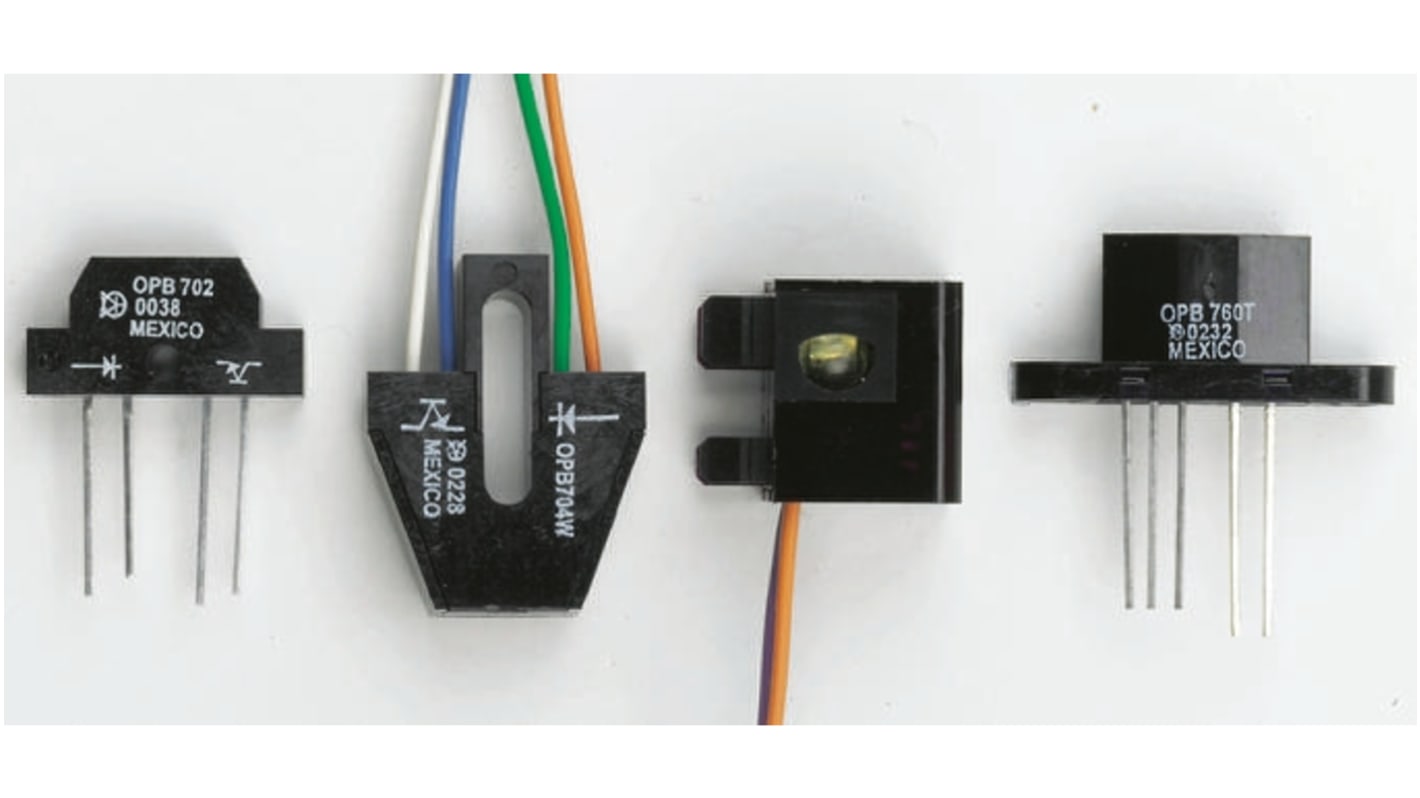

OPB700/701/702 Reflective Object Sensors

OPB700 and OPB700ALZ series of sensors from Optek consist of an infrared emitting diode and an NPN silicon phototransistor, mounted side-by-side on converging optical axes in a black plastic housing.
OPB701 and OPB701ALZ sensors consist of an infrared emitting diode and an NPN silicon photodarlington, and also mounted side-by-side on converging optical axes in a cost-effective black plastic housing.
The interconnect wires for these devices are UL approved #26 AWG, with Teflon insulation, stripped & tinned.
The OPB700 and OPB701 have 4" (101 mm) wire length while the OPB700ALZ & OPB701ALZ have 18" (457 mm) wire length.

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Reflective Optical Sensors, Optek

수량	한팩당	Per Bag**
25 - 25	₩5,848.68	₩146,207.60
50 - 75	₩5,730.24	₩143,274.80
100 +	₩5,617.44	₩140,417.20

모두 선택	제품 정보	값
	브랜드	Optek
	Peak Sensor Distance	3.81mm
	Output Device	Phototransistor
	Number of Channels	1
	Number of Pins	4
	Mounting Type	Through Hole
	Dimensions	17.78 x 4.78 x 8.89mm
	Height	8.89mm
	Length	17.78mm
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-40°C
	Width	4.78mm
	Operating Temperature Range	-40 → +85°C

	모두 선택
	브랜드 Optek
	Peak Sensor Distance 3.81mm
	Output Device Phototransistor
	Number of Channels 1
	Number of Pins 4
	Mounting Type Through Hole
	Dimensions 17.78 x 4.78 x 8.89mm
	Height 8.89mm
	Length 17.78mm
	Maximum Operating Temperature +85°C
	Minimum Operating Temperature -40°C
	Width 4.78mm
	Operating Temperature Range -40 → +85°C
