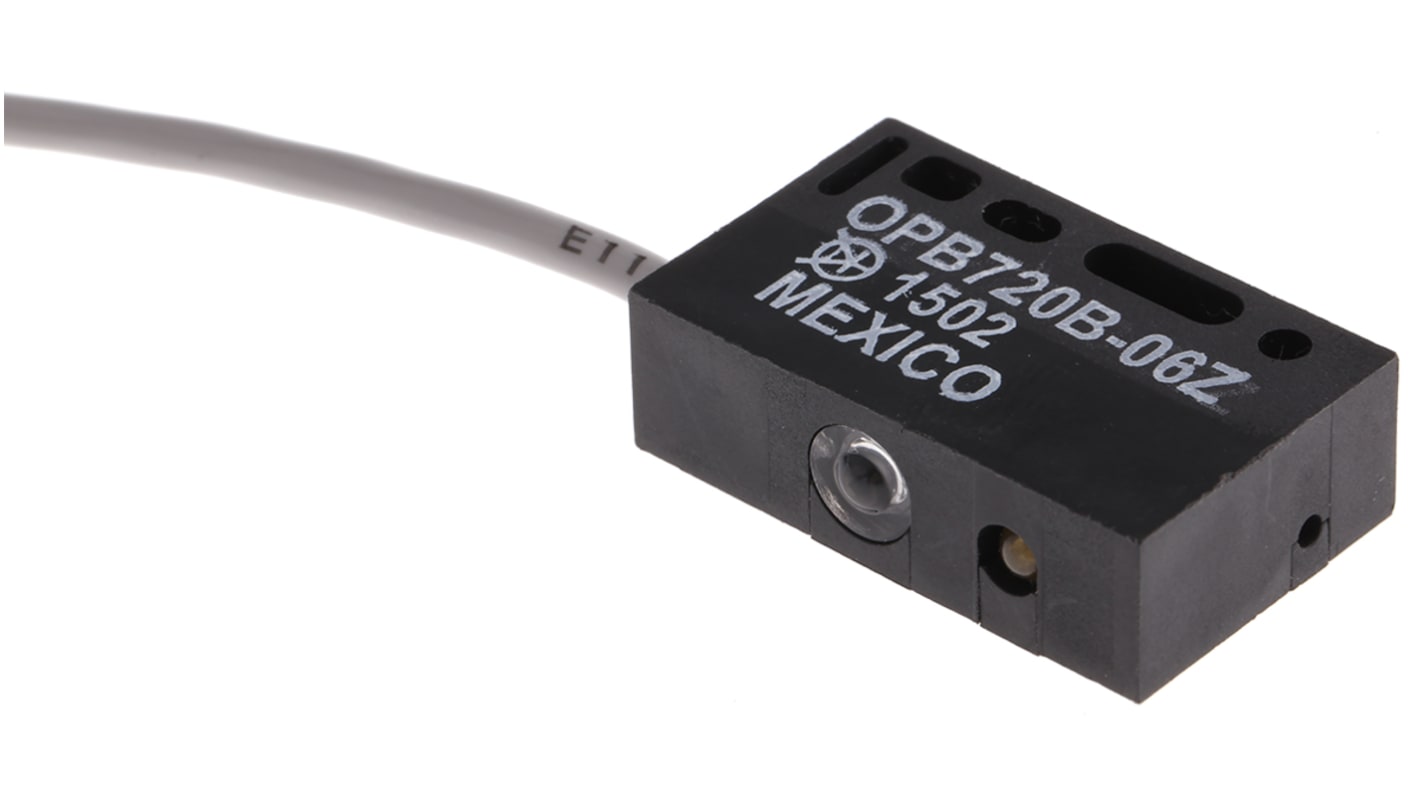

OPB720B-06Z Optek, Reflective Optical Sensor, Open Collector Output

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Reflective Optical Sensors 열람하기
대량 구매 할인 기용 가능

Subtotal (1 Bag of 25 units)*

₩774,325.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 200 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Bag*
25 - 25₩30,973.00₩774,334.40
50 - 75₩30,198.44₩754,951.60
100 +₩29,292.28₩732,297.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
170-0732
제조사 부품 번호:
OPB720B-06Z
제조업체:
Optek
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Optek

Peak Sensor Distance

152mm

Output Device

Open Collector

Number of Channels

1

Number of Pins

3

Dimensions

17.15 x 8.38 x 27.94mm

Height

27.94mm

Length

17.15mm

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

0°C

Width

8.38mm

Operating Temperature Range

0 → +70°C

COO (Country of Origin):
MX

OPB720A and OPB720B Long Range Reflective Switch


The OPB720 Series has a logical output that switches from a high level with a reflective target, to a low level with no reflective target. With the addition of hysteresis, the sensor minimises switching oscillations on the output. The sensor distance that can be achieved is very dependent on the type of material used for the target

Recognises objects as small as 2mm
Can be used in either reflective or interruptive mode
Ambient light rejection of <100k Lux
TTL/CMOS compatible
Cable length: 990mm
Size: 27.94 x 8.38 x 17.15mm
Applications: conveyer-belt package recognition, personnel movement recognition, near-focus security systems, wash and soap dispensing stations and product dispensing services

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



Reflective Optical Sensors, Optek
