    Pi Supply JustBoom Amp HAT Audio Amplifier for Raspberry Pi

    RS 제품 번호:
    122-8185
    제조사 부품 번호:
    JustBoom Amp HAT
    제조업체:
    Pi Supply
    Pi Supply
    모든 Raspberry Pi HATs & Add-ons 열람하기
    일시 품절-다음 입고 날짜는 14/08/2023 (일/월/년) 이며, 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 연락주세요.
    Add to Basket
    수량

    추가완료!

    단가 Each

    ₩82,230.75

    수량한팩당
    1 - 4₩82,230.75
    5 - 9₩81,557.00
    10 +₩81,228.00
    RS 제품 번호:
    122-8185
    제조사 부품 번호:
    JustBoom Amp HAT
    제조업체:
    Pi Supply
    COO (Country of Origin):
    GB

    제정법과 컴플라이언스

    COO (Country of Origin):
    GB

    제품 세부 사항

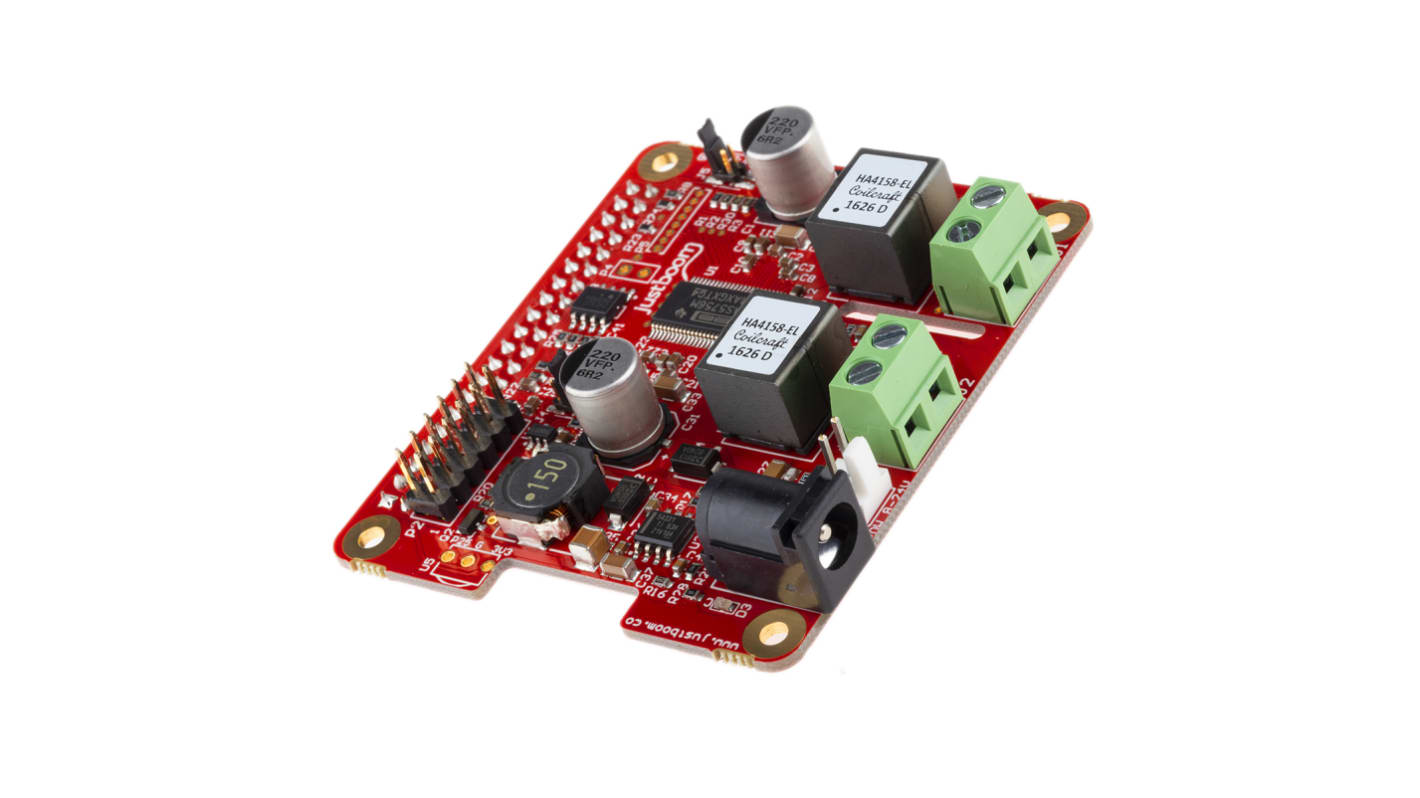

    Pi Supply Raspberry Pi Hat


    The Pi Supply Raspberry Pi HAT is a high-quality audio amplifier specifically designed for the Raspberry Pi. It is as an audio amplifier that includes digital to analogue conversion to eliminate the need for external sound cards or DACs. You can simply stack the plug-and-play add on board (HAT) onto your Raspberry Pi A+, B+, 2B or the new 3B for immediate use. It includes a class-D power amplifier chip with built-in 192kHz/32bit DAC for a peak power output of 2 x 55Watts. The outputs audio over two speaker cable connector blocks accept anything up to 14AWG cable to provide crystal clear audio to either 4 or 8Ohm passive speakers. It also uses the I2S interface for its audio input that reduces CPU load on the Raspberry Pi compared to USB solutions. It is designed to back the power the Raspberry Pi over the 40-pin GPIO header letting you use a single power supply for the entire system.

    Features and Benefits


    Plug and play compatibility for ease of use
    Hardware and software volume control from your Raspberry Pi
    Onboard, hardware jumpers for configuring mute and gain settings (jumpers could optionally be changed with switches)
    Mute/enable with GPIO22 (can be overridden by using jumper J4)
    No soldering required
    Mounting hardware included
    Optional IR receiver included in the package
    Unused GPIO pins still accessible via unpopulated extension header
    Fully HAT compliant
    Full driver support in Raspbian/NOOBS
    Compatible with OSMC/RuneAudio/Volumio/Moode/PiCorePlayer/PiMusicBox/OpenELEC, and others

    Applications


    Multi-room streaming/local audio player
    Interactive art projects with audio requirement
    Arcade table projects with high-quality, immersive audio
    Streaming (either from cloud or network storage) high-definition audio player
    Internet radio player with high-quality stereo audio
    Refit old radios with high-quality streaming audio

    Certifications


    ANSI/ESD S20.20:2014
    BS EN 61340-5-1:2007


    사양

    속성
    Product NameJustBoom Amp HAT Audio Amplifier for Raspberry Pi
    Accessory CategoryAudio
    Form FactorHAT
