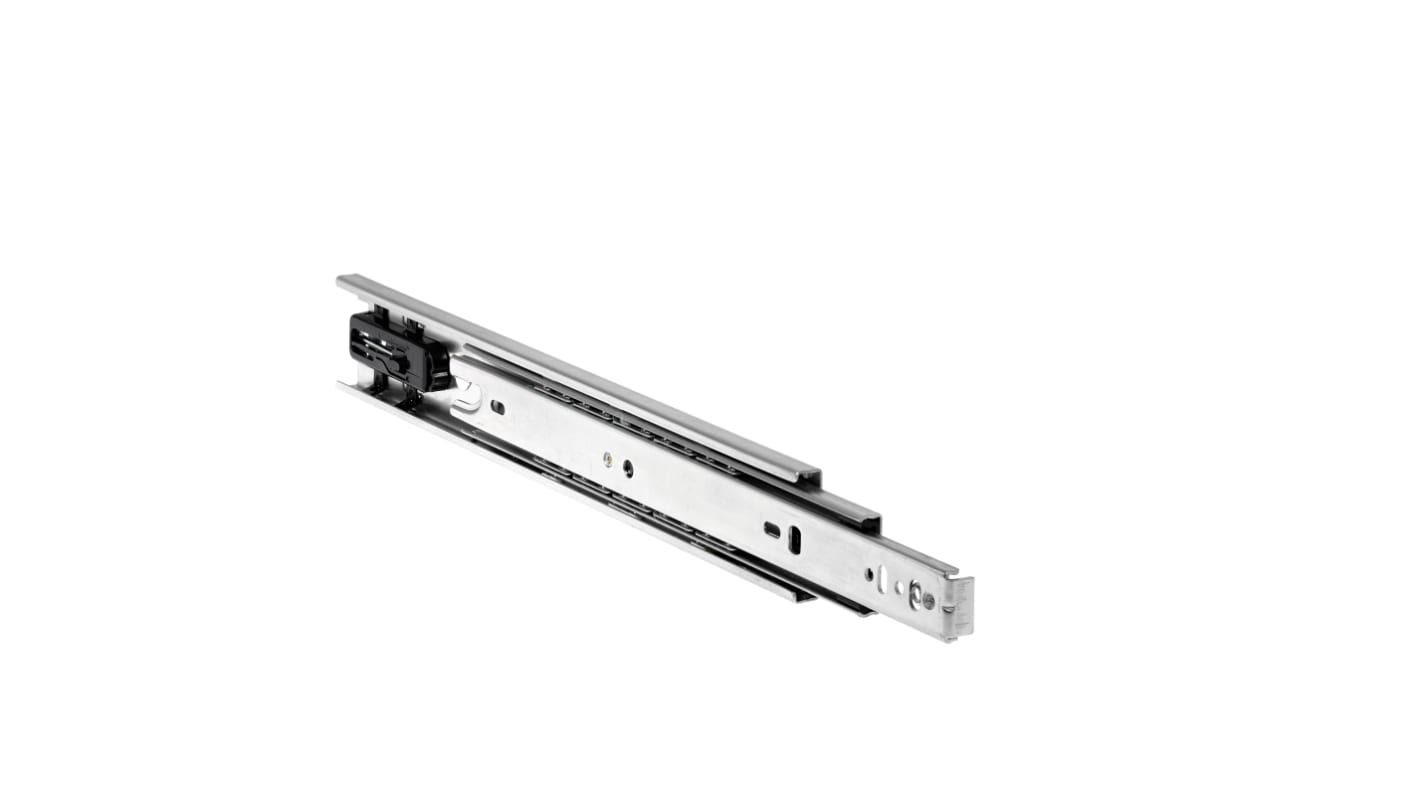

Accuride Telescopic Rail, 550mm Depth, 50kg Max Load
- RS 제품 번호:
- 547-7483
- 제조사 부품 번호:
- DZ3832-0055SC-RS
- 제조업체:
- Accuride
- RS 제품 번호:
- 547-7483
- 제조사 부품 번호:
- DZ3832-0055SC-RS
- 제조업체:
- Accuride
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- MX
제품 세부 사항
Model 3832SC
Closing/opening force 1.4 – 2.7kg per slide
12.7mm slide thickness (14mm with mounting bracket)
Front disconnect
Hold-in
Cam drawer adjust (3.1mm)
12.7mm slide thickness (14mm with mounting bracket)
Front disconnect
Hold-in
Cam drawer adjust (3.1mm)
사양
속성 | 값 |
|---|---|
| Type | Telescopic Slide |
| Maximum Load | 50kg |
| Material | Zinc Plated Steel |
| Depth | 550mm |
| Width | 12.7mm |
| Height | 45.7mm |
| Slide Length Closed | 550mm |
| Hold-In Detent | Yes |
| Series | DZ3832 |
