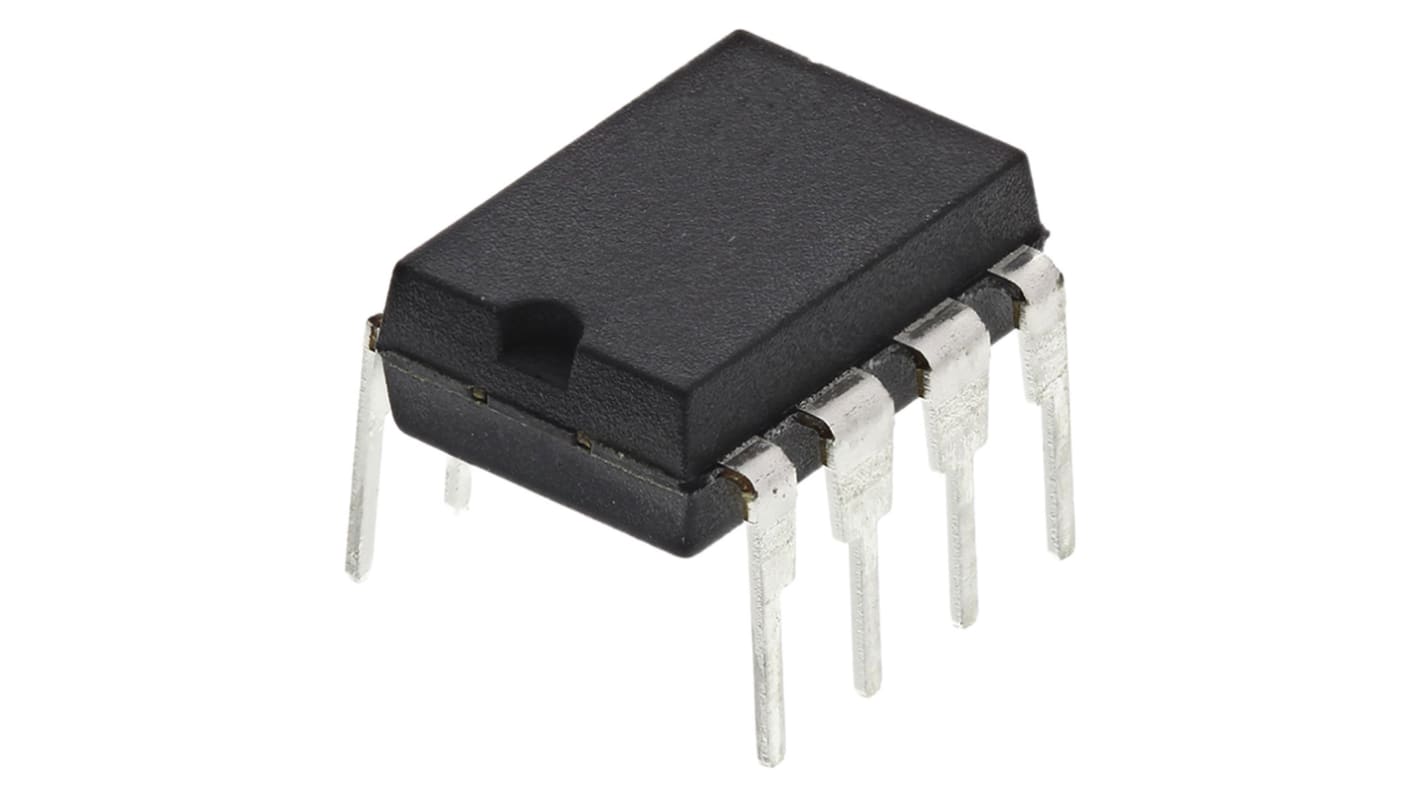

Sanken Electric STR3A155D, PWM Current Mode Controller, Octal-Channel, 74 kHz, 15.3 V, 8-Pin PDIP
- RS 제품 번호:
- 780-2759
- 제조사 부품 번호:
- STR3A155D
- 제조업체:
- Sanken Electric
단종
- RS 제품 번호:
- 780-2759
- 제조사 부품 번호:
- STR3A155D
- 제조업체:
- Sanken Electric
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sanken Electric | |
| Maximum Switching Frequency | 74 kHz | |
| Control Method | Current | |
| Fall Time | 250ns | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 8 | |
| Topology | Flyback | |
| Maximum Duty Cycle | 83% | |
| Dimensions | 9.4 x 6.5 x 3.4mm | |
| Length | 9.4mm | |
| Width | 6.5mm | |
| Height | 3.4mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
모두 선택 | ||
|---|---|---|
브랜드 Sanken Electric | ||
Maximum Switching Frequency 74 kHz | ||
Control Method Current | ||
Fall Time 250ns | ||
Mounting Type Through Hole | ||
Package Type PDIP | ||
Pin Count 8 | ||
Topology Flyback | ||
Maximum Duty Cycle 83% | ||
Dimensions 9.4 x 6.5 x 3.4mm | ||
Length 9.4mm | ||
Width 6.5mm | ||
Height 3.4mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
