onsemi NCP4306AAHZZZADR2G 5 PWM Controller, 1 MHz 35 V 8-Pin, SOIC

RS 제품 번호:: 178-4680
제조사 부품 번호:: NCP4306AAHZZZADR2G
제조업체:: onsemi

onsemi NCP4306AAHZZZADR2G 5 PWM Controller, 1 MHz 35 V 8-Pin, SOIC

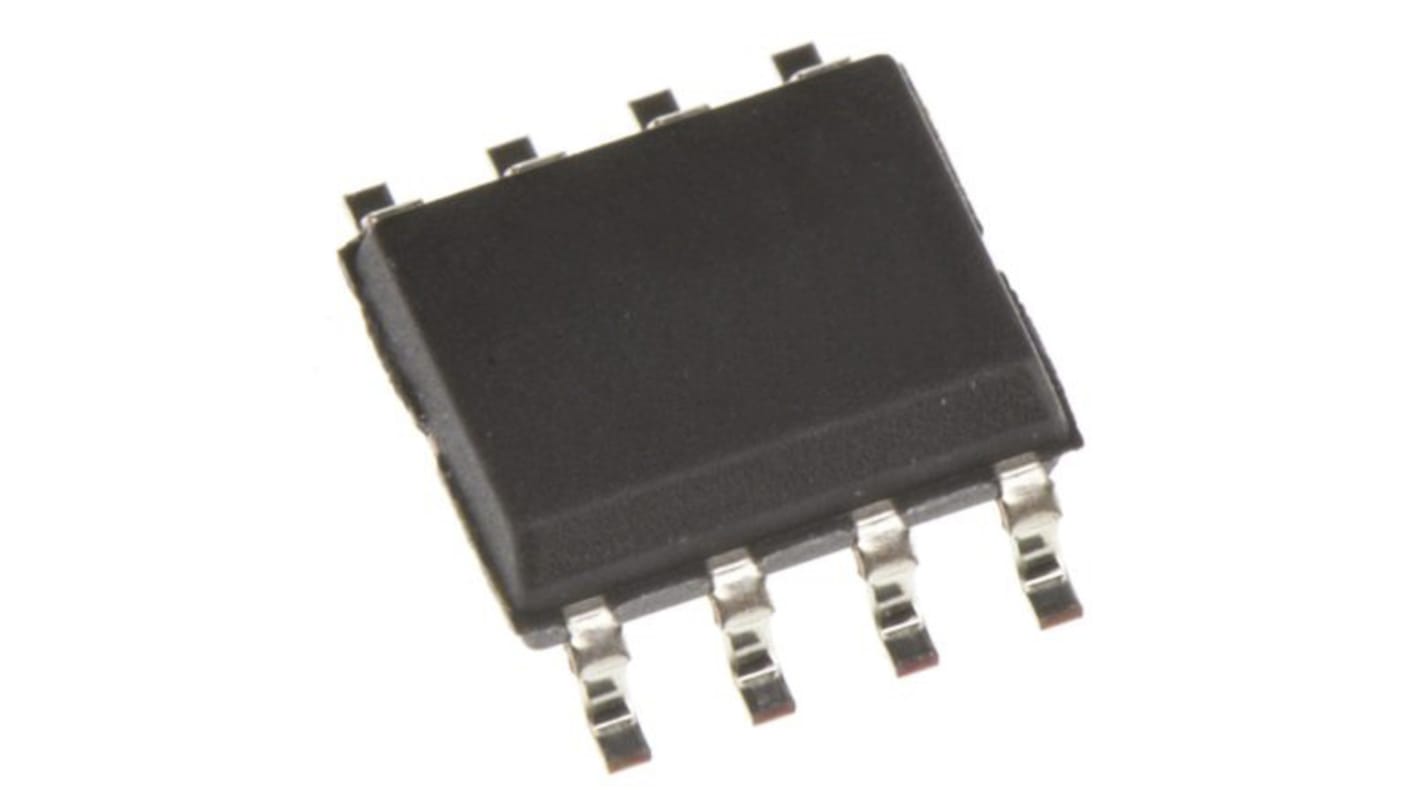

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 10 units)*

₩8,798.40

공급 부족

추가로 2026년 2월 23일 부터 340 개 단위 배송

당사의 현재 재고는 제한중이며, 제조사측에서는 공급 부족을 예상하고 있습니다.

수량	한팩당	한팩당*
10 - 620	₩879.84	₩8,798.40
630 - 1240	₩862.92	₩8,629.20
1250 +	₩849.76	₩8,497.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 178-4680
제조사 부품 번호:: NCP4306AAHZZZADR2G
제조업체:: onsemi

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	onsemi
	Maximum Switching Frequency	1MHz
	Product Type	PWM Controller
	Output Voltage	11 V
	Zero Power Detection	No
	Output Current	7A
	Number of Outputs	5
	Mount Type	Surface
	Minimum Supply Voltage	-0.3V
	Package Type	SOIC
	Pin Count	8
	Maximum Supply Voltage	35V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	125°C
	PWM Controller Type	Secondary Side Synchronous Rectifier
	Height	1.5mm
	Series	NCP
	Standards/Approvals	No
	Length	5mm
	Width	4 mm
	Automotive Standard	No

	모두 선택
	브랜드 onsemi
	Maximum Switching Frequency 1MHz
	Product Type PWM Controller
	Output Voltage 11 V
	Zero Power Detection No
	Output Current 7A
	Number of Outputs 5
	Mount Type Surface
	Minimum Supply Voltage -0.3V
	Package Type SOIC
	Pin Count 8
	Maximum Supply Voltage 35V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 125°C
	PWM Controller Type Secondary Side Synchronous Rectifier
	Height 1.5mm
	Series NCP
	Standards/Approvals No
	Length 5mm
	Width 4 mm
	Automotive Standard No

COO (Country of Origin):: PH

The NCP4306 is high performance driver tailored to control a synchronous rectification MOSFET in switch mode power supplies. Thanks to its high performance drivers and versatility, it can be used in various topologies such as DCM or CCM flyback, quasi resonant flyback, forward and half bridge resonant LLC.

Allows for proper timing of SR MOSFET turn on and turn off

Maximizes conduction time of the MOSFET to increase efficiency

Allows direct connection of CS input to MOSFET drain in flyback applications

Improves performance for applications working in deep CCM

Enters the IC into a low consumption standby mode

Prevents accidental MOSFET turn on or turn off due to ringing

Enhanced Operation for USB-PD Applications

Fast turn off of MOSFET for optimized conduction period

Increased stability coming in and out of Light Load

Wide output operating voltages

onsemi NCP4306AAHZZZADR2G 5 PWM Controller, 1 MHz 35 V 8-Pin, SOIC
