- RS 제품 번호:
- 787-4757
- 제조사 부품 번호:
- 51-156.0255
- 제조업체:
- EAO
일시 품절-다음 입고 날짜는 10/12/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩68,114.576
수량 | 한팩당 |
1 + | ₩68,114.576 |
- RS 제품 번호:
- 787-4757
- 제조사 부품 번호:
- 51-156.0255
- 제조업체:
- EAO
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항

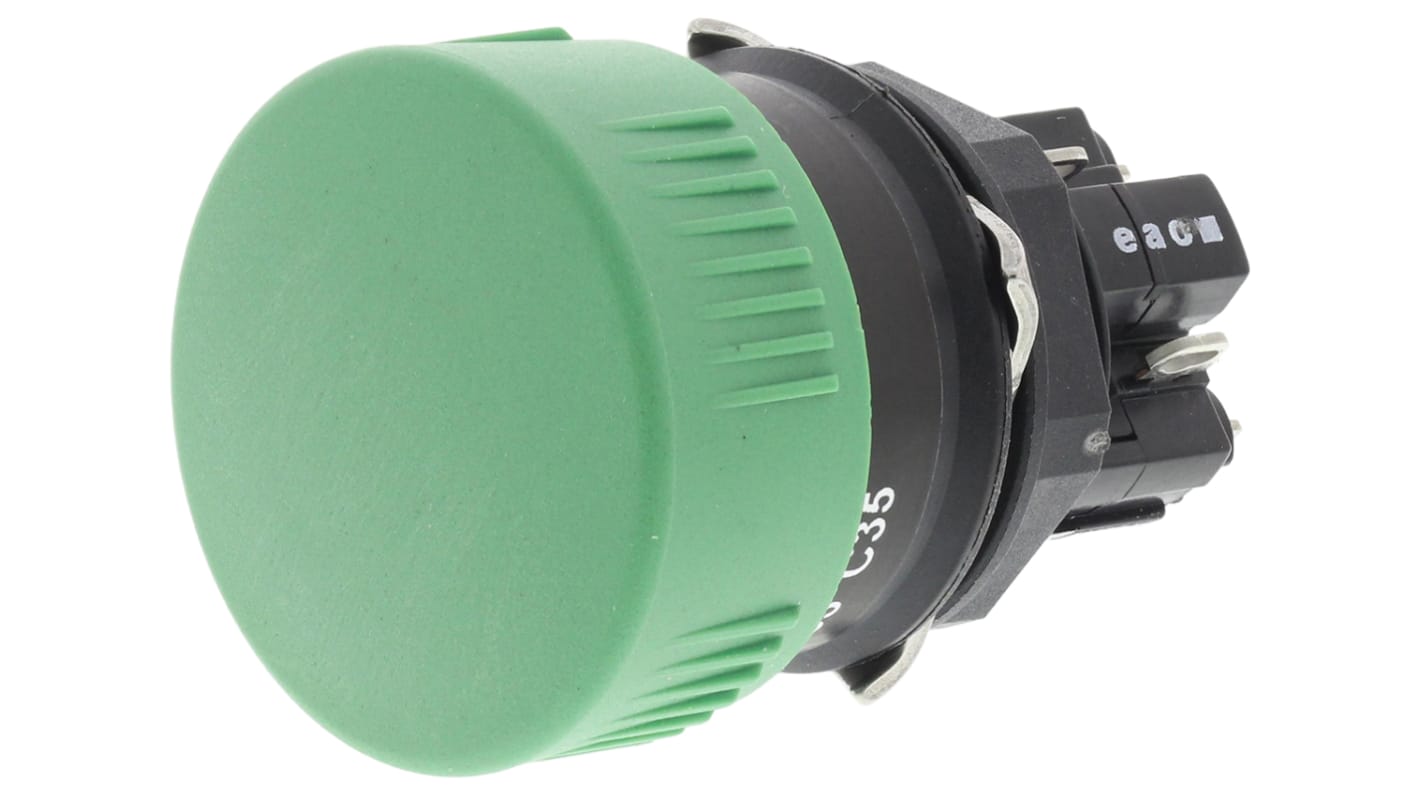

Push Button Switch EAO 51 Series
EAO 51 Series Push Button switches with a range of raised mushroom head colours that feature front of panel protection to IP65
Dimensions: Depth behind panel 18.8mm, panel cut-out 16mm
Contact rating 5 A @ 250 V ac
Momentary switching snap-action
Gold contacts
Contact rating 5 A @ 250 V ac
Momentary switching snap-action
Gold contacts
사양
속성 | 값 |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 16mm |
Mounting Type | Panel Mount |
Push Button Colour | Green |
Contact Configuration | Double Pole Double Throw (DPDT) |
Voltage Rating | 250V ac |
IP Rating | IP65 |
Series | 51 |
Contact Current Rating | 5 A @ 250 V ac |
Contact Material | Gold Plated |
Case Colour | Black |
Manufacturer Part No. | 51-156.0255 |
Terminal Type | Solder Lug |
