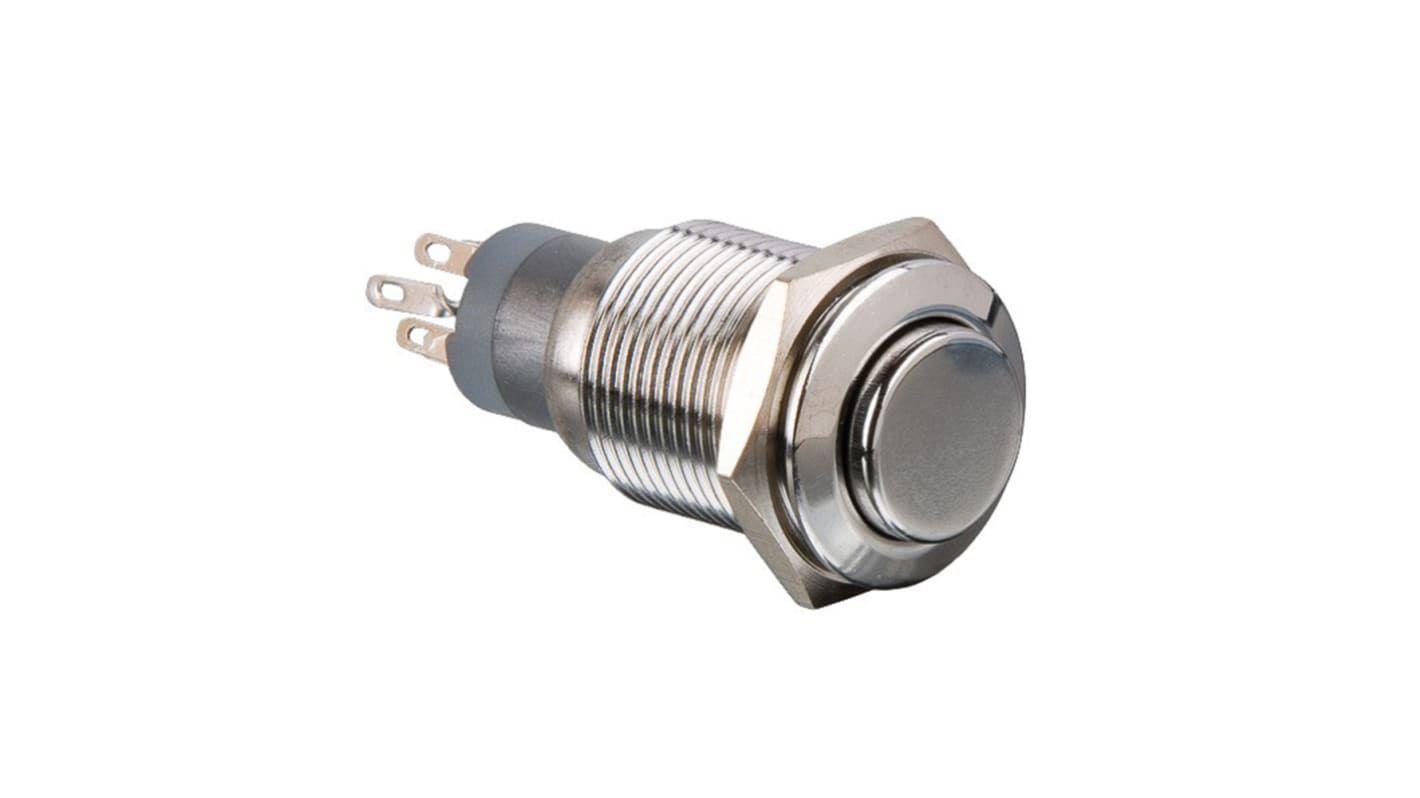

Arcolectric (Bulgin) Ltd Push Button Switch, Momentary, Panel Mount, 16.2mm Cutout, DPDT, 250V ac, IP67
- RS 제품 번호:
- 187-3320
- 제조사 부품 번호:
- MP0045/3D0NN000S
- 제조업체:
- Arcolectric (Bulgin) Ltd
일시 품절-다음 입고 날짜는 22/07/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(40개가 1트레이안에)
₩34,149.57
| 수량 | 한팩당 | Per Tray* |
| 40 - 160 | ₩34,149.57 | ₩1,366,003.507 |
| 200 + | ₩30,734.268 | ₩1,229,398.326 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 187-3320
- 제조사 부품 번호:
- MP0045/3D0NN000S
- 제조업체:
- Arcolectric (Bulgin) Ltd
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
Stainless Steel Double Pole Changeover Switches
16mm diameter
Solder Tag
Polished Stainless Steel body or Anodised versions
Choice of switch action depending on part code:
Part codes containing /1D0 or /3D0 - Momentary action
Part codes containing /1E0 or /3E0 - Latching action
Choice of profile depending on part code prefix:
MP0045/1 Low Profile
MP0045/3 Prominent Button
16mm diameter
Solder Tag
Polished Stainless Steel body or Anodised versions
Choice of switch action depending on part code:
Part codes containing /1D0 or /3D0 - Momentary action
Part codes containing /1E0 or /3E0 - Latching action
Choice of profile depending on part code prefix:
MP0045/1 Low Profile
MP0045/3 Prominent Button
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 16.2mm |
| Mounting Type | Panel Mount |
| Contact Configuration | DPDT |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| IP Rating | IP67 |
| Contact Current Rating | 1 A |
| Contact Material | Brass |
| Contact AC Voltage Rating | 250V |
| Manufacturer Part No. | MP0045/3D0NN000S |
| Terminal Type | Solder Tag |
