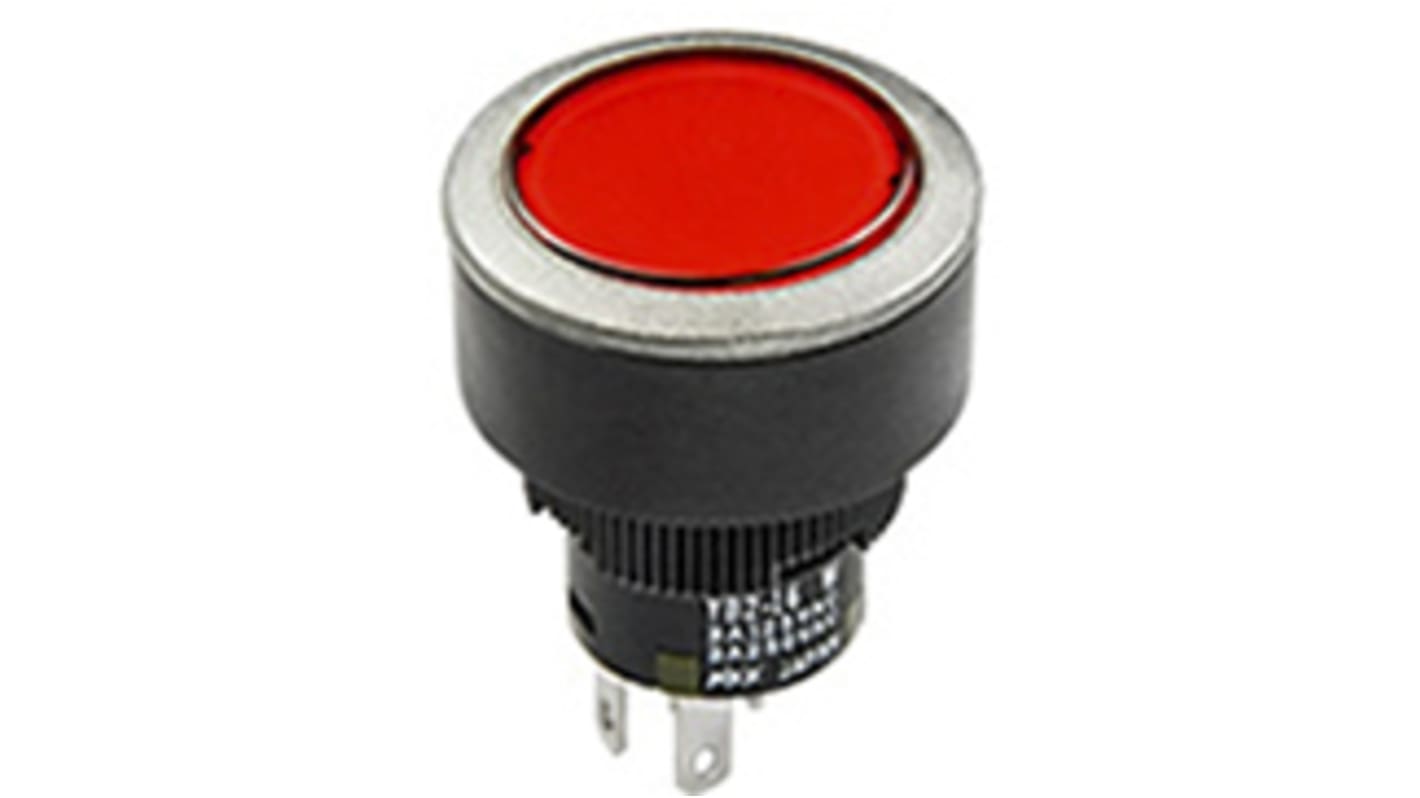

NKK Switches Illuminated Push Button Switch, On-(On), Panel Mount, 15mm Cutout, DPDT, IP65
- RS 제품 번호:
- 181-7079
- 제조사 부품 번호:
- YB225CWCKW01-N-P
- 제조업체:
- NKK Switches
단종
- RS 제품 번호:
- 181-7079
- 제조사 부품 번호:
- YB225CWCKW01-N-P
- 제조업체:
- NKK Switches
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항
3A Power Level & 0.4VA Logic Level, Bushing Mount, LED Illumination, Full Face and Illuminated Ring Options
24mm square and 25mm diameter pushbuttons with the shortest above-panel dimension (1.8mm) in the industry for splash-proof design.
Dust-tight and splash-proof panel seal protection.
Tamper-resistant 18mm square and 19mm diameter actuators.
24mm square and 25mm diameter pushbuttons with the shortest above-panel dimension (1.8mm) in the industry for splash-proof design.
Dust-tight and splash-proof panel seal protection.
Tamper-resistant 18mm square and 19mm diameter actuators.
사양
속성 | 값 |
|---|---|
| Switch Operation | On-(On) |
| Illuminated | Yes |
| Panel Cut Out Diameter | 15mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Red |
| Contact Configuration | DPDT |
| Push Button Style | Round |
| IP Rating | IP65 |
| Contact Current Rating | 3 A |
| Contact Material | Silver |
| Manufacturer Part No. | YB225CWCKW01-N-P |
| Contact DC Voltage Rating | 30V |
| Case Colour | Black |
| Contact AC Voltage Rating | 125V |
| Terminal Type | Quick Connect, Solder Lug |
