- RS 제품 번호:
- 153-4155
- 제조사 부품 번호:
- NP8E2D203QE
- 제조업체:
- C & K
일시 품절-다음 입고 날짜는 08/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(50개가 1트레이안에)
₩39,526.084
수량 | 한팩당 | Per Tray* |
50 - 200 | ₩39,526.084 | ₩1,976,304.175 |
250 + | ₩35,574.338 | ₩1,778,673.758 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 153-4155
- 제조사 부품 번호:
- NP8E2D203QE
- 제조업체:
- C & K
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항

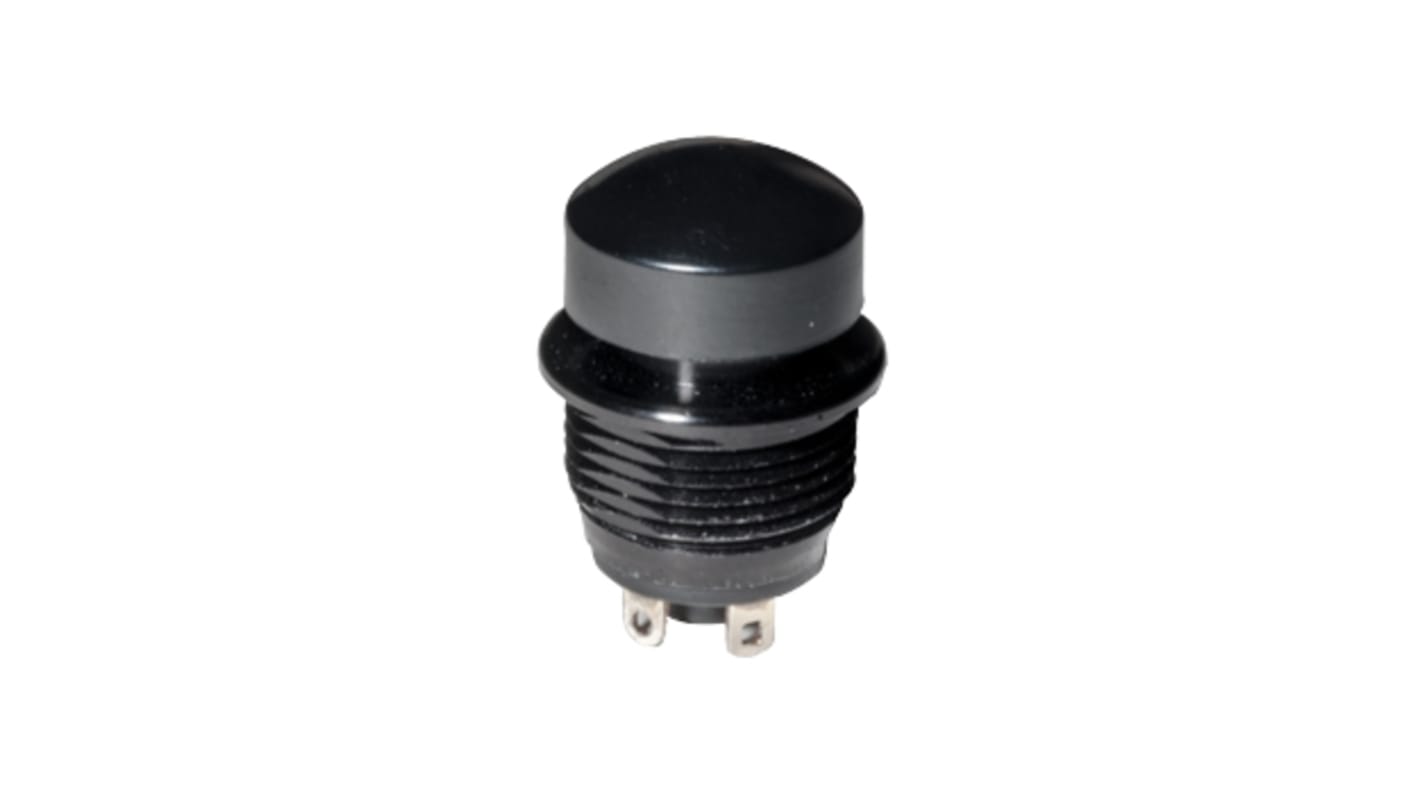

C&K Push Button Switch
The C&K push button is a single pole double throw (SPDT) momentary switch. It is a simple type of push button which is used when some kind of action is required to be carried out in a machine. The switch is available with flat or shaped surfaces. The current rating for this switch is 6A.
Features and Benefits
• Copper alloy is used as contact material
• Service temperature ranges between -40°C and 85°C
• Solder lug terminal type
• Through panel mount
• Voltage rating is 100VDC
• Without cap actuator
• Service temperature ranges between -40°C and 85°C
• Solder lug terminal type
• Through panel mount
• Voltage rating is 100VDC
• Without cap actuator
Applications
• Commercial Industry
• Harsh environment
• Consumer and power switching
• Transportation
• Military
• Harsh environment
• Consumer and power switching
• Transportation
• Military
Certifications
• CULus
• ENEC
• IP68 rating
• UL approved
• ENEC
• IP68 rating
• UL approved
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 12.3mm |
Mounting Type | Panel Mount |
Contact Configuration | SPDT |
Voltage Rating | 32V dc |
IP Rating | IP68 |
Contact Current Rating | 5 A @ 32 V dc |
Contact Material | Copper Alloy |
Case Colour | Black |
Manufacturer Part No. | NP8E2D203QE |
Contact DC Voltage Rating | 32V |
Panel Cut Out Height | 11.65mm |
Terminal Type | Solder Lug |
