RS PRO GCX Series Push Button Switch, Snap Action, Panel, 22.5 mm Cutout, 1 NO/1 NC, IP20, IP65, 250 V 400 V

모든 Push Button Switches 열람하기

Subtotal (1 Box of 1 unit)*

₩30,606.40

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 1월 26일 부터 52 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
Box(es)
Per Box
1 +₩30,606.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
102-719
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Actuator Colour

Red

Product Type

Push Button Switch

Switch Operation

Snap Action

Illuminated

No

Panel Cutout Size

22.5 mm

Series

GCX

Mount Type

Panel

Contact Configuration

1 NO/1 NC

Terminal Type

Screw

IP Rating

IP20, IP65

Actuator Style

Round

Minimum Operating Temperature

-25°C

Contact AC Voltage

400V

Contact DC Voltage

250V

Maximum Operating Temperature

70°C

Standards/Approvals

RoHSComplianceCertifications CE UKCA

Width

40 mm

Height

90mm

Length

40mm

COO (Country of Origin):
IT

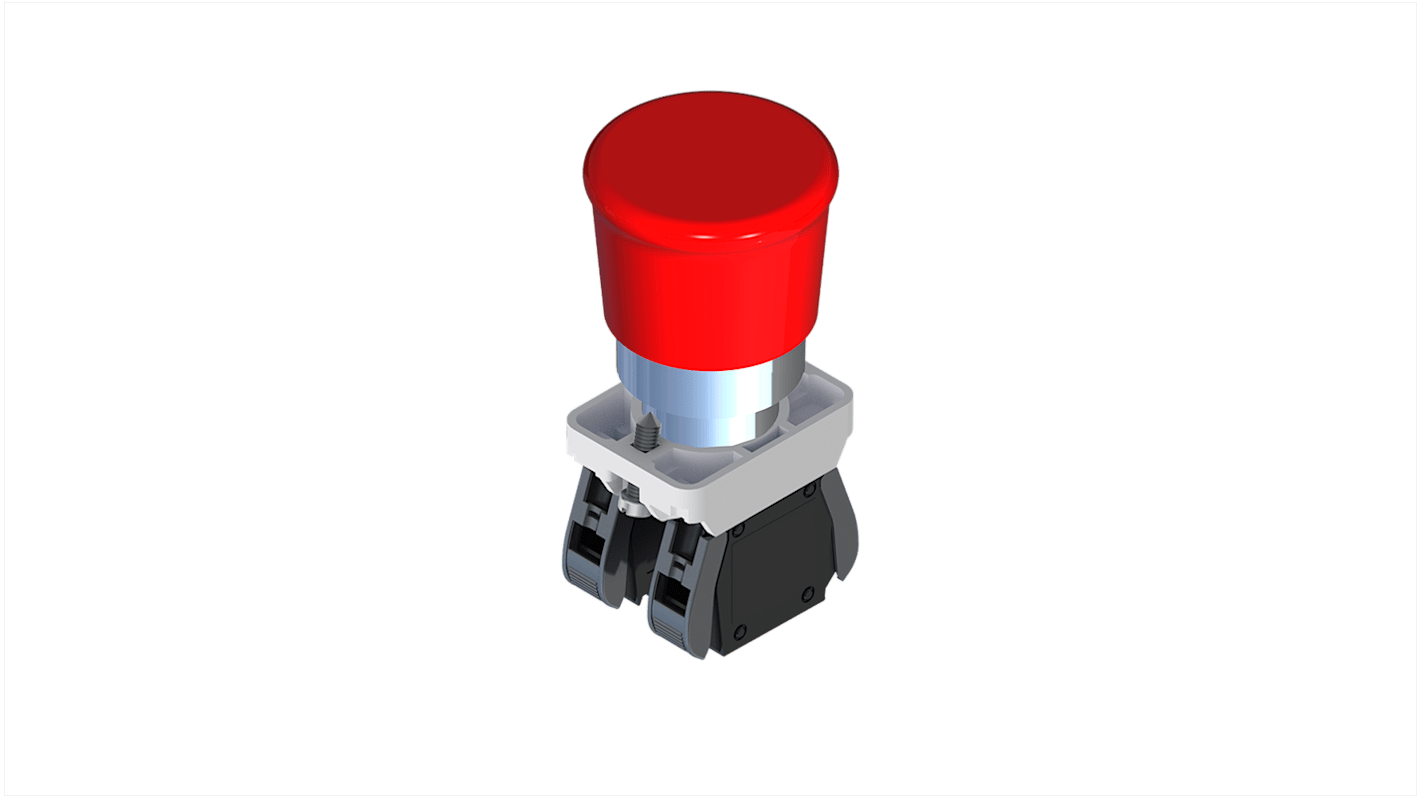

RS PRO Push Button Switch - Snap Action, 22.5mm Cut-out, 1NO+1NC


Unlock reliability and global compliance with the RS PRO push button switch, designed to meet all your industrial control needs. With a 22.5mm cut-out and intuitive snap action mechanism, this mushroom-style pushbutton is engineered for ultimate ease of use and installation, delivering top performance wherever it’s deployed

Features and Benefits


  • Contact Configuration: 1 NC + 1 NO, ensuring versatile operation for various applications

  • Bright red actuator colour for high visibility, enhancing safety

  • Round actuator, ergonomic, and easy to operate, especially in emergency

  • 22.5mm cut-out

  • Ingress Protection: IP20 and IP65 ratings mean this switch can handle challenging environments, offering protection against dust, water splashes, and more

    • Why Choose the RS PRO Push Button Switch?


  • Global Compliance: Meets the stringent EN / IEC 60947-5-1 standard.

  • Quick setup with a latch mechanism, plus a pull-to-release function for added convenience.

  • Perfect for a wide range of industrial applications, offering both Normally Open (NO) and Normally Closed (NC) contact configurations.

    • Package Includes:


  • 1 x Pushbutton

  • 1 x Support base

  • 2 x Electrical contacts

    • Applications


  • Building and Public Works

  • Industrial Controls

  • Control System

  • Lighting Controls

  • Medical Equipment
