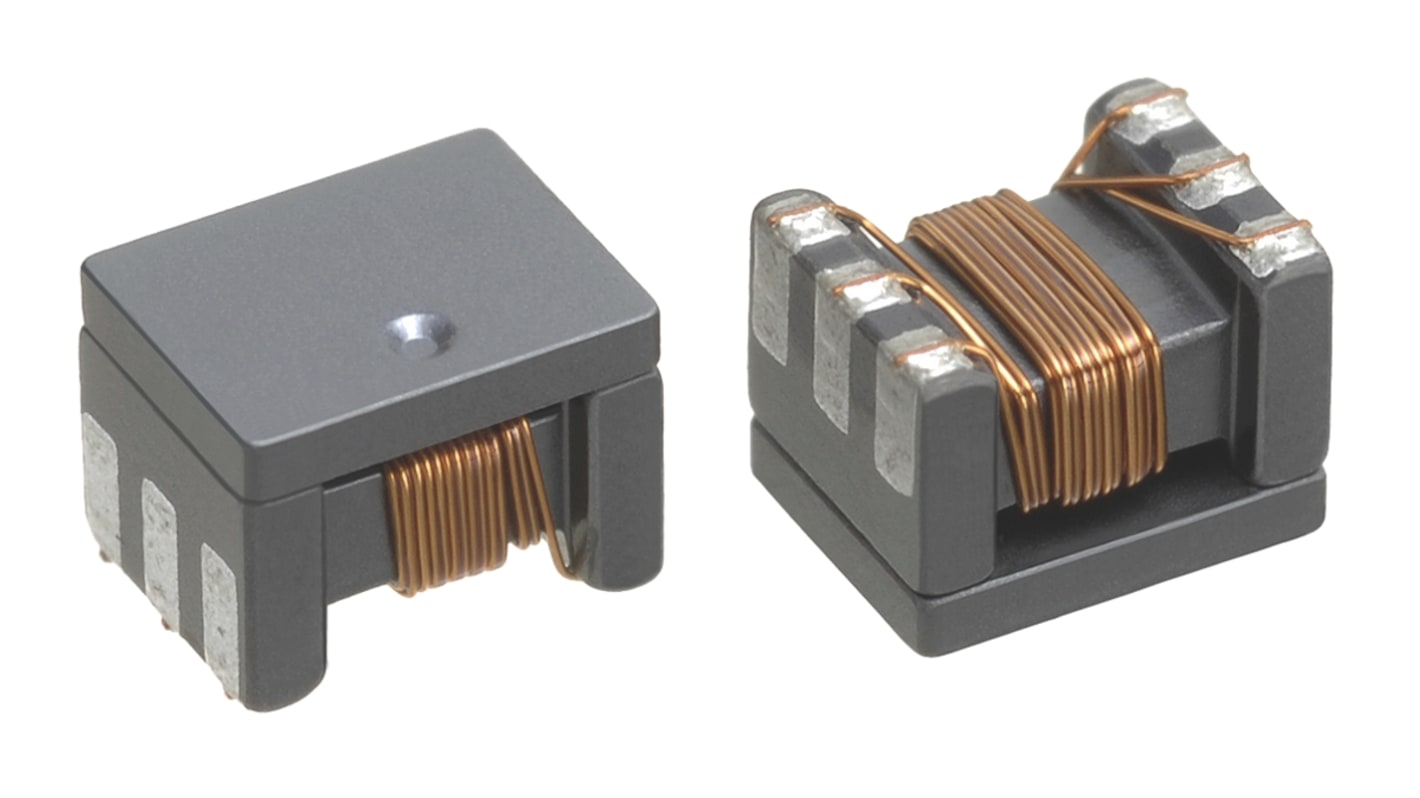

TDK Surface Mount Pulse Transformer 1:10.2 Turns Ratio, 7μH Prim. Inductance, 0.5Ω Prim. Resistance

RS 재고 번호:: 831-9315
제조 부품 번호:: ATB322524-0110
제조업체:: TDK

TDK Surface Mount Pulse Transformer 1:10.2 Turns Ratio, 7μH Prim. Inductance, 0.5Ω Prim. Resistance

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Pulse Transformers 열람하기

사용할 수 없음

RS는 더 이상 이 제품을 입고하지 않습니다.

RS 재고 번호:: 831-9315
제조 부품 번호:: ATB322524-0110
제조업체:: TDK

사양

기술적 참조

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	TDK
	Primary Inductance	7µH
	Primary DC Resistance	0.5Ω
	Secondary DC Resistance	60Ω
	Turns Ratio	1:10.2
	Mounting Type	Surface Mount
	Leakage Inductance	0.4µH
	Dimensions	3.2 x 2.5 x 2.4mm
	Depth	2.4mm
	Length	3.2mm
	Width	2.5mm
	Maximum Temperature	+85°C
	Minimum Temperature	-40°C

	모두 선택
	브랜드 TDK
	Primary Inductance 7µH
	Primary DC Resistance 0.5Ω
	Secondary DC Resistance 60Ω
	Turns Ratio 1:10.2
	Mounting Type Surface Mount
	Leakage Inductance 0.4µH
	Dimensions 3.2 x 2.5 x 2.4mm
	Depth 2.4mm
	Length 3.2mm
	Width 2.5mm
	Maximum Temperature +85°C
	Minimum Temperature -40°C

TDK Balun Transformers SMD, ATB Series

Chip balun transformer ATB3225 series have low insertion loss and good balance parameters
The case sizes is smaller than conventional baluns
The frequency band width for ATB3225-75011CT is 5 to 200MHz, for ATB3225-75032CT is 5 to 100MHz, and for ATB3225-75034CT is 1 to 100MHz
Conforms to the RoHS Directive
Application in cable modem

ATB2012 series are developed for impedance systems, Impedance ratio is 1:1
ATB2012-50011 and ATB2012E-50011M are for 50Ω impedance and ATB2012-75011 and ATB2012E-75011M are for 75Ω impedance
The frequency band width for ATB2012-50011 is 40MHz to 860MHz (Standard IL = 1.0dB), for ATB2012E-50011M is 400MHz to 1.8GHz (Standard IL =1.0dB), for ATB2012-75011is 50MHz to 1.2GHz (Standard IL = 0.8dB), and for ATB2012E-75011M is 400MHz to 1.8GHz (Standard IL = 1.0dB)
Applications include TV and mobile device tuners (DVB-T/H, ISDB-T, etc.) and STB / tuner power divider
