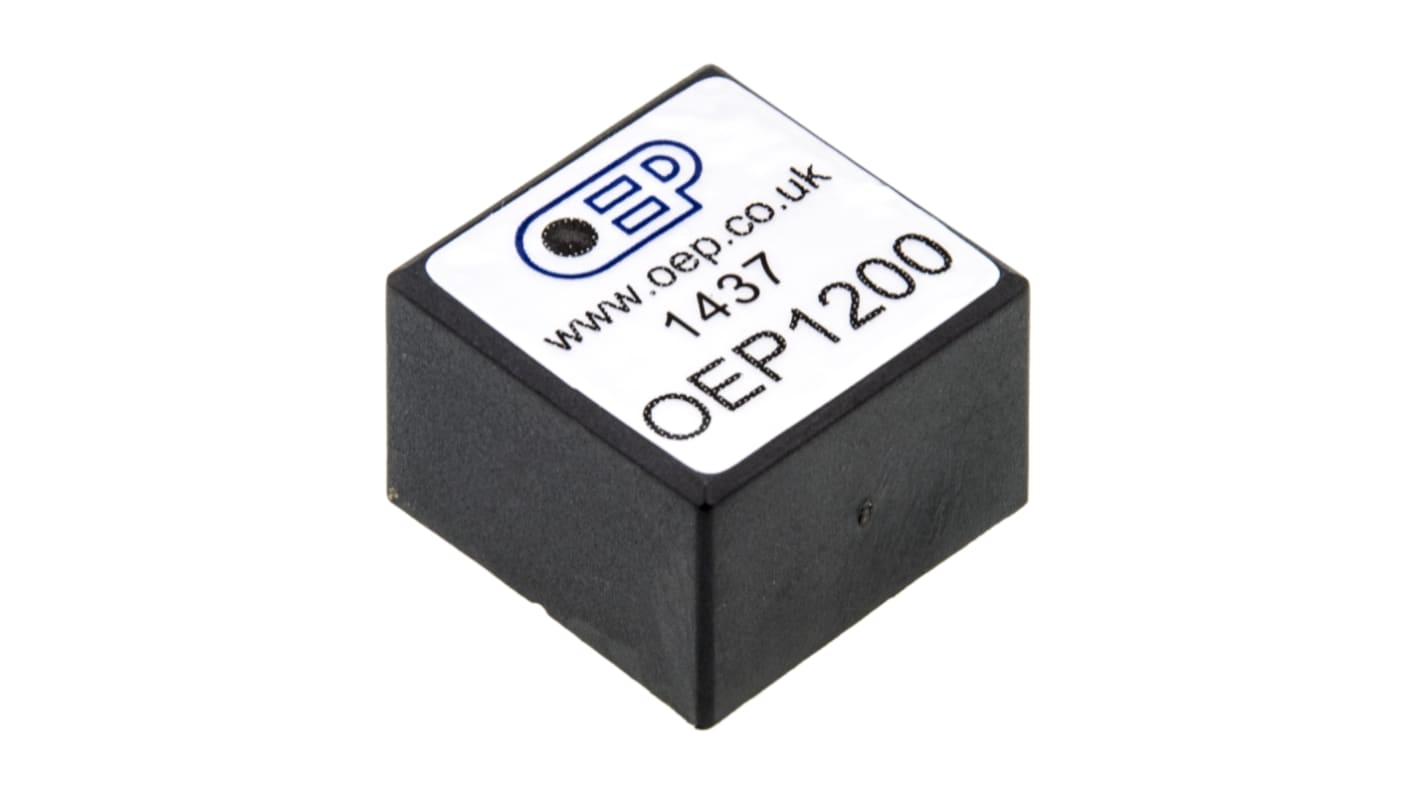

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 4.15H Prim. Inductance, 65Ω Prim. Resistance
- RS 제품 번호:
- 210-6223
- 제조사 부품 번호:
- OEP1200
- 제조업체:
- OEP
75 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩16,405.524
| 수량 | 한팩당 |
| 1 - 24 | ₩16,405.524 |
| 25 - 99 | ₩15,946.701 |
| 100 + | ₩15,291.239 |
- RS 제품 번호:
- 210-6223
- 제조사 부품 번호:
- OEP1200
- 제조업체:
- OEP
제정법과 컴플라이언스
- COO (Country of Origin):
- CN
제품 세부 사항
OEP, Line Isolating Transformers
From OEP, this selection of compact encapsulated PCB and surface mount line isolating transformers are for use in data transmission applications. They are approved and certified for use in telecommunications circuits required to meet BS6305 (Speech and Non-Speech Class A) providing the line hold current is diverted from the windings by a choke or other electronic means. Constructed from resin encapsulated in a glass filled nylon box, these line isolating transformers are flame retardant to UL94-V0 requirements.
Note
Stock no. 210-6273 is a surface mount device.
Standards
BS415; EN60950; EN41003
Approvals
BABT
Approvals
BABT
Standards
BS415; EN60950; EN41003
사양
속성 | 값 |
|---|---|
| Primary Inductance | 4.15H |
| Primary DC Resistance | 65Ω |
| Secondary DC Resistance | 65Ω |
| Insertion Loss | 1.3dB |
| Turns Ratio | 1:1 |
| Mounting Type | Through Hole |
| Leakage Inductance | 20mH |
| Dimensions | 18 x 18 x 12.5mm |
| Depth | 12.5mm |
| Length | 18mm |
| Width | 18mm |
| Maximum Operating Frequency | 4kHz |
| Minimum Operating Frequency | 300Hz |
| Minimum Temperature | 0°C |
| Maximum Temperature | +70°C |
