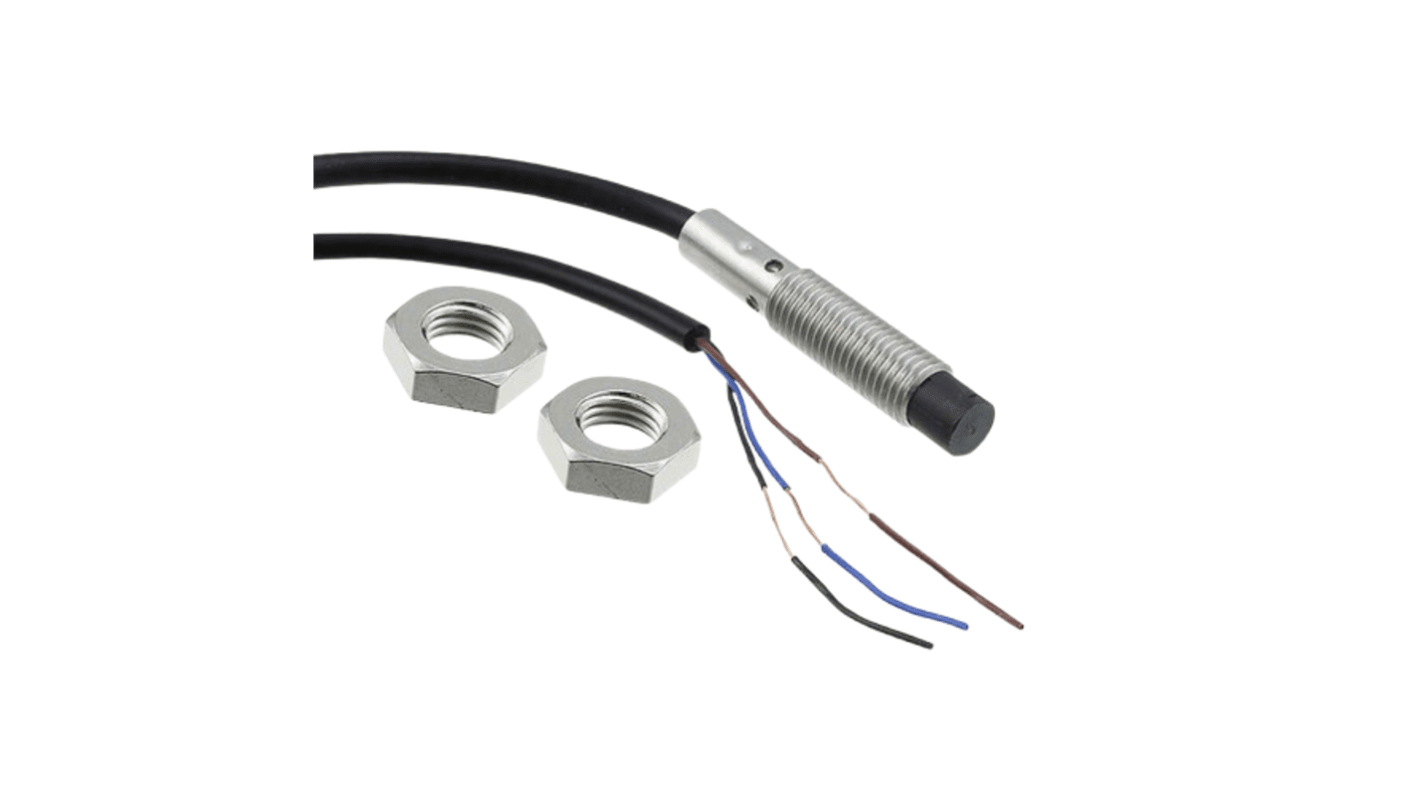

Omron Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NC, 12 → 24 V dc

RS 제품 번호:: 805-4973
제조사 부품 번호:: E2B-S08KN04-WP-B2 5M
제조업체:: Omron

Omron Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NC, 12 → 24 V dc

Subtotal (1 unit)*

₩61,588.80

재고있음

추가로 2025년 12월 12일 부터 5 개 단위 배송
추가로 2025년 12월 19일 부터 19 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩61,588.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 805-4973
제조사 부품 번호:: E2B-S08KN04-WP-B2 5M
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Thread Size	M8
	Sensor Technology	Inductive
	Body Style	Threaded Barrel
	Detection Range	4 mm
	Digital Switching Output Type	PNP
	Output Function	NC
	Connection Type	Pre-Cabled
	Cable Length	2m
	Supply Voltage	12 → 24 V dc
	IP Rating	IP67
	Length	42mm
	Mounting Type	Non-Flush
	Housing Material	Stainless Steel
	Maximum DC Voltage	30V
	Diameter	M8
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+70°C
	Maximum Switching Frequency	1kHz
	Depth	6.6mm
	Shielding	Unshielded
	Short Circuit Overload Protection	Yes
	Series	E2B
	Switching Frequency	1 kHz
	Reverse Polarity Protection	Yes
	Switching Current	200 mA

	모두 선택
	브랜드 Omron
	Thread Size M8
	Sensor Technology Inductive
	Body Style Threaded Barrel
	Detection Range 4 mm
	Digital Switching Output Type PNP
	Output Function NC
	Connection Type Pre-Cabled
	Cable Length 2m
	Supply Voltage 12 → 24 V dc
	IP Rating IP67
	Length 42mm
	Mounting Type Non-Flush
	Housing Material Stainless Steel
	Maximum DC Voltage 30V
	Diameter M8
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +70°C
	Maximum Switching Frequency 1kHz
	Depth 6.6mm
	Shielding Unshielded
	Short Circuit Overload Protection Yes
	Series E2B
	Switching Frequency 1 kHz
	Reverse Polarity Protection Yes
	Switching Current 200 mA

Omron E2B Series Proximity Sensor, 4mm Detection Range, M8 Thread size - E2B-S08KN04-WP-B2 5M

This inductive proximity sensor is designed for integration in diverse automation applications. Featuring an M8 threaded barrel with robust stainless steel housing, the sensor measures 42mm in length and offers a 4mm detection range. With an IP67 rating, it is well-equipped for wet environments, ensuring consistent performance and reliability in tough conditions.

Features & Benefits

• Designed for non-flush mounting to improve sensing accuracy
• Operates within a supply voltage range of 10 to 30 V DC
• Equipped with PNP switching output for streamlined connectivity
• Unshielded construction minimises interference in typical setups
• 360° visible LED indicator for clear operational status

Applications

• Utilised in assembly lines for object detection
• Implemented in conveyor systems to monitor products
• Essential for position sensing in robotic arms
• Used in packaging machinery for material handling
• Integrated into safety systems for proximity monitoring

What is the advantage of the 4mm detection range for this sensor?

The 4mm detection range allows precise proximity sensing for small to medium-sized objects, making it suitable for high-density applications like assembly lines.

How does the IP67 rating enhance the sensor's usability?

The IP67 rating ensures complete protection against dust ingress and temporary water immersion, enabling reliable operation in challenging industrial environments.

Can this sensor be used in low-temperature applications?

Yes, it can operate effectively in temperatures as low as -25°C, making it ideal for cold storage facilities or outdoor applications in winter conditions.

Note

See typically (RS stock no. 7788757) for connectors compatible with the plug-in sensors
