RS PRO Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NO, 10 → 30 V dc
- RS 제품 번호:
- 252-2037
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
단가 개당**
₩126,872.20
40 <재고있음> 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩126,872.20 |
| 10 - 49 | ₩120,520.40 |
| 50 + | ₩99,190.00 |
**다른 단위에 대한 가격 표시
- RS 제품 번호:
- 252-2037
- 제조업체:
- RS PRO

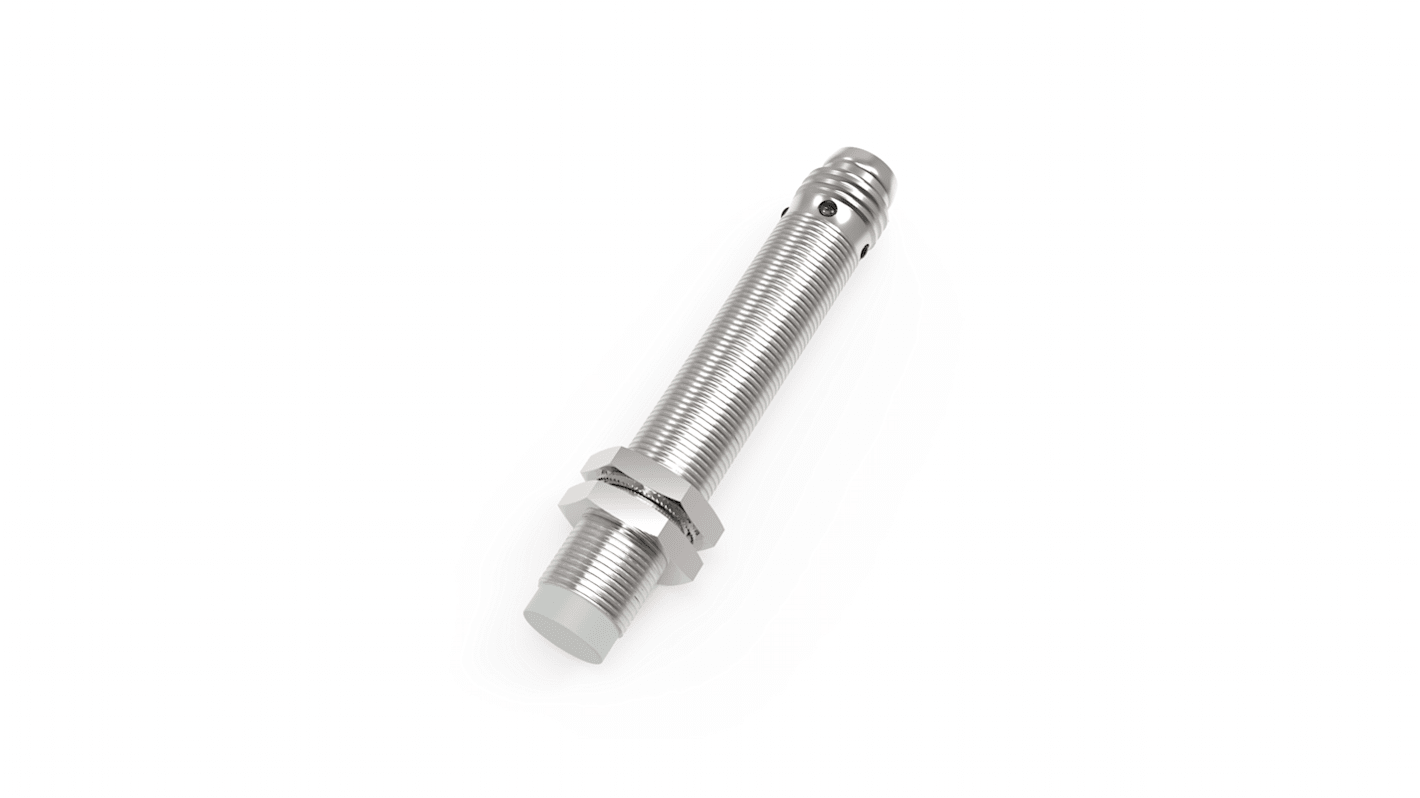

RS PRO Inductive Proximity Sensor, Cylinder, Stainless Steel, PNP Output, IP67.
From RS PRO this is an impressive Inductive Proximity Sensor giving you safe and reliable non-contact detection specifically targeted for metallic object detection. The inductive sensor providing a 4 mm sensing distance, IP67 ingress protection from dust and liquid, including reverse polarity, short-circuit and overload protection, all housed within stainless steel. Included are Yellow LED output indication and M8 connector.
FEATURES & BENEFITS.
• Cylinder shaped sensor, size M8.
• ASIC Design.
• Metallic target detection.
• Non-Flush mounting.
• 4 mm distance detection.
• PNP NO output.
• 10 to 30 V dc supply voltage.
• Reverse polarity, Short-Circuit and Overload protection.
• Yellow LED output indication.
• 1000 Hz Switching frequency.
• 10 to 50 Hz Vibration resistance.
• Stainless Steel Housing.
• M8 connection.
• IP67 protection.
• CE Compliant.
APPLICATIONS.
The RS PRO Inductive Proximity Sensor is the perfect option for safe non-contact metallic target detection with 4 mm inductive sensing distance.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
속성 | 값 |
|---|---|
| Thread Size | M8 |
| Sensor Technology | Inductive |
| Detection Range | 4 mm |
| Body Style | Threaded Barrel |
| Output Function | NO |
| Digital Switching Output Type | PNP |
| Connection Type | M8 |
| Supply Voltage | 10 → 30 V dc |
| Length | 54mm |
| IP Rating | IP67 |
| Mounting Type | Non-Flush |
| Housing Material | Stainless Steel |
| Maximum DC Voltage | 30V |
| Minimum Operating Temperature | -25°C |
| Short Circuit Overload Protection | Yes |
| Maximum Switching Frequency | 1kHz |
| Shielding | Unshielded |
| Switching Current | 150 mA |
| Standards Met | CE |
| Switching Frequency | 1 kHz |
| Maximum Operating Temperature | +70°C |
| Reverse Polarity Protection | Yes |
- COO (Country of Origin):
- CN
