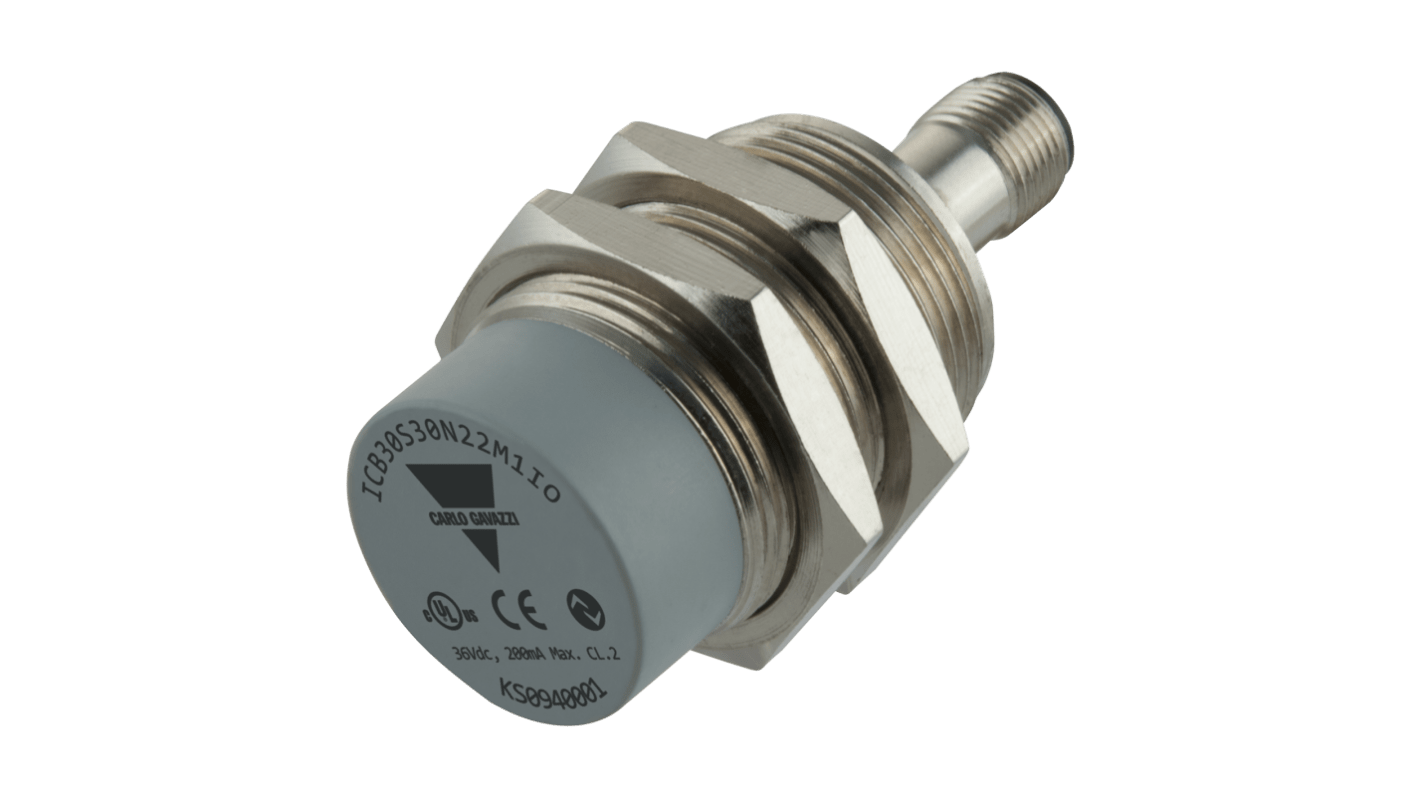

Carlo Gavazzi Inductive Barrel Proximity Sensor, M30, 22 mm Detection, IO-Link NO/NC, 10 → 36 V dc

The Carlo Gavazzi inductive proximity sensor features an M30 nickel-plated brass body and an M12 plug. It has a sensing distance (Sn) of 22mm and is designed for non-flush mounting. This short-body sensor supports NPN/PNP/Push-pull output configurations and can be set for Normally Open (NO) or Normally Closed (NC) operation. It operates within a supply voltage range of 10 to 36VDC, with a maximum output current of 200 mA and a maximum switching frequency of 1 kHz. The operating temperature range is -40°C to +70°C, and it has an IP67 rating.

Rated operating distance 22 mm
Installation type Non-flush
Diameter M30
Output type PNP/NPN
Output function Programmable/configurable
Connection type Connector M12
Housing type Cylindrical threaded barrel
Housing material Metal
Rated power supply 10 V to 36 V
