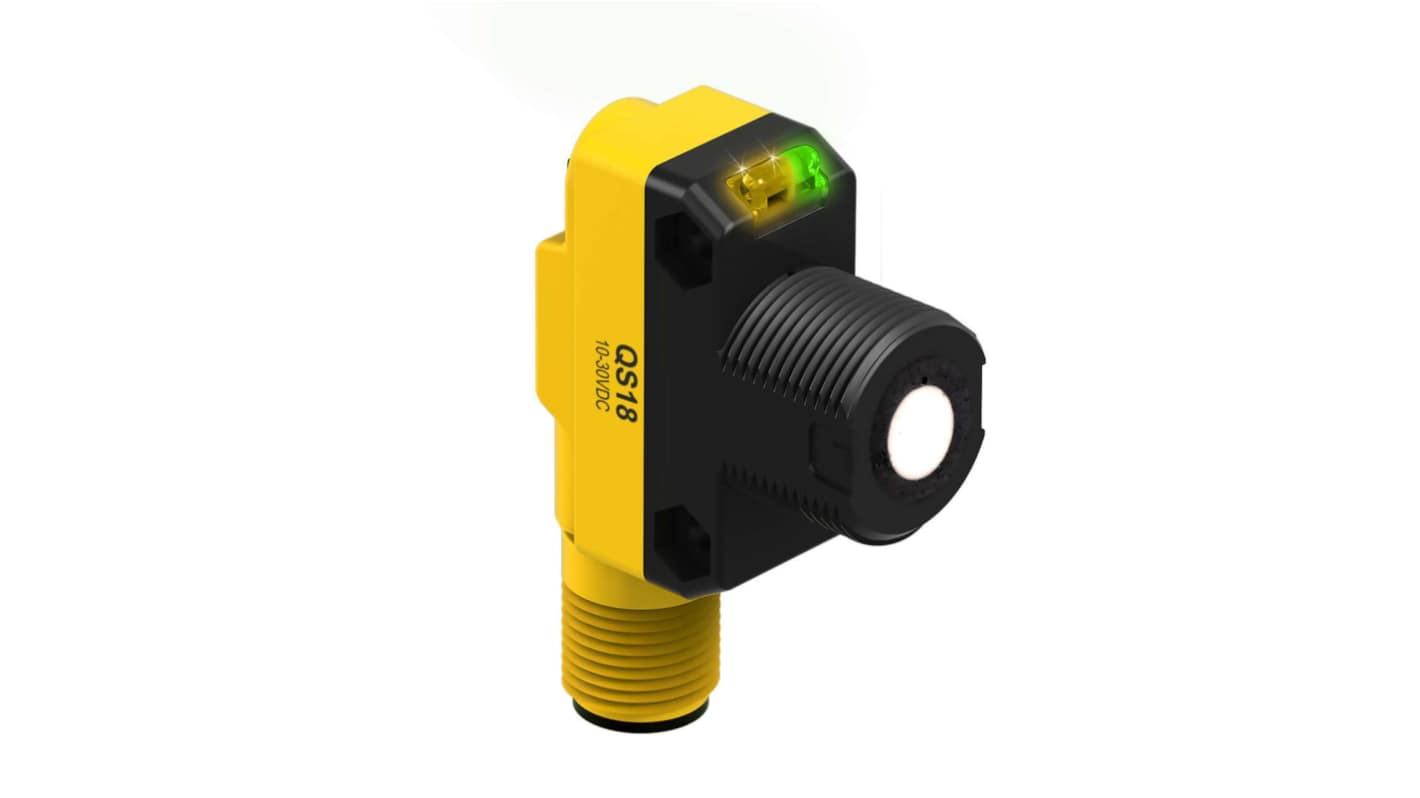

Banner Ultrasonic Rectangular Proximity Sensor, M18, 50 → 500 mm Detection, PNP NO/NC, 12 → 30 V dc
- RS 재고 번호:
- 294-566
- 제조 부품 번호:
- QS18UPAEQ8
- 제조업체:
- Banner
Subtotal (1 unit)*
₩256,766.64
일시적 품절
- 2026년 3월 04일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 + | ₩256,766.64 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 294-566
- 제조 부품 번호:
- QS18UPAEQ8
- 제조업체:
- Banner
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Banner | |
| Thread Size | M18 | |
| Sensor Technology | Ultrasonic | |
| Detection Range | 50 → 500 mm | |
| Body Style | Rectangular | |
| Output Function | NO/NC | |
| Digital Switching Output Type | PNP | |
| Connection Type | Cable | |
| Cable Length | 2m | |
| Supply Voltage | 12 → 30 V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 Banner | ||
Thread Size M18 | ||
Sensor Technology Ultrasonic | ||
Detection Range 50 → 500 mm | ||
Body Style Rectangular | ||
Output Function NO/NC | ||
Digital Switching Output Type PNP | ||
Connection Type Cable | ||
Cable Length 2m | ||
Supply Voltage 12 → 30 V dc | ||
- COO (Country of Origin):
- CN
The Banner Ultrasonic sensor is designed to facilitate precise sensing in challenging conditions. This miniature sensor utilises advanced TEACH-mode programming, eliminating complex adjustments and allowing for seamless integration. With a compact housing and robust encapsulated design, it is tailored for a variety of environments, ensuring reliable operation between –20 °C to +60 °C.
The sensor is configurable for normally open or normally closed operation to suit specific applications
Support for unterminated cable options enhances flexibility during installation
The device offers a fast response time allowing for rapid detection of target positions
Support for unterminated cable options enhances flexibility during installation
The device offers a fast response time allowing for rapid detection of target positions
