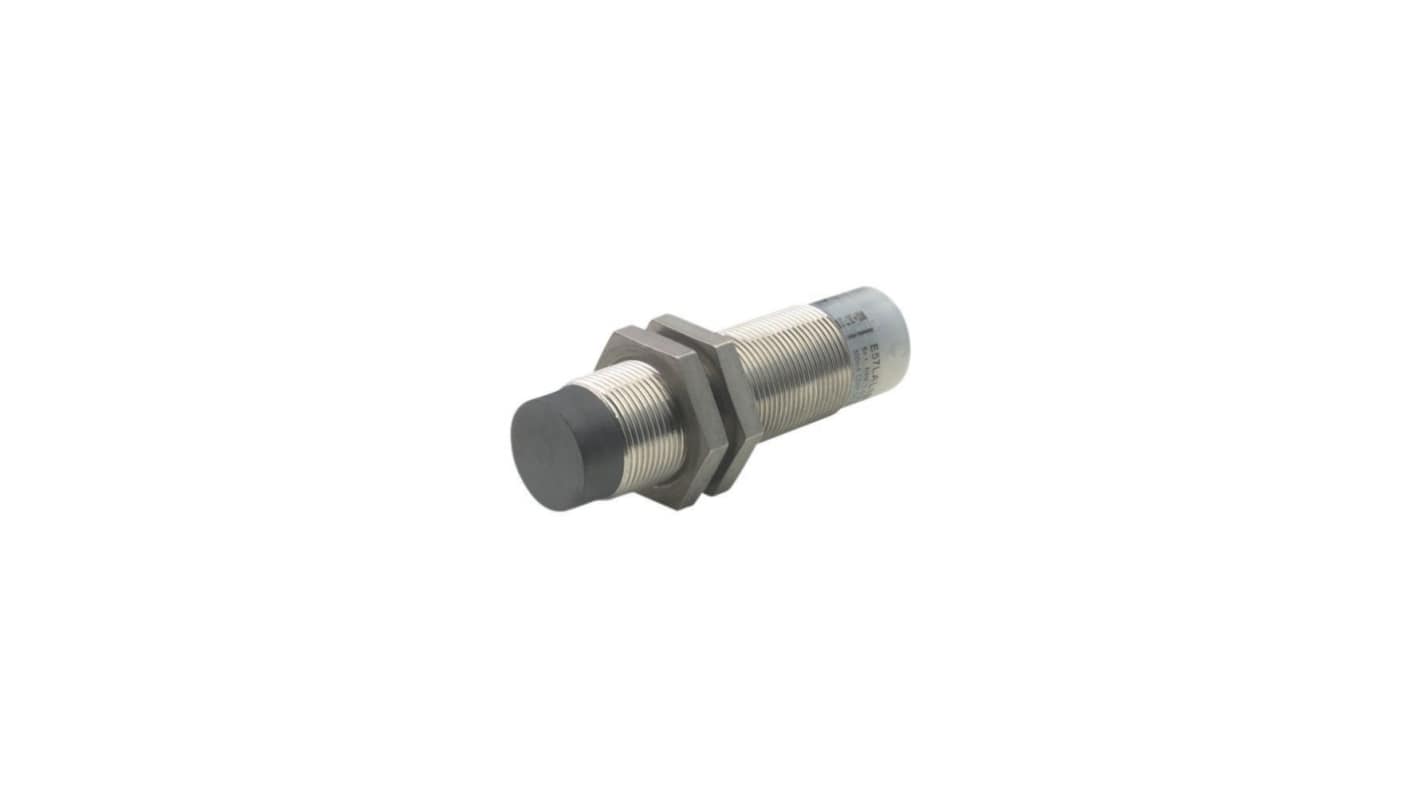

Eaton Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, NPN NC, 48 V
- RS 제품 번호:
- 247-764
- 제조사 부품 번호:
- 135947 E57-18LE12-C1D
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩257,221.60
일시적 품절
- 2026년 2월 13일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩257,221.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 247-764
- 제조사 부품 번호:
- 135947 E57-18LE12-C1D
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Thread Size | M18 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 12 mm | |
| Digital Switching Output Type | NPN | |
| Output Function | NC | |
| Connection Type | M12 | |
| Supply Voltage | 48 V | |
| Length | 86mm | |
| IP Rating | IP67 | |
| Switching Current | 500 mA | |
| Switching Frequency | 500 Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Thread Size M18 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 12 mm | ||
Digital Switching Output Type NPN | ||
Output Function NC | ||
Connection Type M12 | ||
Supply Voltage 48 V | ||
Length 86mm | ||
IP Rating IP67 | ||
Switching Current 500 mA | ||
Switching Frequency 500 Hz | ||
제외
- COO (Country of Origin):
- MX
The Eaton E57 Proximity Sensor offer superior sensing capabilities for various industrial applications. This highly reliable inductive sensor features a semi shielded design, allowing it to perform excellently in dynamic environments. Constructed from robust stainless steel, it ensures durability while maintaining high performance standards even in challenging conditions. With a minimal response time and compact size, it provides efficient operation ideal for automation systems.
LED indicator provides clear status indication for efficient monitoring
Offers a high switching frequency enabling rapid response
Features a degree of protection rated at IP67 for optimal performance
Configured for a 3 wire connection type to simplify integration
Shock resistant design ensures reliability in demanding environments
Caters to diverse automation needs with NPN output type
Offers a high switching frequency enabling rapid response
Features a degree of protection rated at IP67 for optimal performance
Configured for a 3 wire connection type to simplify integration
Shock resistant design ensures reliability in demanding environments
Caters to diverse automation needs with NPN output type
