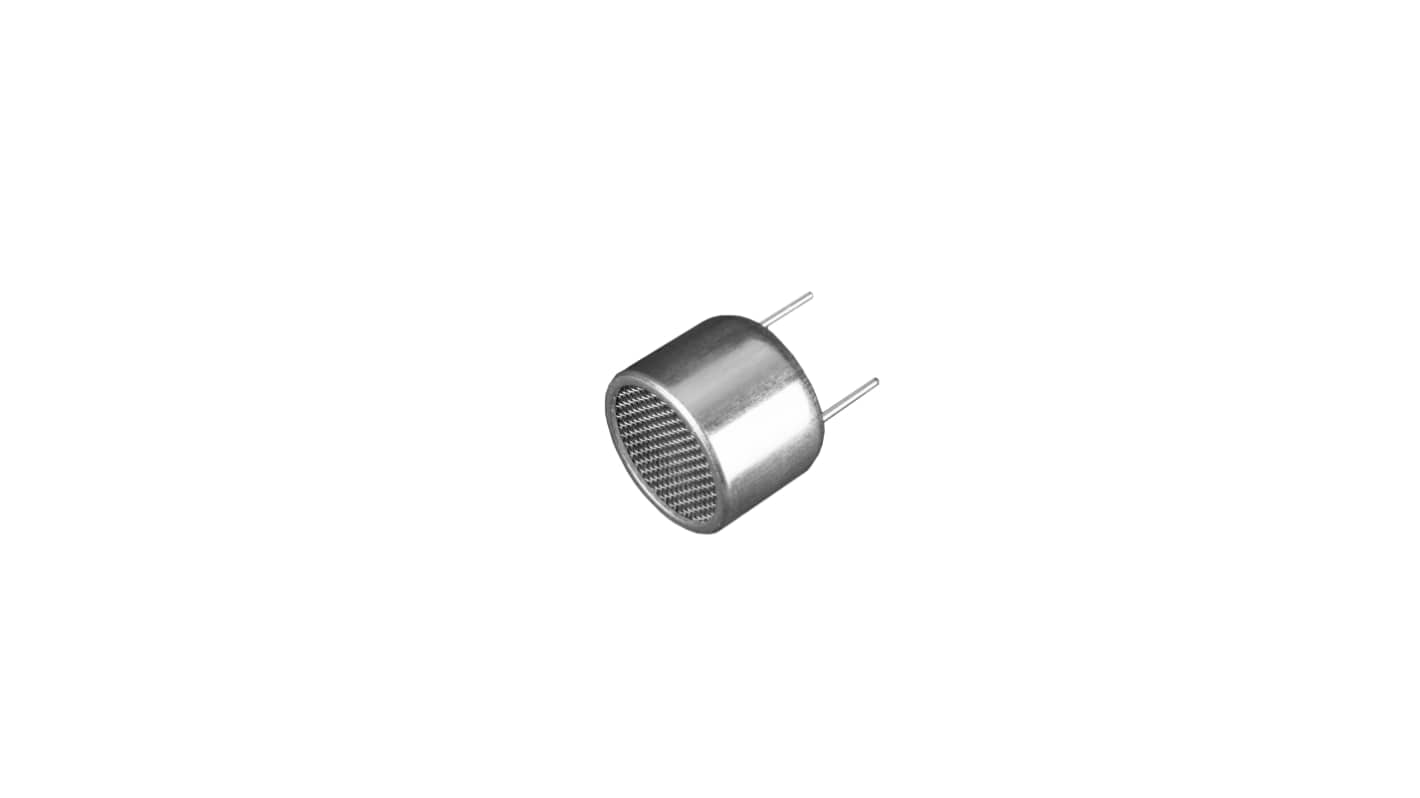

Prowave Ultrasonic Circular Proximity Sensor

The Prowave Air Ultrasonic Ceramic Transducer operates at a centre frequency of 40.0 ± 1.0 kHz, with bandwidth 2.5 kHz. It features a minimum transmitting sound pressure level of 120 dB at 40.0 kHz, measured as 0 dB re 0.0002 mbar with 10 Vrms at a distance of 30 cm. The receiving sensitivity is 65 dB min, corresponding to 0 dB equals to 1 volt/mbar. The capacitance at 1 kHz is 2400 pF ± 20%, and the maximum continuous driving voltage is 20 Vrms, with a typical total beam angle of 55° at 6 dB.

Aluminium housing
Function effectively in temperatures ranging from 30 to 80 °C
