Prowave Ultrasonic Proximity Sensor, 25 → 150 cm Detection, 6 → 10 V dc
- RS 제품 번호:
- 204-856
- 제조사 부품 번호:
- SRM400
- 제조업체:
- Prowave
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩67,059.60
재고있음
- 120 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩67,059.60 |
| 10 - 99 | ₩65,048.00 |
| 100 + | ₩63,092.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 204-856
- 제조사 부품 번호:
- SRM400
- 제조업체:
- Prowave
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Prowave | |
| Sensor Technology | Ultrasonic | |
| Detection Range | 25 → 150 cm | |
| Supply Voltage | 6 → 10 V dc | |
| 모두 선택 | ||
|---|---|---|
브랜드 Prowave | ||
Sensor Technology Ultrasonic | ||
Detection Range 25 → 150 cm | ||
Supply Voltage 6 → 10 V dc | ||
- COO (Country of Origin):
- TW

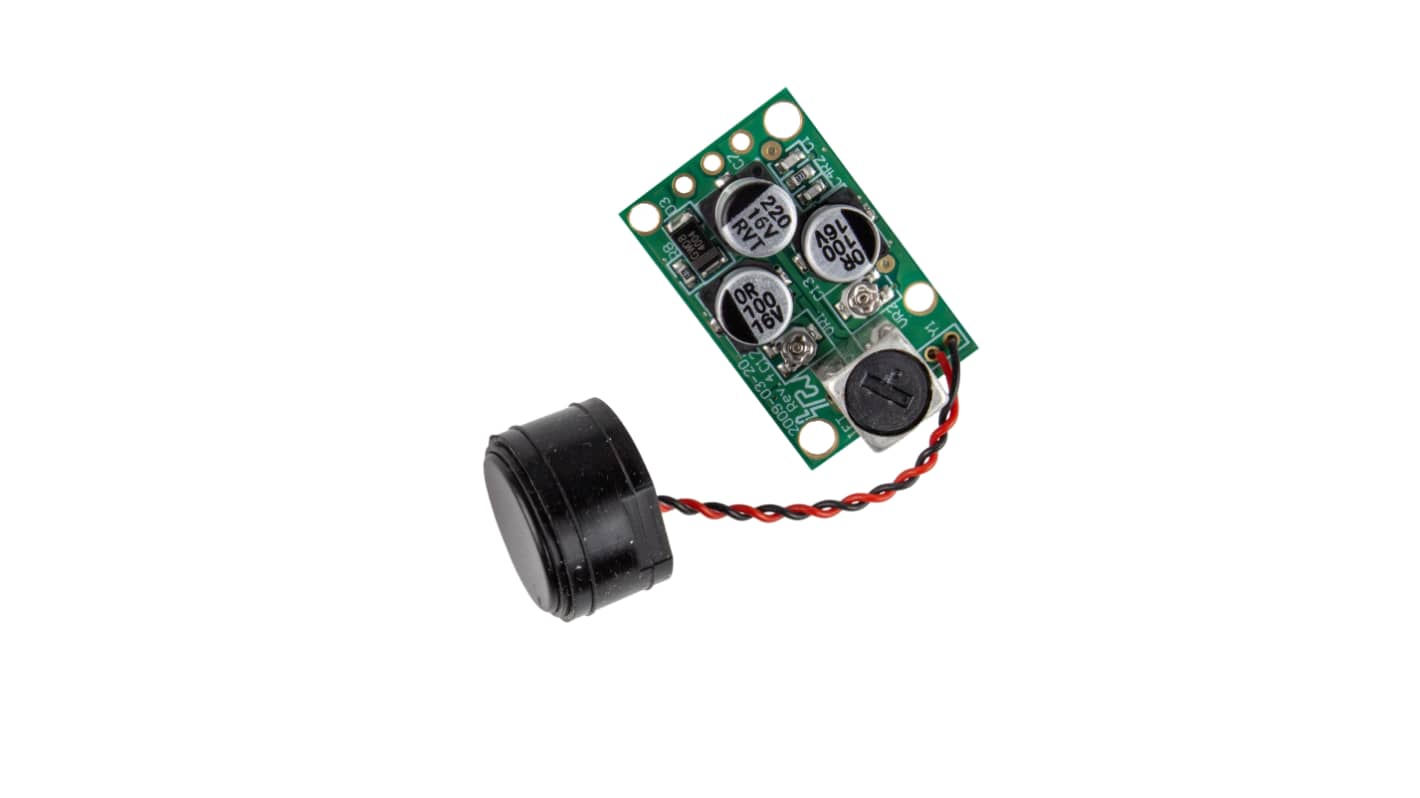

The Prowave Sonar Ranging Module utilizing the newly developed sonar ranging IC, which can work with all PT or EP type transducers. It provides as a shortcut to develop car reversing systems or some other distance measurement systems for design engineers who are not very familiar with analog circuit and or the operation of ultrasonic transducers.
Built in variable RC oscillator matching transducers with different frequencies
High gain amplifier varies with time over 32 steps
Integrated band pass filter reduces external component count
Bi direction I/O pin simplifies the control function for transmitting a pulse and receiving an echo
High gain amplifier varies with time over 32 steps
Integrated band pass filter reduces external component count
Bi direction I/O pin simplifies the control function for transmitting a pulse and receiving an echo
