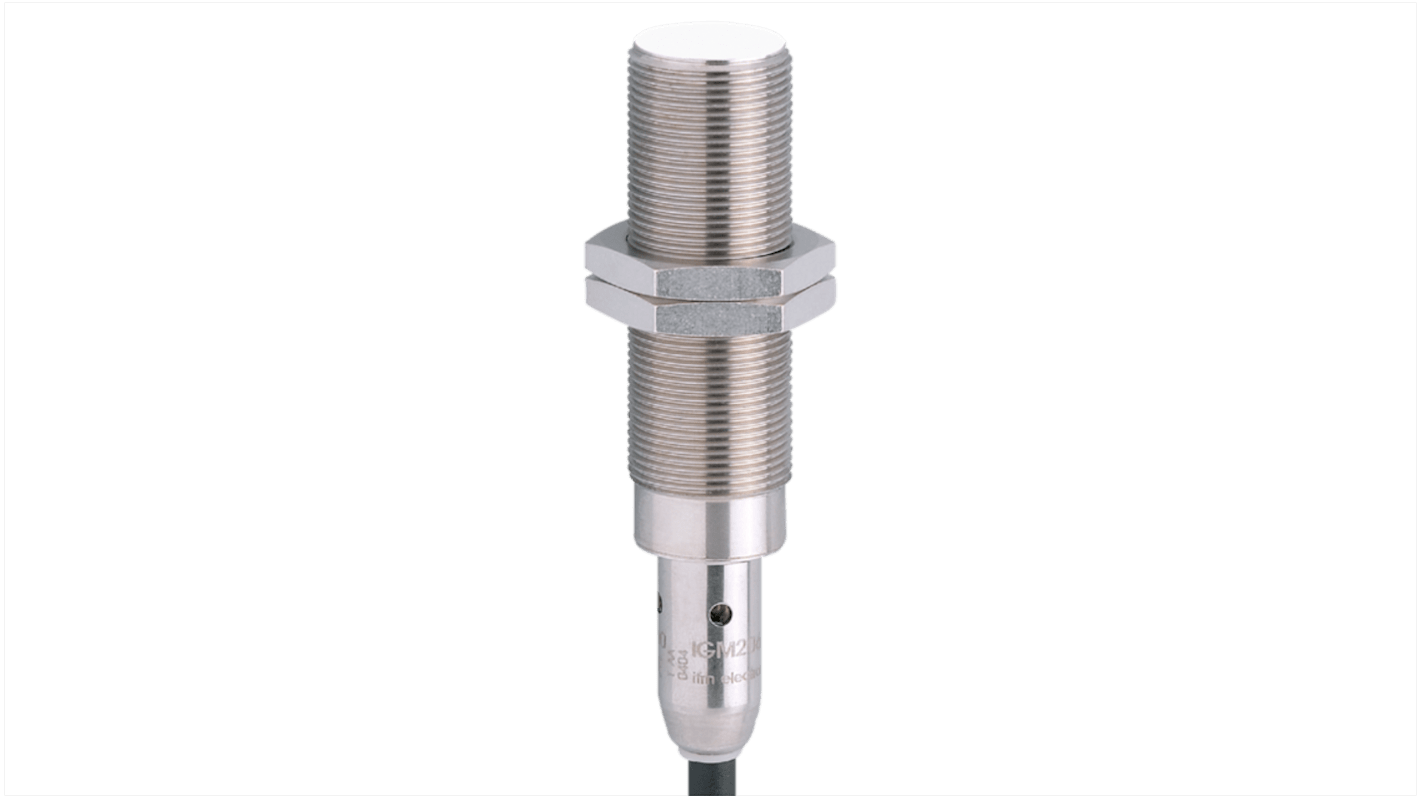

ifm electronic Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP/NPN NO, 10 → 36 V dc
- RS 제품 번호:
- 190-193
- 제조사 부품 번호:
- IGM215
- 제조업체:
- ifm electronic
Subtotal (1 unit)*
₩130,960.80
일시적 품절
- 2026년 3월 26일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩130,960.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 190-193
- 제조사 부품 번호:
- IGM215
- 제조업체:
- ifm electronic
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | ifm electronic | |
| Thread Size | M18 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 8 mm | |
| Digital Switching Output Type | PNP/NPN | |
| Output Function | NO | |
| Connection Type | Pre-Cabled | |
| Cable Length | 800mm | |
| Supply Voltage | 10 → 36 V dc | |
| Length | 81mm | |
| IP Rating | IP67, IP69K | |
| Mounting Type | Flush | |
| Switching Frequency | 200 Hz | |
| Switching Current | 100 mA | |
| Shielding | Shielded | |
| Series | IGM | |
| 모두 선택 | ||
|---|---|---|
브랜드 ifm electronic | ||
Thread Size M18 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 8 mm | ||
Digital Switching Output Type PNP/NPN | ||
Output Function NO | ||
Connection Type Pre-Cabled | ||
Cable Length 800mm | ||
Supply Voltage 10 → 36 V dc | ||
Length 81mm | ||
IP Rating IP67, IP69K | ||
Mounting Type Flush | ||
Switching Frequency 200 Hz | ||
Switching Current 100 mA | ||
Shielding Shielded | ||
Series IGM | ||
- COO (Country of Origin):
- RO
The ifm electronic inductive sensor is expertly engineered for demanding applications where precision and reliability are paramount. Its robust construction, featuring a stainless steel housing, ensures longevity even in harsh environments. This sensor boasts an impressive sensing range of 8 mm and is suitable for use in mobile and challenging conditions, making it a versatile choice for various industrial setups. With features like reverse polarity protection and short-circuit protection, it prioritises safety alongside performance. Its compatibility with both PNP and NPN output functions affords flexibility in integration into existing systems.
Wide operating temperature range
High ingress protection for the requirements of harsh environmental conditions
High EMC resistance according to automotive standards
Large operating voltage range
High ingress protection for the requirements of harsh environmental conditions
High EMC resistance according to automotive standards
Large operating voltage range
