- RS 제품 번호:
- 230-5327
- 제조사 부품 번호:
- AFBR-S50MV68B
- 제조업체:
- Broadcom
현재 시스템 에러로 재고 수량 확인이 불가합니다. krenquiry@rs-components.com 에 문의하시거나 잠시후에 다시 시도해주시기 바랍니다.
추가완료!
단가 개당
₩90,402.009
수량 | 한팩당 |
1 - 9 | ₩90,402.009 |
10 - 24 | ₩88,773.703 |
25 - 49 | ₩87,176.446 |
50 + | ₩85,606.787 |
- RS 제품 번호:
- 230-5327
- 제조사 부품 번호:
- AFBR-S50MV68B
- 제조업체:
- Broadcom
제정법과 컴플라이언스
- COO (Country of Origin):
- CH
제품 세부 사항

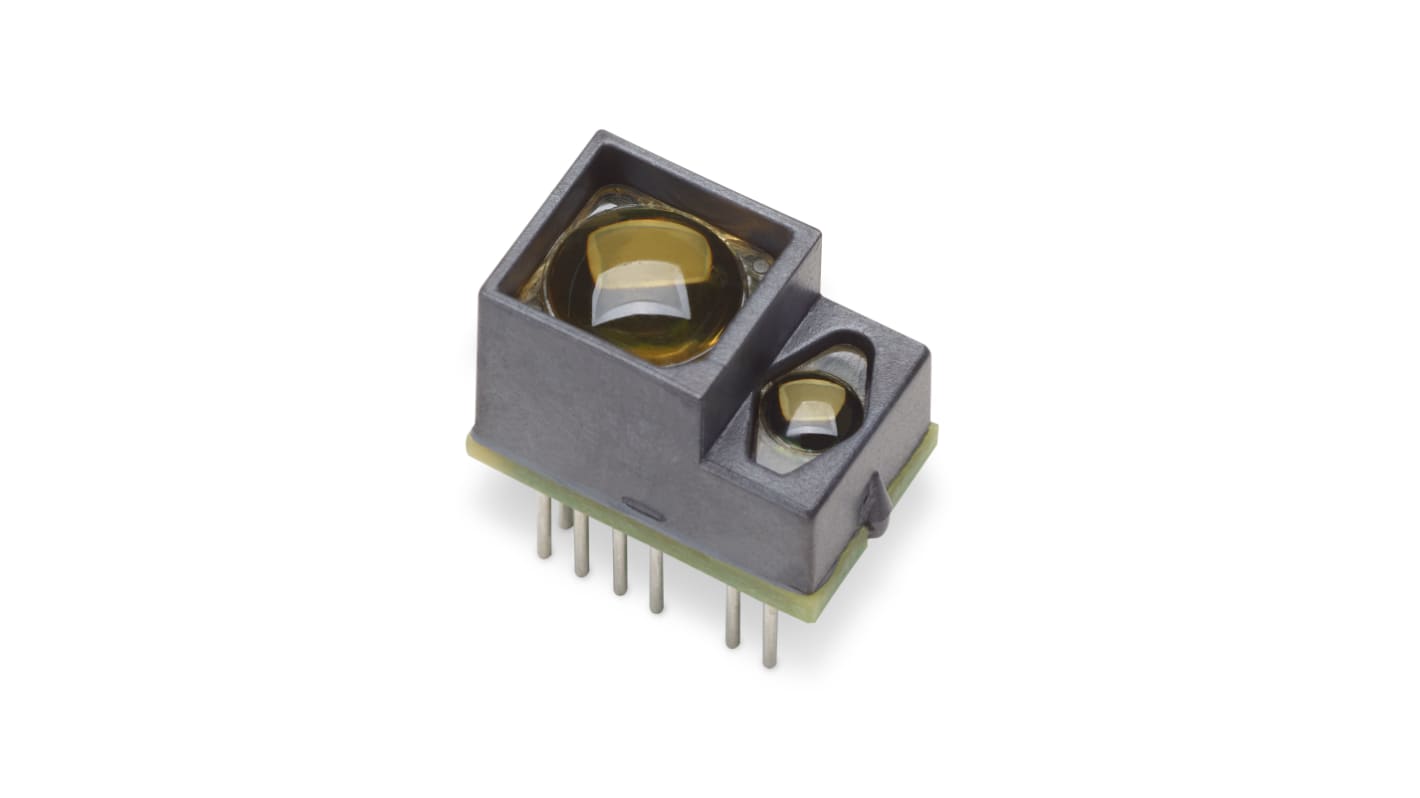

The Broadcom ToF multi-pixel AFBR-S50 series optical distance and motion measurement sensor module delivers high speed and accurate measurements at medium distance ranges up to 10m. The 3D Time of flight sensor AFBR-S50MV68B has very low power consumption and is compact in size.
With an integrated 680 nm laser light source this 3D Time of flight sensor operates up to 100k Lux ambient light, also due to its suppression it can be used outside in sunlight conditions. Depending on the distance and remission of the object being measured it illuminates between 1 and 2 pixels due to the transmitter beam of 1°x 1° emission cone. The sensor accurately measures against different coloured surfaces along with metallic and retroreflective surfaces.
Applications for the ToF sensor module include distance measurement, security surveillance where the 3D image sensing is more accurate, robotics and factory automation to safely identify people or objects. Can be found in environments of human machine interface areas, along with light barriers, automotive production and healthcare settings.
Also available see RS 230-5328 AFBR-S50MV68B Evaluation Kit.
With an integrated 680 nm laser light source this 3D Time of flight sensor operates up to 100k Lux ambient light, also due to its suppression it can be used outside in sunlight conditions. Depending on the distance and remission of the object being measured it illuminates between 1 and 2 pixels due to the transmitter beam of 1°x 1° emission cone. The sensor accurately measures against different coloured surfaces along with metallic and retroreflective surfaces.
Applications for the ToF sensor module include distance measurement, security surveillance where the 3D image sensing is more accurate, robotics and factory automation to safely identify people or objects. Can be found in environments of human machine interface areas, along with light barriers, automotive production and healthcare settings.
Also available see RS 230-5328 AFBR-S50MV68B Evaluation Kit.
Features
• Single voltage supply 5V, typical 33mA
• SPI digital interface up to 25 MHz
• Integrated voltage and temperature sensors, Integrated clock source
• Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
• Measurement rates of up to 3 kHz
• Range up to 100m with dual frequency mode
• Accuracy error typically below ± 1%
• Laser Class 1 eye safe ready
• Reference Pixel for system health monitoring
• Drop-in compatible within the AFBR-S50 sensor platform
• RoHS and REACH Compliance
• Single voltage supply 5V, typical 33mA
• SPI digital interface up to 25 MHz
• Integrated voltage and temperature sensors, Integrated clock source
• Field-of-View (FoV) of 12.4° x 6.2° with 32 pixels
• Measurement rates of up to 3 kHz
• Range up to 100m with dual frequency mode
• Accuracy error typically below ± 1%
• Laser Class 1 eye safe ready
• Reference Pixel for system health monitoring
• Drop-in compatible within the AFBR-S50 sensor platform
• RoHS and REACH Compliance
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Sensor Type | Time-of-Flight |
Maximum Output Current | 33mA |
Maximum Output Voltage | 2.8 V |
Sensing Distance | 10m |
Switching Mode | Analogue, Digital |
Mounting Type | Through Hole |
Package Type | Module |
Pin Count | 15 |
Dimensions | 12.4 x 7.6 x 7.9mm |
Height | 7.9mm |
Length | 12.4mm |
Width | 7.6mm |
Series | AFBR-S50 ToF Sensor |
Minimum Operating Temperature | -20 °C |
Minimum Operating Supply Voltage | 4.5 V |
Maximum Operating Temperature | +50 °C |
Maximum Operating Supply Voltage | 5.5 V |
