- RS 제품 번호:
- 161-2152P
- 제조사 부품 번호:
- VCNL4200
- 제조업체:
- Vishay
일시 품절-다음 입고 날짜는 30/12/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당(릴로 공급됨) 150pcs 이하는 STRIP 포장
₩4,255.328
수량 | 한팩당 |
625 - 1245 | ₩4,255.328 |
1250 + | ₩4,163.909 |
- RS 제품 번호:
- 161-2152P
- 제조사 부품 번호:
- VCNL4200
- 제조업체:
- Vishay
참조 문서
제정법과 컴플라이언스
제품 세부 사항

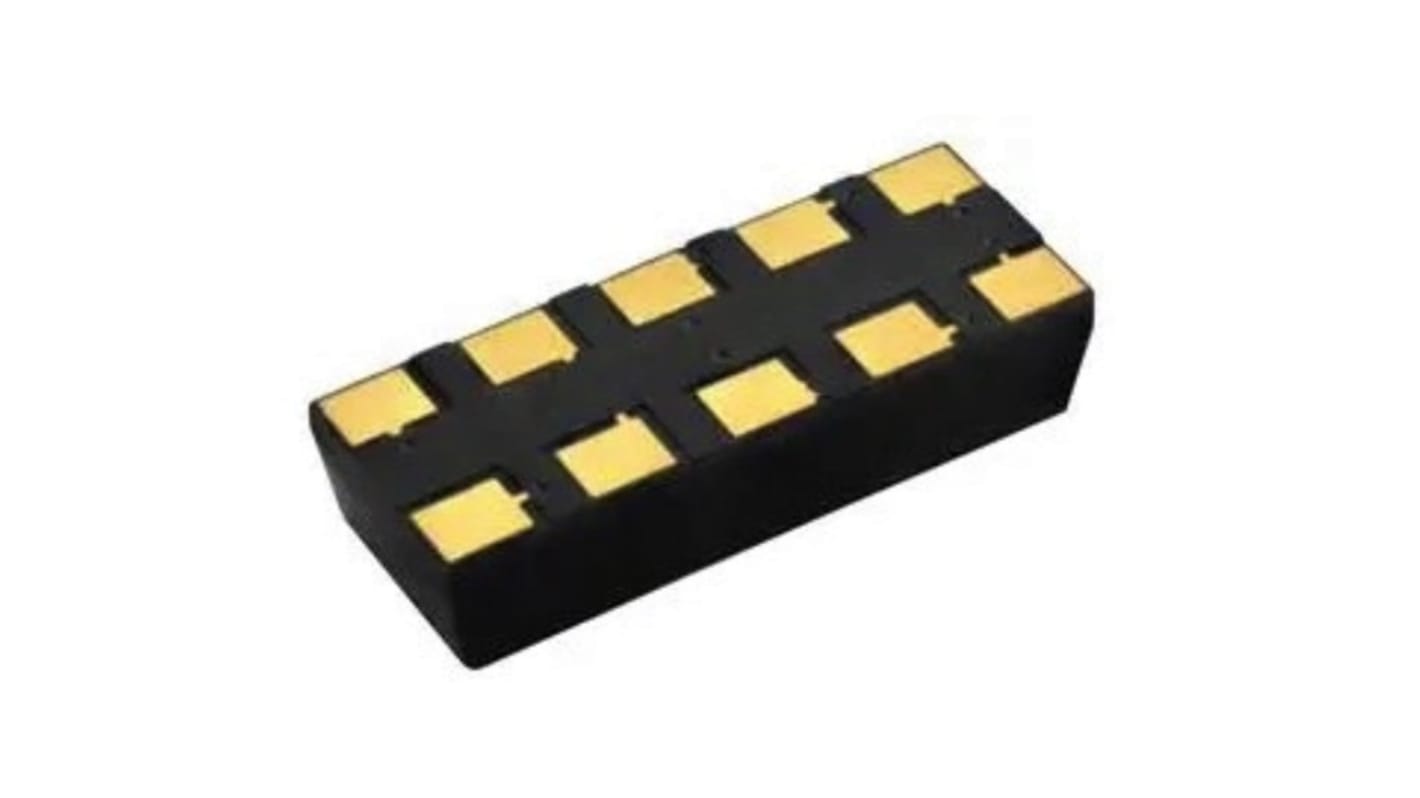

VCNL4200 integrates a high sensitivity long distance proximity sensor (PS), ambient light sensor (ALS), and 940 nm IRED into one small package. It incorporates photodiodes, amplifiers, and analog to digital converting circuits into a single chip using a CMOS process. The 16-bit high resolution ALS offers excellent sensing capabilities with sufficient selections to fulfill most applications whether a dark or high transparency lens design.
Package type: surface-mount
Dimensions (L x W x H in mm): 8.0 x 3.0 x 1.8
Integrated modules: infrared emitter (IRED), ambient light sensor (ALS), proximity sensor (PS), and signal conditioning IC
Operates ALS and PS in parallel structure
FiltronTM technology adoption for robust background light cancellation
Supports low transmittance (dark) lens design
Temperature compensation: -40 °C to +85 °C
Low power consumption I2C (SMBus compatible) interface
Dimensions (L x W x H in mm): 8.0 x 3.0 x 1.8
Integrated modules: infrared emitter (IRED), ambient light sensor (ALS), proximity sensor (PS), and signal conditioning IC
Operates ALS and PS in parallel structure
FiltronTM technology adoption for robust background light cancellation
Supports low transmittance (dark) lens design
Temperature compensation: -40 °C to +85 °C
Low power consumption I2C (SMBus compatible) interface
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
---|---|
Sensor Type | Ambient Light, Proximity Sensor |
Maximum Switching Frequency | 400 kHz |
Sensing Distance | 1.5m |
Switching Mode | Digital |
Mounting Type | Surface Mount |
Package Type | SMD |
Pin Count | 10 |
Maximum Supply Current | 350 μA |
Dimensions | 8 x 3 x 1.8mm |
Height | 1.8mm |
Length | 8mm |
Minimum Operating Supply Voltage | 2.5 V |
Minimum Operating Temperature | -40 °C |
Width | 3mm |
Series | VCNL |
Maximum Operating Temperature | 85 °C |
Maximum Operating Supply Voltage | 3.6 V |
