- RS 제품 번호:
- 135-7079
- 제조사 부품 번호:
- EKMC1601112
- 제조업체:
- Panasonic
본 제품은 백오더/선주문 진행으로는 불가한 상황입니다.
죄송합니다만, 본 제품에 대한 재고가 없으며, 현재는 백오더/선주문 진행이 불가합니다.
추가완료!
단가 개당가격(50개가 1박스안에)
₩10,478.768
수량 | 한팩당 | Per Box* |
50 - 50 | ₩10,478.768 | ₩523,964.249 |
100 - 150 | ₩10,216.583 | ₩510,863.633 |
200 + | ₩10,013.045 | ₩500,643.601 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 135-7079
- 제조사 부품 번호:
- EKMC1601112
- 제조업체:
- Panasonic
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

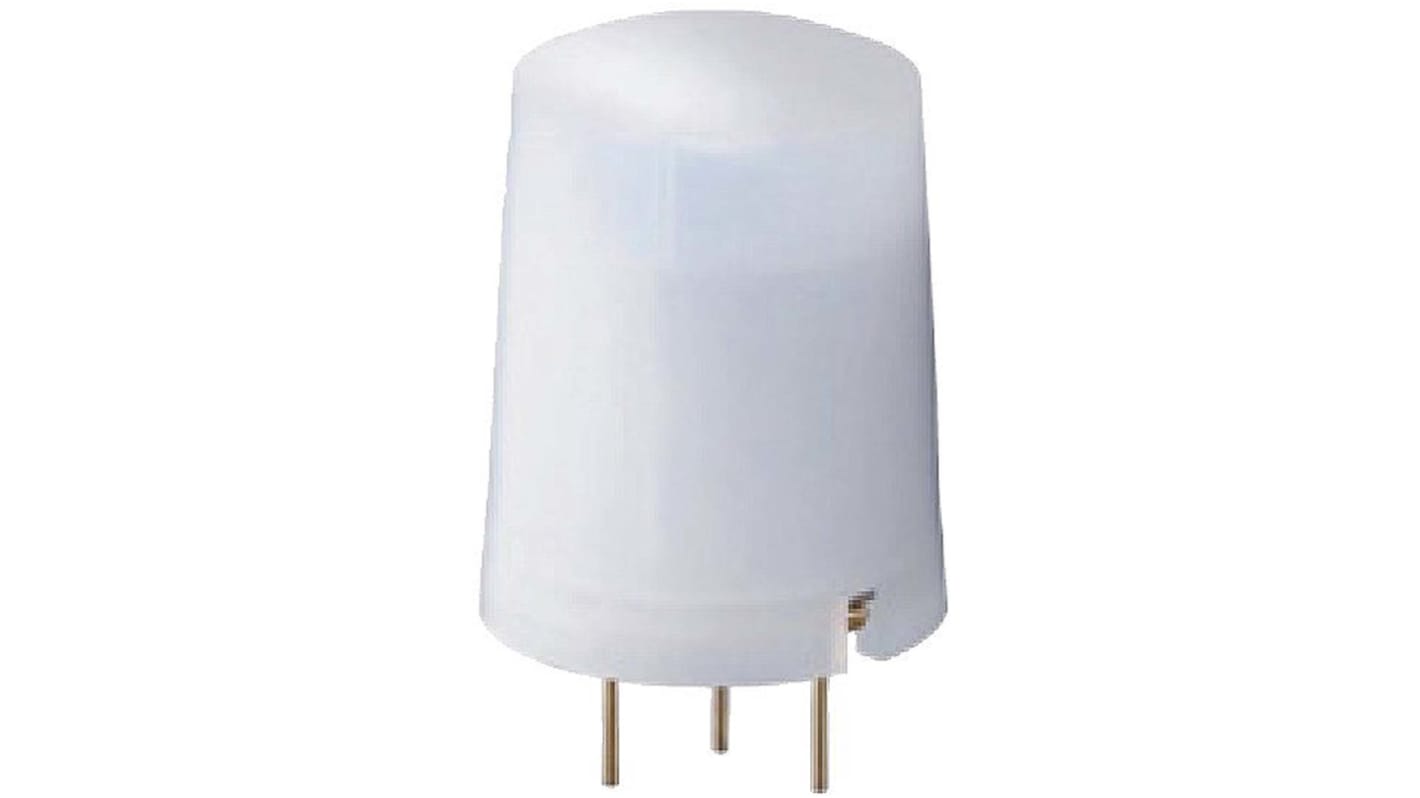

Motion Detectors
More detailed technical information is available from our web site.
사양
속성 | 값 |
---|---|
Sensor Type | PIR Sensor |
Maximum Output Current | 100µA |
Maximum Output Voltage | 0.5 V |
Sensing Distance | 5m |
Switching Mode | Digital |
Output Type | Digital |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Supply Current | 170 μA |
Dimensions | 11 x 14.4 x 9.5mm |
Height | 14.4mm |
Width | 11 (Base) mm, 9.5 (Top) mm |
Series | EKMC |
Minimum Operating Temperature | -20 °C |
Maximum Operating Temperature | +60 °C |
Minimum Operating Supply Voltage | -0.3 V |
Maximum Operating Supply Voltage | 7 V |
