- RS 제품 번호:
- 135-7077
- 제조사 부품 번호:
- EKMC1693113
- 제조업체:
- Panasonic
일시 품절-다음 입고 날짜는 22/08/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당가격(50개가 1박스안에)
₩10,792.699
수량 | 한팩당 | Per Box* |
50 - 50 | ₩10,792.699 | ₩539,626.341 |
100 - 150 | ₩10,577.087 | ₩528,837.091 |
200 + | ₩10,364.924 | ₩518,254.83 |
*다른 단위에 대한 가격 표시 |
- RS 제품 번호:
- 135-7077
- 제조사 부품 번호:
- EKMC1693113
- 제조업체:
- Panasonic
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

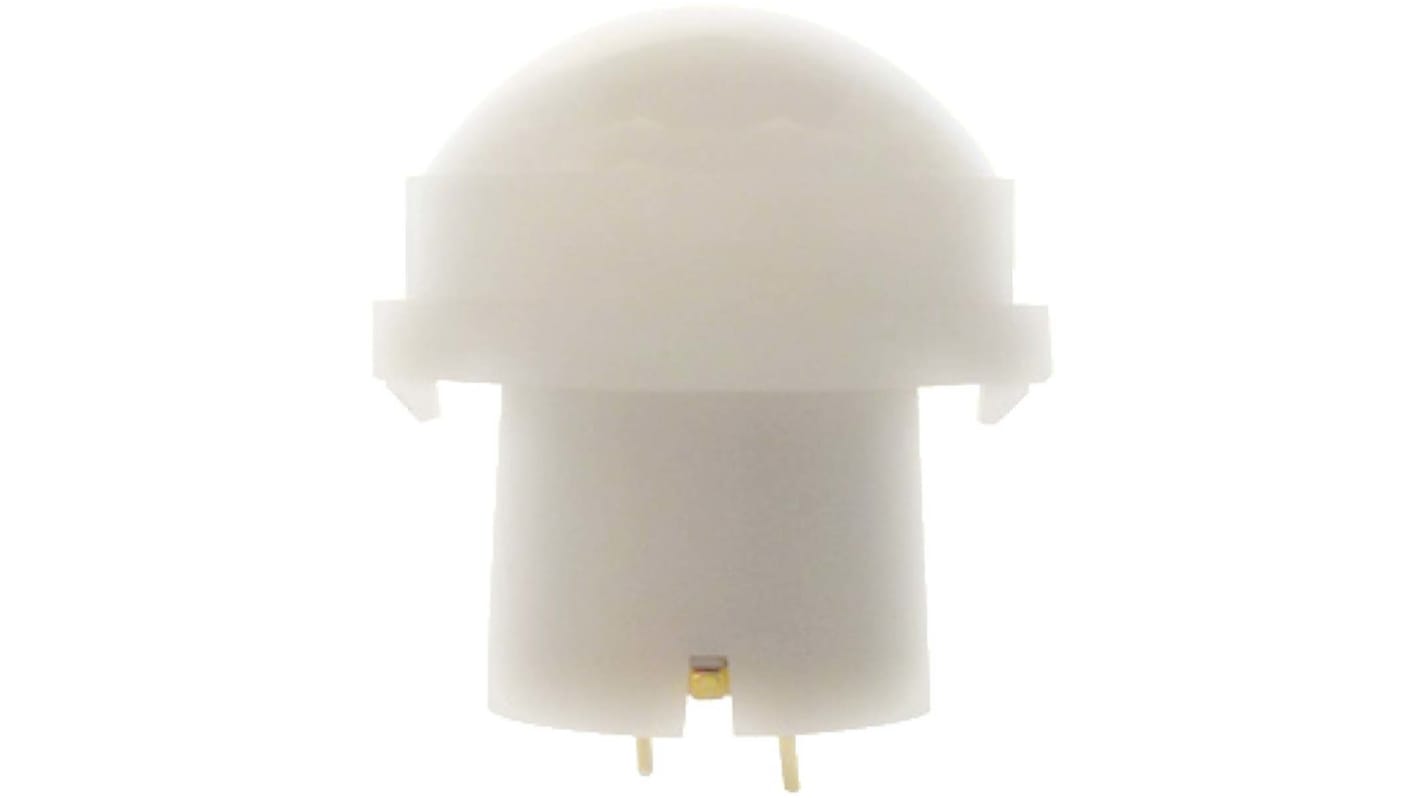

Motion Detectors
More detailed technical information is available from our web site.
사양
속성 | 값 |
---|---|
Sensor Type | PIR Sensor |
Maximum Output Current | 100µA |
Maximum Output Voltage | 0.5 V |
Sensing Distance | 2.2m |
Switching Mode | Digital |
Output Type | Digital |
Mounting Type | Through Hole |
Pin Count | 3 |
Maximum Supply Current | 170 μA |
Dimensions | 11 x 17.2 x 14.9mm |
Height | 17.2mm |
Maximum Operating Temperature | +60 °C |
Maximum Operating Supply Voltage | 7 V |
Minimum Operating Supply Voltage | -0.3 V |
Minimum Operating Temperature | -20 °C |
Series | EKMC |
Width | 11 (Base) mm, 14.9 (Top) mm |
