VCNL3020-GS08 Vishay, 200mm 2.5 V to 3.6 V 10-Pin
- RS 제품 번호:
- 122-6792P
- 제조사 부품 번호:
- VCNL3020-GS08
- 제조업체:
- Vishay
8955 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당(릴로 공급됨) 150pcs 이하는 STRIP 포장
₩3,563.643
| 수량 | 한팩당 |
| 825 - 1645 | ₩3,563.643 |
| 1650 + | ₩3,487.748 |
- RS 제품 번호:
- 122-6792P
- 제조사 부품 번호:
- VCNL3020-GS08
- 제조업체:
- Vishay
제정법과 컴플라이언스
- COO (Country of Origin):
- PH
제품 세부 사항

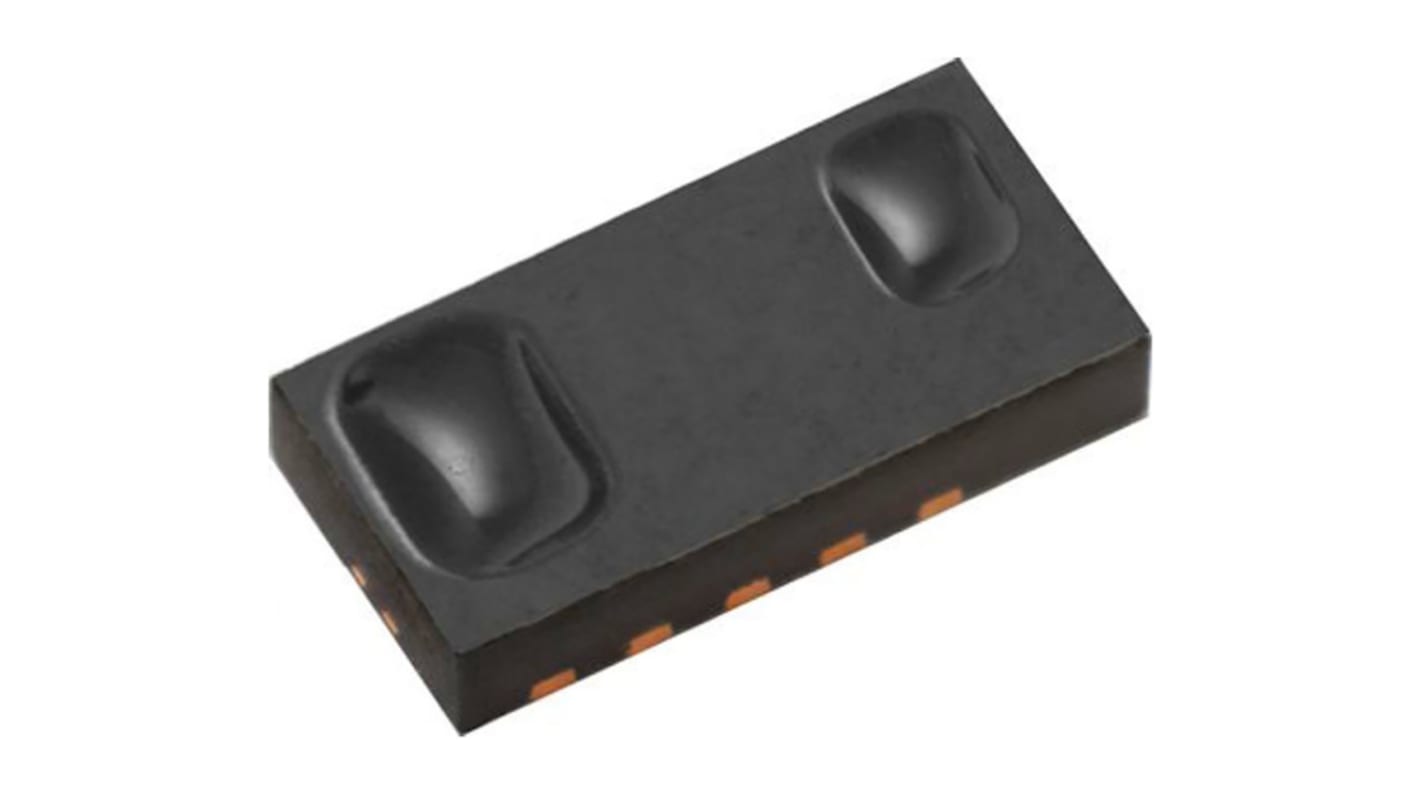

VCNL3020, Proximity Sensor with Infrared Emitter, Vishay Semiconductor
The VCNL3020 is a fully integrated Proximity Sensor with Infrared Emitter, and Interrupt function.
I²C serial communication interface
16-Bit effective resolution
Programmable LED drive current from 10 mA to 200 mA
Proximity distance up to 200 mm
Operation voltage from 2.5 V to 3.6 V
16-Bit effective resolution
Programmable LED drive current from 10 mA to 200 mA
Proximity distance up to 200 mm
Operation voltage from 2.5 V to 3.6 V
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Light Sensors, Vishay Semiconductor
사양
속성 | 값 |
|---|---|
| Sensor Type | Proximity Sensor |
| Sensing Distance | 200mm |
| Switching Mode | Digital |
| Output Type | Digital, Open Drain |
| Mounting Type | Surface Mount |
| Pin Count | 10 |
| Maximum Supply Current | 200 (LED Pulse) mA |
| Dimensions | 4.9 x 2.4 x 0.83mm |
| Height | 0.83mm |
| Length | 4.9mm |
| Minimum Operating Supply Voltage | 2.5 V |
| Width | 2.4mm |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Operating Supply Voltage | 3.6 V |
