Phoenix Contact PCB Mount Power Relay, SPDT
- RS 제품 번호:
- 801-8024
- 제조사 부품 번호:
- 2961163
- 제조업체:
- Phoenix Contact
모든 Power Relays 열람하기
- RS 제품 번호:
- 801-8024
- 제조사 부품 번호:
- 2961163
- 제조업체:
- Phoenix Contact
- COO (Country of Origin):
- CZ
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- CZ
제품 세부 사항

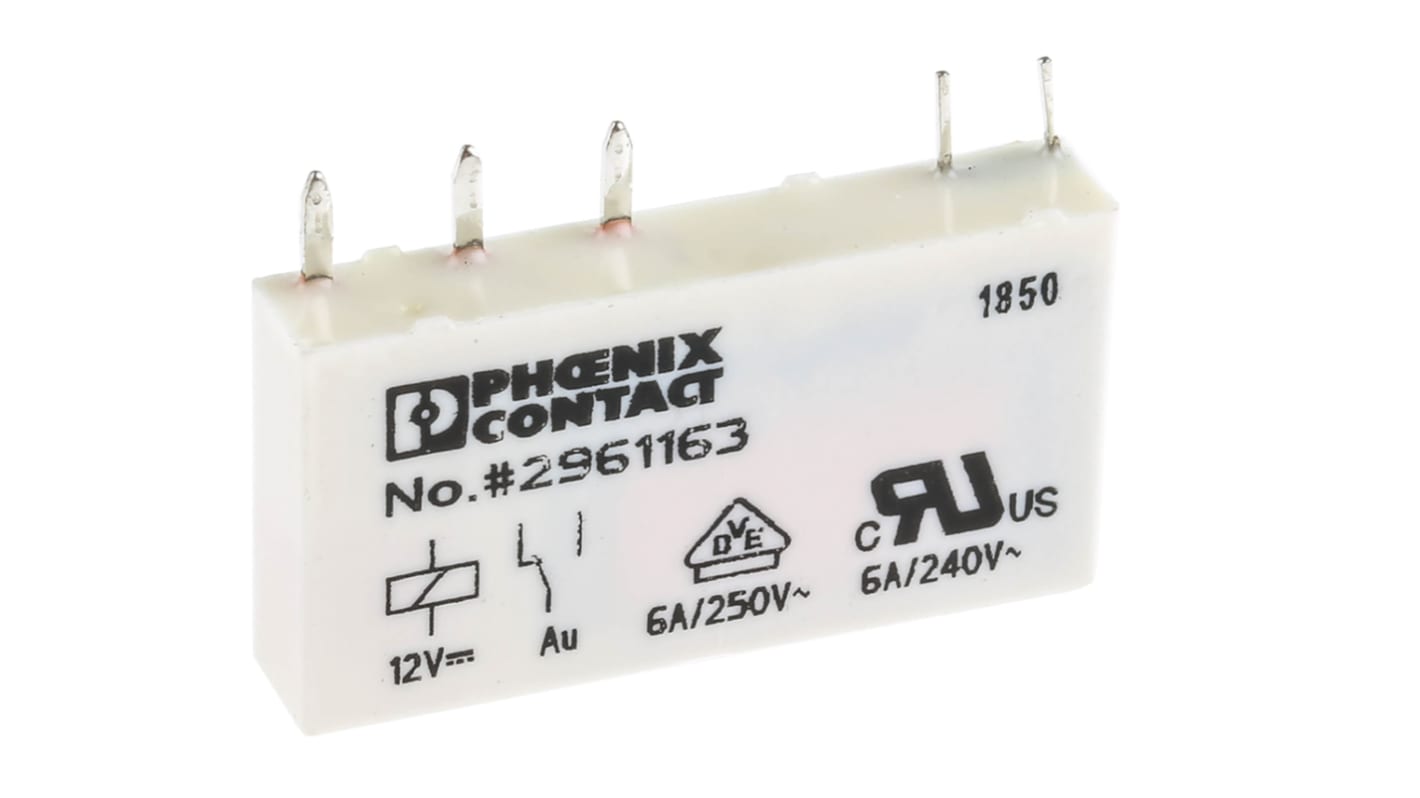

Phoenix Contact REL-MR Series
REL-MR- 12DC/21AU
The REL-MR- 12DC/21AU SPDT (Single pole, double throw), plug-in miniature power relay has an input voltage of 12 Vdc and power contact. The non-latching relay is part of the REL-MR range and has been designed to be assembled in rows with zero spacing.
Features and Benefits
• Up to RT III protection meaning that the relay is capable of undergoing a washing process to remove any flush residue without leakage of flux or washing product.
• Operating temperature of -40°C to +85°C
• Safe isolation between coil and contact according to DIN EN 50178
• Power contacts up to 6 A
Typical Applications
The SPDT relay is a commonly used when there is a need to select between two power sources, swapping inputs or where you need two circuits going to one place.
사양
| 속성 | 값 |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Terminal Type | PCB Pin |
| Length | 5mm |
| Height | 28mm |
| Depth | 15mm |
