- RS 제품 번호:
- 236-3546
- 제조사 부품 번호:
- 7KG9501-0AA01-2AA1
- 제조업체:
- Siemens
일시 품절-다음 입고 날짜는 11/06/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩7,266,774.288
수량 | 한팩당 |
1 + | ₩7,266,774.288 |
- RS 제품 번호:
- 236-3546
- 제조사 부품 번호:
- 7KG9501-0AA01-2AA1
- 제조업체:
- Siemens
제정법과 컴플라이언스
- COO (Country of Origin):
- IN
제품 세부 사항

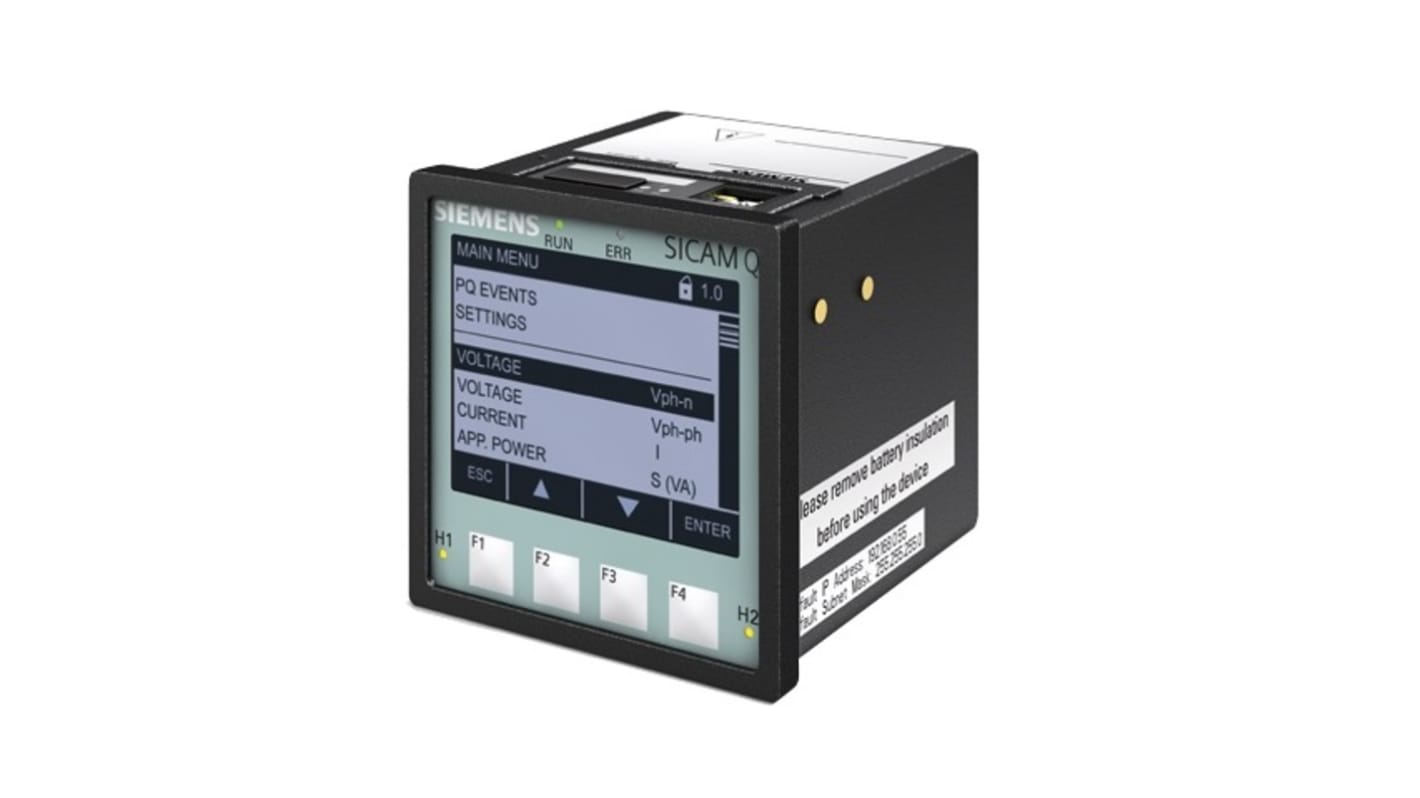

The Siemens SICAM Q100 multifunctional measuring device is used for acquisition, visualization, evaluation and transmission of electrical measured variables such as alternating current, alternating voltage, frequency, power, harmonics etc. This is switchboard mounted device with graphic display. It has 4 inputs for ac voltage measurements, 4 inputs for ac current measurements and 2 binary inputs without serial interface.
PQ reporting according to EN 50160 direct in web server
RJ45 MODBUS TCP and IEC61850 server
IP40 front protection class
96mm x 96mm x 100mm dimensions
RJ45 MODBUS TCP and IEC61850 server
IP40 front protection class
96mm x 96mm x 100mm dimensions
사양
속성 | 값 |
---|---|
Absolute Maximum Current Measurement | 10A |
Maximum Voltage | 690V |
Best Voltage Measurement Accuracy | 400 V |
Model Number p | SICAM Q100 |
