    onsemi NCP1271ADAPGEVB PWM Controller for NCP1271

    RS 제품 번호:
    117-6758
    제조사 부품 번호:
    NCP1271ADAPGEVB
    제조업체:
    ON Semiconductor
    ON Semiconductor
    본 제품군 열람하기
    단종
    RS 제품 번호:
    117-6758
    제조사 부품 번호:
    NCP1271ADAPGEVB
    제조업체:
    ON Semiconductor

    제정법과 컴플라이언스


    제품 세부 사항

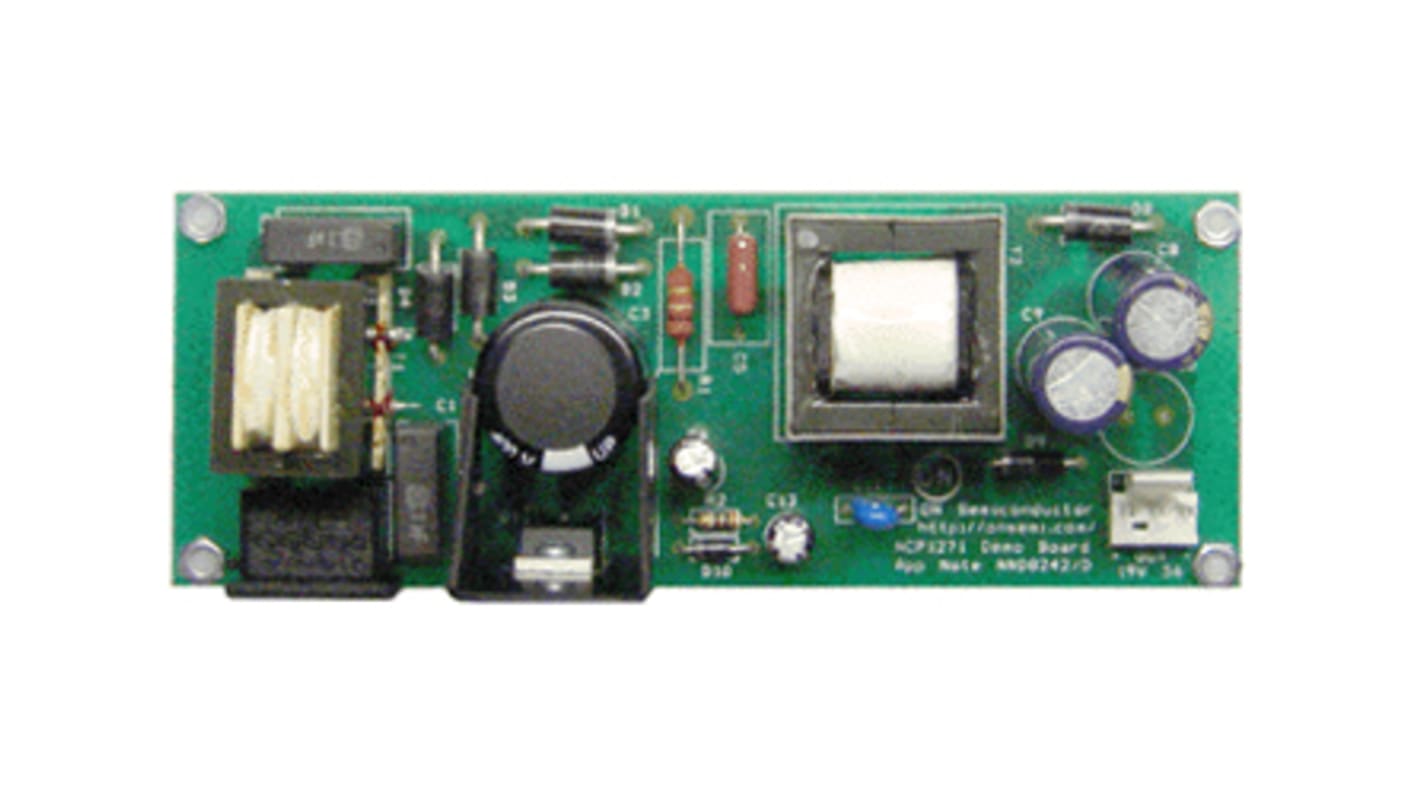

    NCP1271ADAPGEVB - 57W Adapter Evaluation Board, On Semiconductor


    The ON Semiconductor NCP1271ADAPEVB provides a working example circuit using NCP1271D65R2G (RS 786-8890) PWM Controller. The 19 V, 3.0 A circuit delivers more than 85% from universal input (85 Vac to 265 Vac).
    The no load standby consumption is 83 mW at 230 Vac. The NCP1271 is one of the latest fixed-frequency current-mode PWM switching controllers with soft-skip standby operation for low-level audible noise. Integrated high-voltage start up for saving PCB space and power and adjustable skip level to minimise standby power and (4) optional external latch protection features.



    사양

    속성
    Power Management FunctionPWM Controller
    Kit ClassificationEvaluation Board
    Featured DeviceNCP1271
    단종
