- RS 제품 번호:
- 845-6931
- 제조사 부품 번호:
- SNR-10-223-T
- 제조업체:
- Cosel
일시 품절-다음 입고 날짜는 21/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩39,319.096
수량 | 한팩당 |
1 + | ₩39,319.096 |
- RS 제품 번호:
- 845-6931
- 제조사 부품 번호:
- SNR-10-223-T
- 제조업체:
- Cosel
참조 문서
제정법과 컴플라이언스
- COO (Country of Origin):
- JP
제품 세부 사항

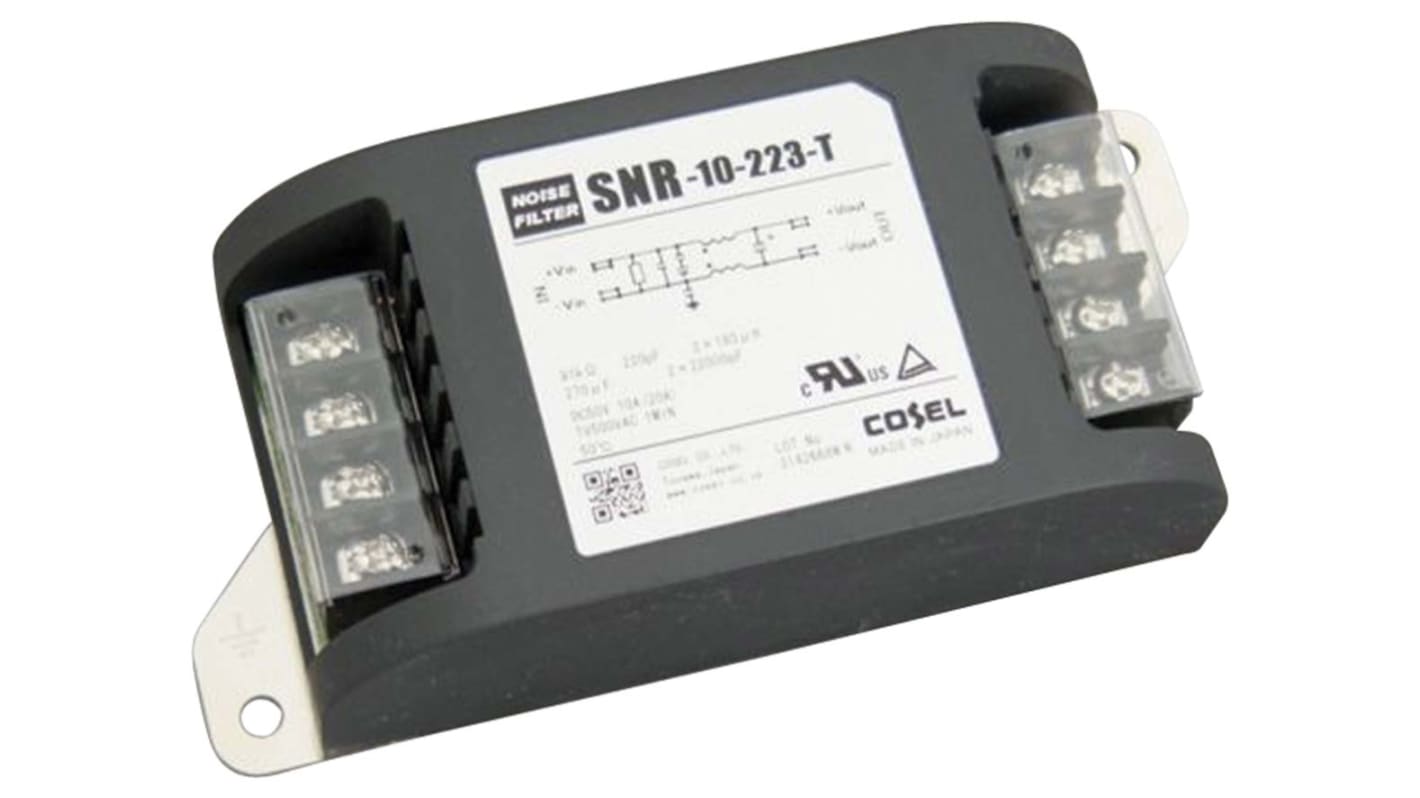

Cosel – SNR Series (10A)
The SNR series has been designed as a ripple noise attenuation type filter for switch mode power supplies (Vdc). They are most suited to applications utilising an analogue circuit.
Features:
50 Vdc
Best filter for switch mode power supplies of analogue circuits
DIN rail installation type (Optional)
50 Vdc
Best filter for switch mode power supplies of analogue circuits
DIN rail installation type (Optional)
Standards
UL60950-1, C-UL(CSA60950-1), EN60950-1
Noise Filter - Cosel
사양
속성 | 값 |
---|---|
Maximum Current Rating | 10A |
Maximum Voltage Rating | 50 V dc |
Mounting Type | Panel Mount |
Termination Style | Screw |
Series | SNR |
Number of Stages | Single Stage |
Length | 117mm |
Depth | 52mm |
Capacitance | 22nF |
Height | 35mm |
Dimensions | 117 x 52 x 35mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +71°C |
Resistance | 20mΩ |
Standards Met | EN60950-1 |
