- RS 제품 번호:
- 797-0798
- 제조사 부품 번호:
- VW3A4422
- 제조업체:
- Schneider Electric
- RS 제품 번호:
- 797-0798
- 제조사 부품 번호:
- VW3A4422
- 제조업체:
- Schneider Electric
제정법과 컴플라이언스
- COO (Country of Origin):
- TH
제품 세부 사항

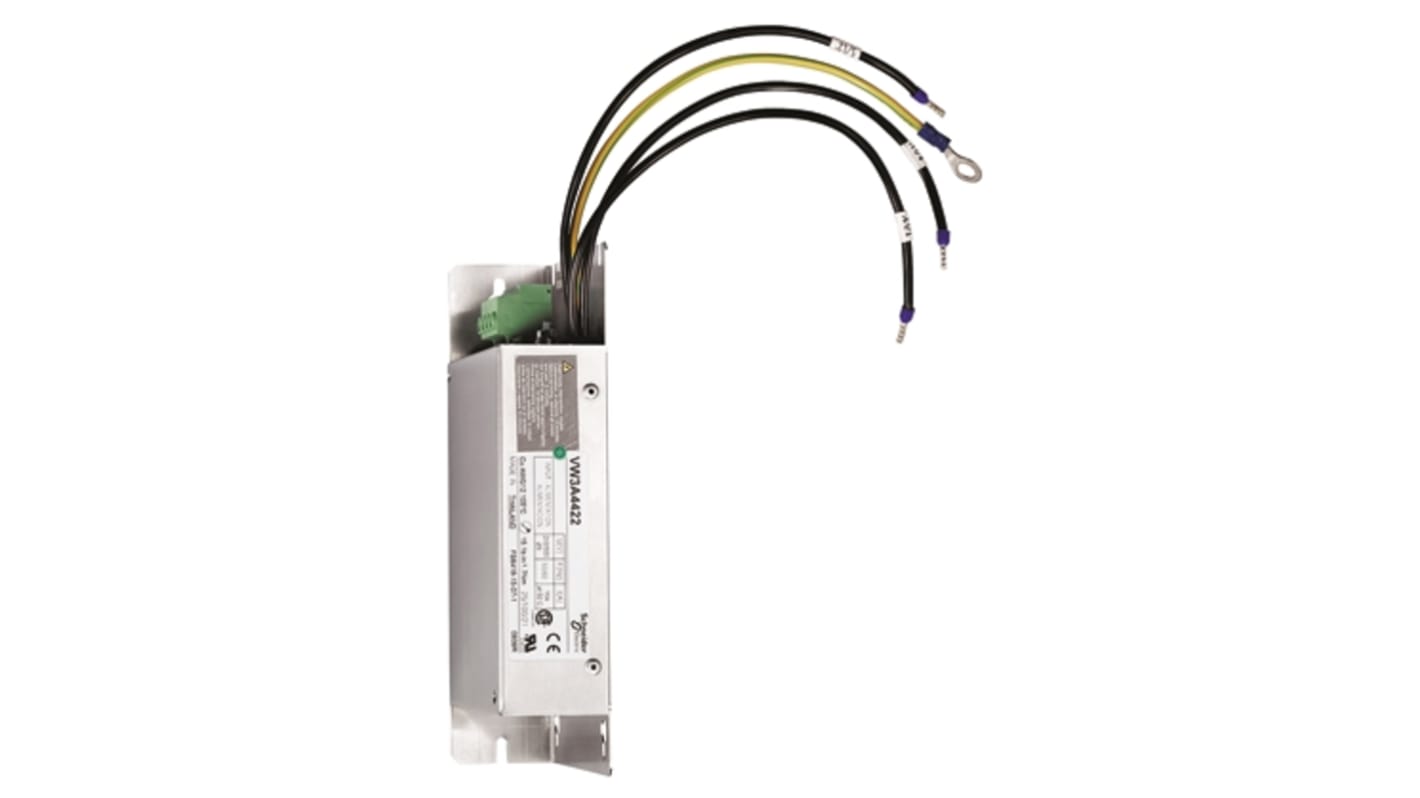

Schneider Electric Power Line Filter, 3 Phase, 380 to 500V Voltage Rating - Altivar Series - VW3A4422
Choose this power line filter from Schneider Electric to protect your appliances against electrical noise. It removes EMI and RFI from your power connections, minimising the risk of disruption and supporting reliable machine performance. The unit works with various models of variable speed drives (such as 248-3853), so it's a versatile option. A 380 to 500V voltage rating indicates the unit can handle large electrical loads and stop faults from occurring in heavy-duty equipment.
Features & Benefits
• Works with 3-phase power lines for compatibility with common electrical supplies
• Power dissipation rating of 9.9W for energy-efficient filtering
• Low-profile dimensions of 107 (L) x 42 (W) x 195mm (D) to fit on busy circuits
• Mounts directly onto the side of a variable speed drive for simple installation
• Power dissipation rating of 9.9W for energy-efficient filtering
• Low-profile dimensions of 107 (L) x 42 (W) x 195mm (D) to fit on busy circuits
• Mounts directly onto the side of a variable speed drive for simple installation
Applications
• Metalworking
• Automated manufacturing
• Packing industry
• Automated manufacturing
• Packing industry
When should I install a power line filter?
You should install a filter inline with equipment that switches at high frequencies. Power line filters also help protect long unshielded cables, keeping your motor-driven appliances working reliably.
사양
속성 | 값 |
---|---|
Maximum Current Rating | 15A |
Maximum Voltage Rating | 500 V |
Number of Phases | 3 |
Series | Altivar |
Length | 107mm |
Depth | 195mm |
Dimensions | 107 x 42 x 195mm |
Power Loss | 9.9W |
