- RS 제품 번호:
- 761-5713
- 제조사 부품 번호:
- MDF50
- 제조업체:
- Deltron
본 제품은 백오더/선주문 진행으로는 불가한 상황입니다.
죄송합니다만, 본 제품에 대한 재고가 없으며, 현재는 백오더/선주문 진행이 불가합니다.
추가완료!
단가 개당
₩267,940.791
수량 | 한팩당 |
1 - 4 | ₩267,940.791 |
5 - 9 | ₩260,651.364 |
10 + | ₩254,086.395 |
- RS 제품 번호:
- 761-5713
- 제조사 부품 번호:
- MDF50
- 제조업체:
- Deltron
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항

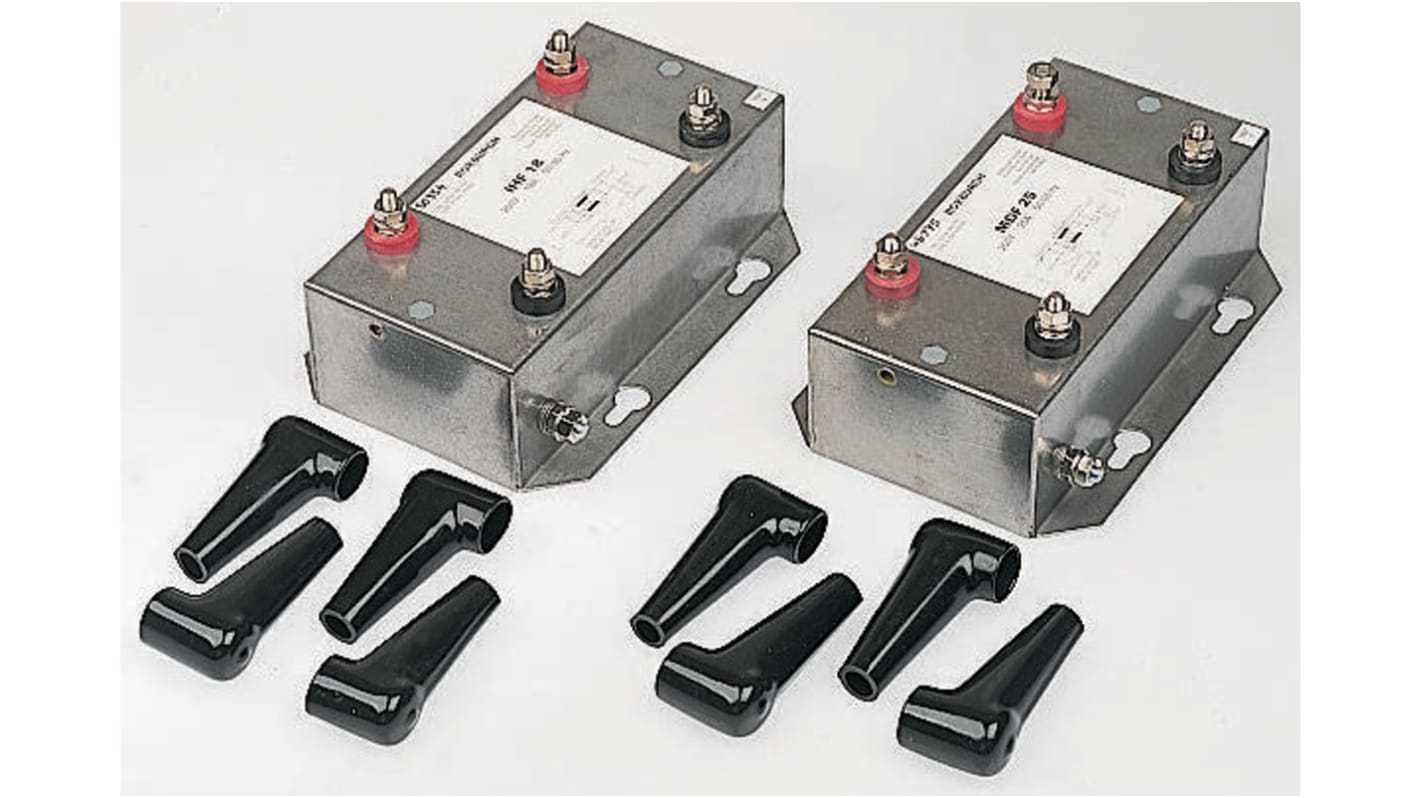

Roxburgh MDF series single phase industrial motor drive filters
Roxburgh MDF series single phase industrial motor drive filters are compact, high performance and cost-effective EMC filters. Suitable for applications such as inverter drives, servo drives and high noise environments.
사양
속성 | 값 |
---|---|
Maximum Current Rating | 50A |
Maximum Voltage Rating | 240 V ac |
Mounting Type | Flange Mount |
Termination Style | Stud |
Number of Phases | 1 |
Series | MDF |
Operating Frequency | 60Hz |
Length | 174mm |
Depth | 120mm |
Height | 55mm |
Dimensions | 174 x 120 x 55mm |
Leakage Current | 110 mA |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +85°C |
Resistance | 2mΩ |
Power Loss | 5W |
Standards Met | UL 1283 |
