- RS 제품 번호:
- 761-5696
- 제조사 부품 번호:
- DRF10
- 제조업체:
- Deltron
일시 품절-다음 입고 날짜는 13/05/2024 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.
추가완료!
단가 개당
₩98,709.127
수량 | 한팩당 |
1 - 4 | ₩98,709.127 |
5 - 9 | ₩96,433.984 |
10 + | ₩94,100.195 |
- RS 제품 번호:
- 761-5696
- 제조사 부품 번호:
- DRF10
- 제조업체:
- Deltron
제정법과 컴플라이언스
- COO (Country of Origin):
- GB
제품 세부 사항

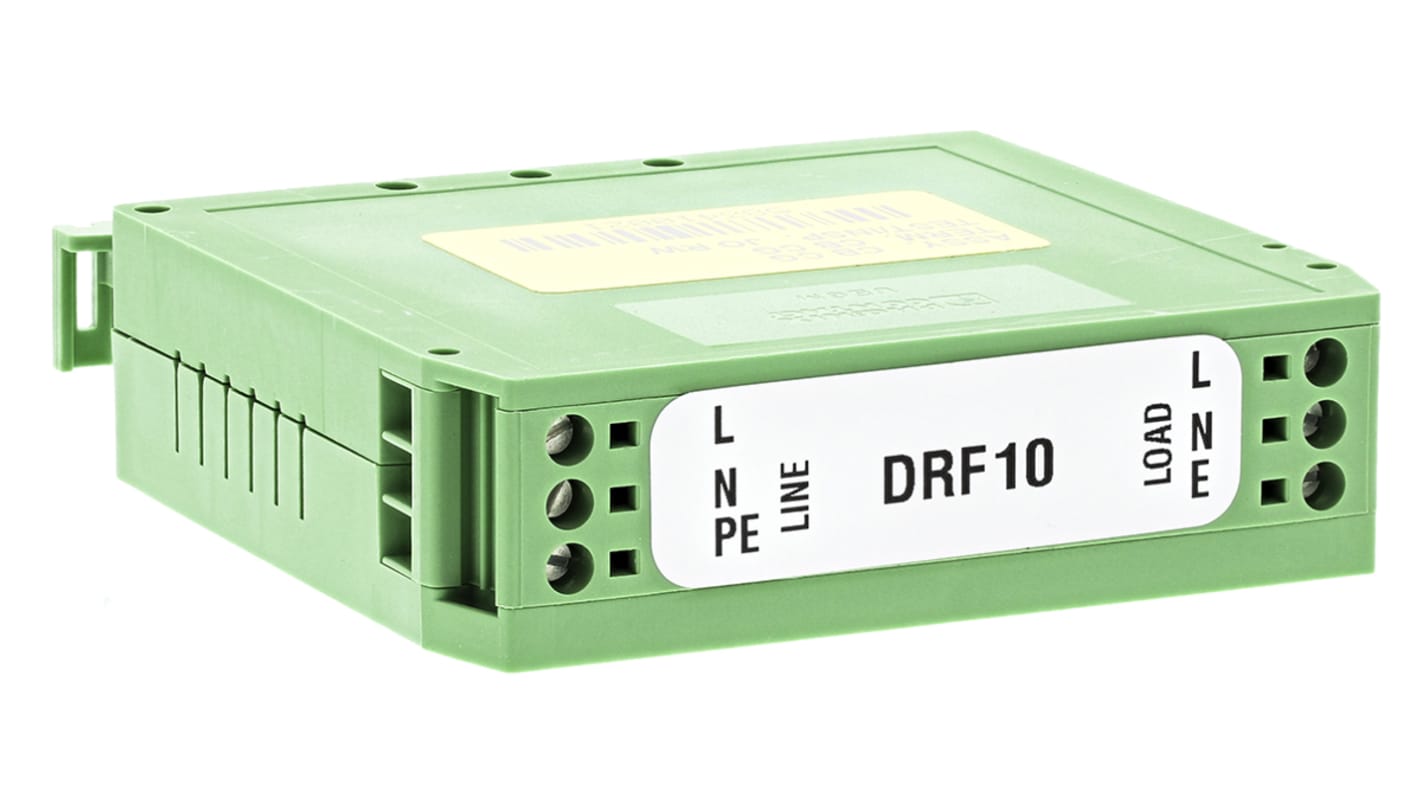

Roxburgh DRF Series
The DRF series from Roxburgh are a range of DIN Rail rail-mounted filters. Suitable for use in AC and DC applications up to line voltage and frequency, DRF power line filters also include voltage spike protection across the line.
Features and Benefits:
Spike and surge protection
Universal fitting
Suitable for both 'Top Hat' and 'G-Type' rails
Effective filtering between 150 kHz to 30 MHz
30°C maximum temperature rise at full load
Different current rating options from 1A to 10A are available
사양
속성 | 값 |
---|---|
Maximum Current Rating | 10A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | DIN Rail |
Termination Style | Screw |
Number of Phases | 1 |
Series | DRF |
Operating Frequency | 440Hz |
Length | 80mm |
Depth | 22.5mm |
Height | 93mm |
Capacitance | 1µF |
Dimensions | 80 x 22.5 x 93mm |
Inductance | 850 μH |
Minimum Operating Temperature | -25°C |
Leakage Current | 0.75 mA |
Maximum Operating Temperature | +85°C |
Resistance | 12mΩ |
Standards Met | EN 60939 |
Power Loss | 1.2W |
