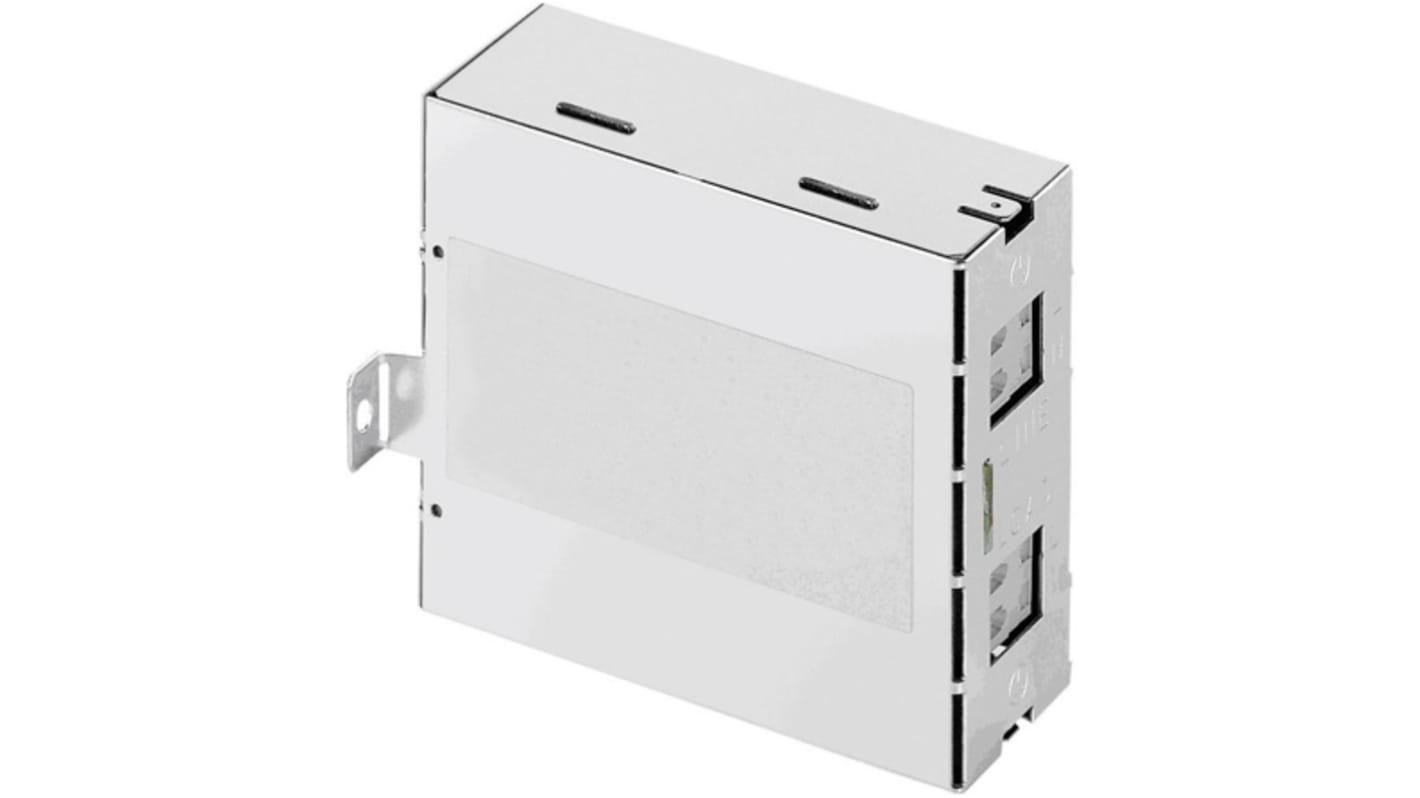

Block, HFE 156 16A 250 V ac 50 → 60Hz, DIN Rail RFI Filter, Tab, Single Phase
- RS 제품 번호:
- 336-8006
- 제조업체:
- Block
2 <재고있음> 5-9영업일내 홍콩 발송
추가완료!
단가 개당
₩149,138.304
| 수량 | 한팩당 |
| 1 - 9 | ₩149,138.304 |
| 10 - 24 | ₩143,171.875 |
| 25 - 49 | ₩137,207.171 |
| 50 + | ₩134,224.818 |
- RS 제품 번호:
- 336-8006
- 제조업체:
- Block
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항
HFE 156-230/X Series
High insertion loss over a wide frequency range
High asymmetrical interference suppression
Ideal for supply-side suppression of frequency converters
Screened by sheet steel enclosure
Din rail mount
2.5mm2 spring tension clamps
Dual earth connection with standard tab connector 6.3x0.8mm
High asymmetrical interference suppression
Ideal for supply-side suppression of frequency converters
Screened by sheet steel enclosure
Din rail mount
2.5mm2 spring tension clamps
Dual earth connection with standard tab connector 6.3x0.8mm
사양
속성 | 값 |
|---|---|
| Maximum Current Rating | 16A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | DIN Rail |
| Termination Style | Tab |
| Number of Phases | 1 |
| Series | HFE 156 |
| Number of Stages | Single Stage |
| Operating Frequency | 50 → 60Hz |
| Length | 45mm |
| Depth | 127mm |
| Height | 110mm |
| Dimensions | 45 x 127 x 110mm |
| Leakage Current | 8 mA |
| Maximum Operating Temperature | +45°C |
| Power Loss | 8.9W |
| Standards Met | EN 60939-2 |
