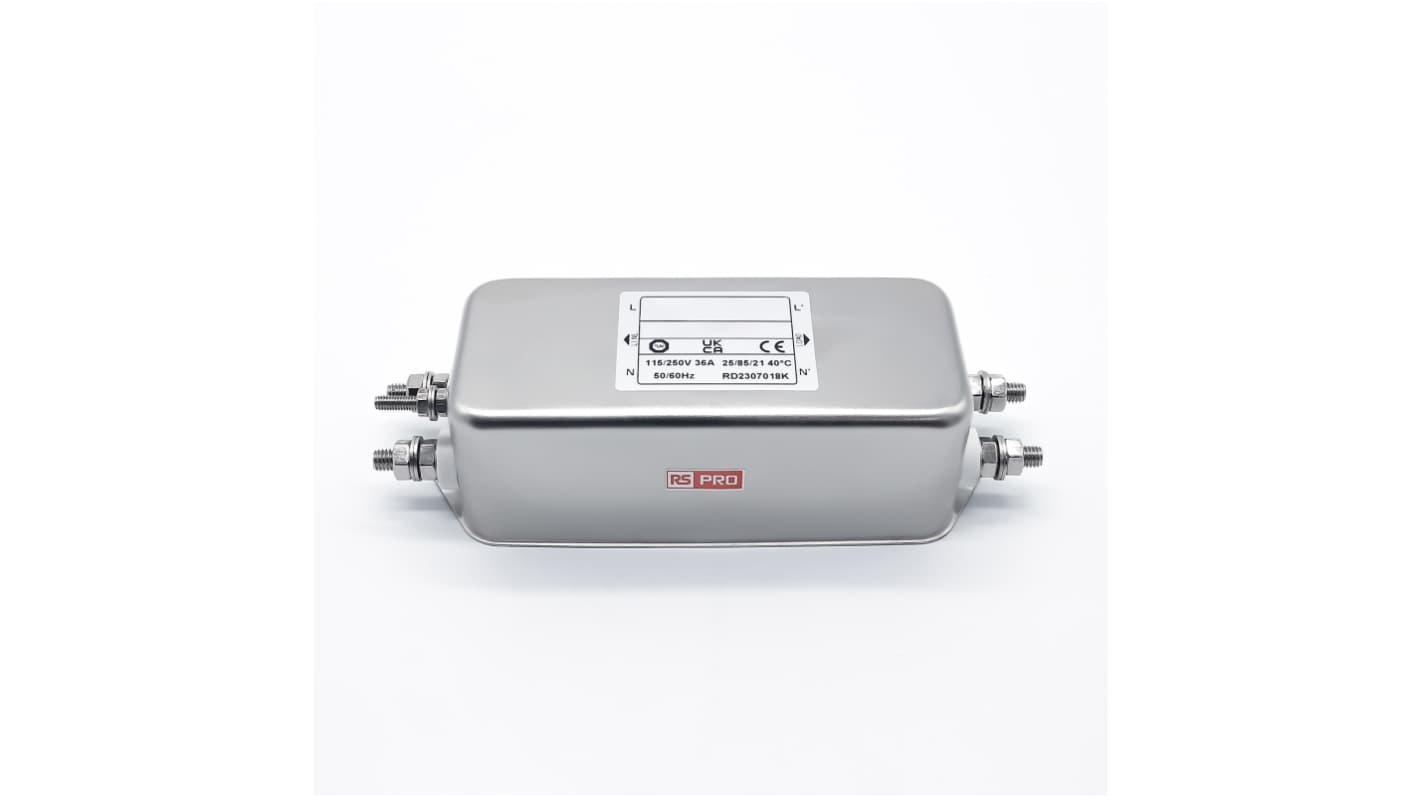

RS PRO 36A 115/250 V ac 50 → 60Hz, Chassis Mount Power Line Filter, Screw, Single Phase
- RS 재고 번호:
- 286-7285
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩171,089.40
재고있음
- 35 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 - 4 | ₩171,089.40 |
| 5 - 9 | ₩159,110.04 |
| 10 - 24 | ₩147,969.16 |
| 25 + | ₩137,625.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 286-7285
- 제조업체:
- RS PRO
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Maximum Current Rating | 36A | |
| Maximum Voltage Rating | 115/250 V ac | |
| Mounting Type | Chassis Mount | |
| Termination Style | Screw | |
| Number of Phases | 1 | |
| Number of Stages | Two Stage | |
| Operating Frequency | 50 → 60Hz | |
| Length | 131mm | |
| Depth | 57.5mm | |
| Capacitance | 2.2µF | |
| Height | 45mm | |
| Inductance | 2 x 1.3mH | |
| Dimensions | 131 x 57.5 x 45mm | |
| Leakage Current | 0.5/1.0mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Resistance | 220kΩ | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Maximum Current Rating 36A | ||
Maximum Voltage Rating 115/250 V ac | ||
Mounting Type Chassis Mount | ||
Termination Style Screw | ||
Number of Phases 1 | ||
Number of Stages Two Stage | ||
Operating Frequency 50 → 60Hz | ||
Length 131mm | ||
Depth 57.5mm | ||
Capacitance 2.2µF | ||
Height 45mm | ||
Inductance 2 x 1.3mH | ||
Dimensions 131 x 57.5 x 45mm | ||
Leakage Current 0.5/1.0mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Resistance 220kΩ | ||
- COO (Country of Origin):
- CN
RS PRO 36A Single Phase Two Stage EMI Filter (115/250V)
A general purpose single phase two stage EMI filter for the reduction of electromagnetic interference through power lines protecting sensitive connected equipment.
Designed for chassis mounting and built to a compact size of 131 x 57.5 x 45mm the power line filter is ideal for areas with limited space and is easily connected using the screw terminals.
Featuring an IP40 rating suitable for indoor use and a wide operating range of -25°C to 85°C the EMI power line filter is hardwearing and suitable for use with general electrical and electronic equipment, sensitive medical equipment, energy applications and communication equipment.
Features and Benefits
Power line EMI filter
Current rated to 36A
Resistance of 220KΩ
Hipot Rating 2250vdc (line to ground), 500Vdc (line to line)
IP40 rated
Dimensions of 131 x 57.5 x 45mm
143mm mounting hole spacing
Screw terminals
Weight of 1.1kg
Standards and Approvals: TUV, CE, UKCA, EN 60939, UL1283; CSA C22.2 No.8; GB/T 15287; GB/T 15288-1994;
