EPCOS, B84115E 10A 250 V ac/dc 60Hz, Flange Mount EMC Filter, Tab, Single Phase
- RS 제품 번호:
- 213-7154
- 제조사 부품 번호:
- B84115E0000B110
- 제조업체:
- EPCOS

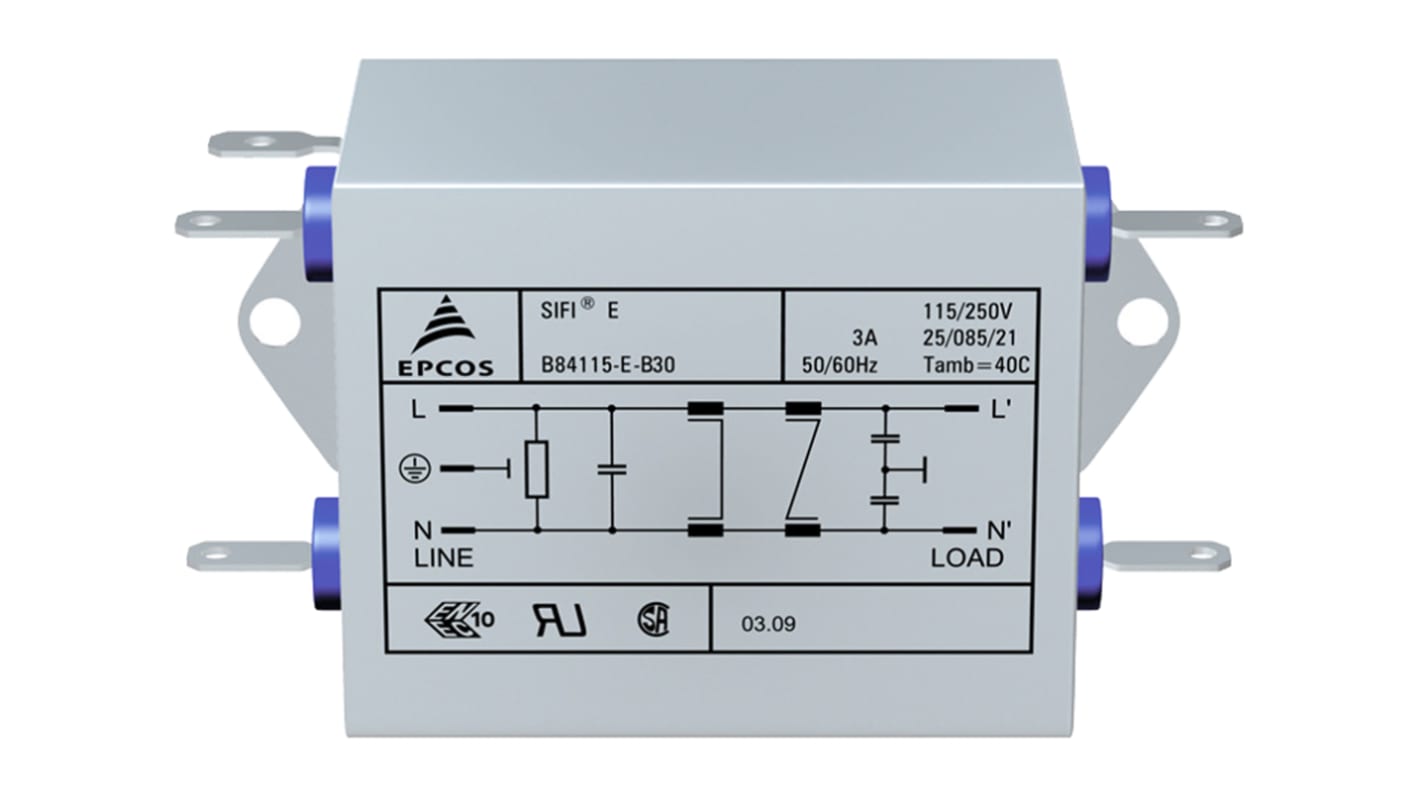

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩153,295.20
재고있음
- 10 개 단위 배송 준비 완료
- 추가로 2025년 12월 24일 부터 24 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 3 | ₩153,295.20 |
| 4 - 7 | ₩150,230.80 |
| 8 + | ₩145,718.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 213-7154
- 제조사 부품 번호:
- B84115E0000B110
- 제조업체:
- EPCOS
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EPCOS | |
| Maximum Current Rating | 10A | |
| Maximum Voltage Rating | 250 V ac/dc | |
| Mounting Type | Flange Mount | |
| Termination Style | Tab | |
| Number of Phases | 1 | |
| Series | B84115E | |
| Number of Stages | Two Stage | |
| Operating Frequency | 60Hz | |
| Length | 159mm | |
| Depth | 50.8mm | |
| Height | 44.5mm | |
| Capacitance | 0.47 x 2 μF, 22 x 2nF | |
| Inductance | 47 μH, 3.6 x 2 mH | |
| Dimensions | 159 x 50.8 x 44.5mm | |
| Leakage Current | 1.73 mA | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Standards Met | UL 1283 | |
| 모두 선택 | ||
|---|---|---|
브랜드 EPCOS | ||
Maximum Current Rating 10A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type Flange Mount | ||
Termination Style Tab | ||
Number of Phases 1 | ||
Series B84115E | ||
Number of Stages Two Stage | ||
Operating Frequency 60Hz | ||
Length 159mm | ||
Depth 50.8mm | ||
Height 44.5mm | ||
Capacitance 0.47 x 2 μF, 22 x 2nF | ||
Inductance 47 μH, 3.6 x 2 mH | ||
Dimensions 159 x 50.8 x 44.5mm | ||
Leakage Current 1.73 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Standards Met UL 1283 | ||
- COO (Country of Origin):
- HU
B84113-C / B84115-E Series
High attenuation over a wider frequency range from high inductance values
SIFI-E range gives a better overall attenuation performance at frequencies below 150kHz
Ideally suited for switch mode power supplies in industrial electronic equipment
Low leakage current
Aluminium case
SIFI-E range gives a better overall attenuation performance at frequencies below 150kHz
Ideally suited for switch mode power supplies in industrial electronic equipment
Low leakage current
Aluminium case
Approvals
UL recognised, CSA Certified, VDE
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
