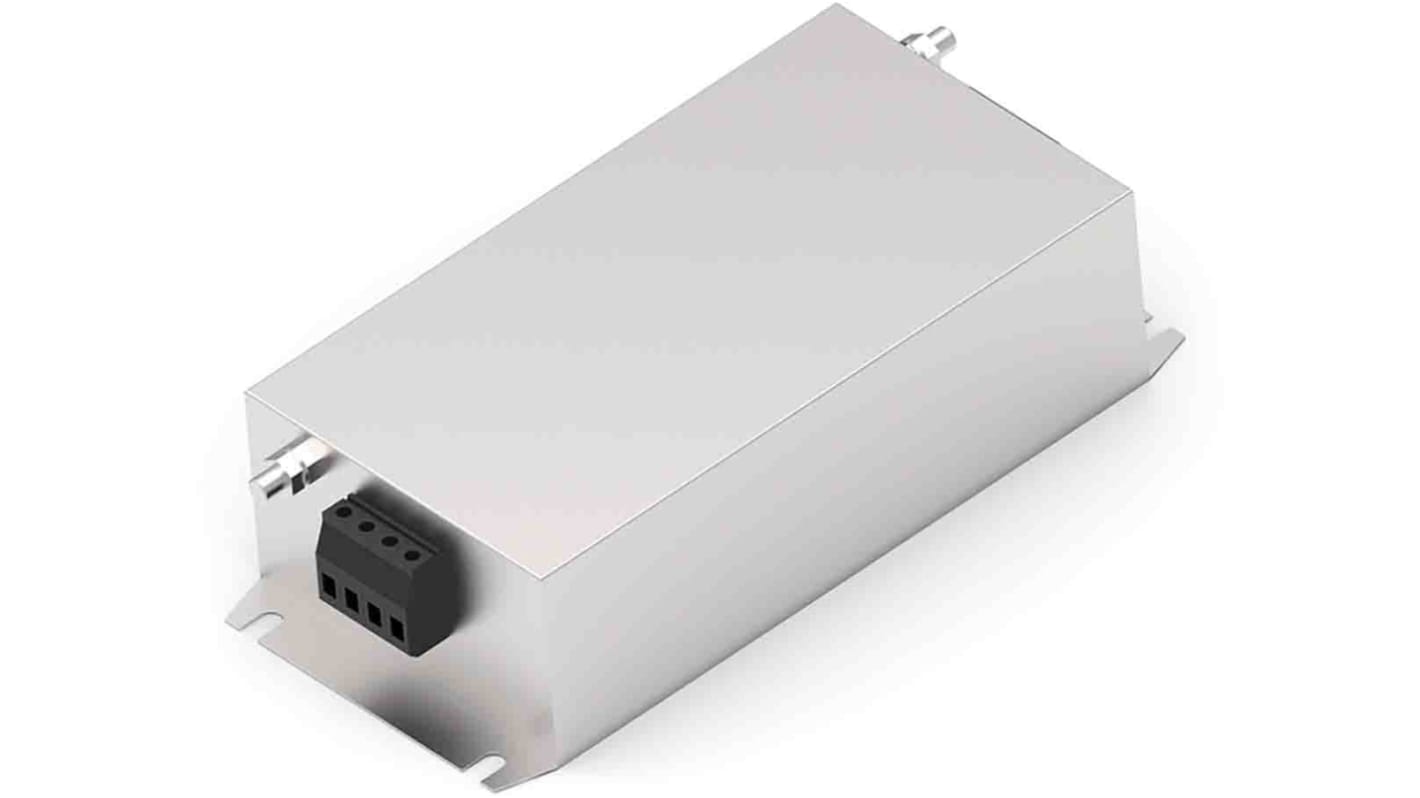

TE Connectivity, KEV 60A 520 V ac 50/60Hz, Chassis Mount EMI Filter, Terminal Block 3 Phase
- RS 제품 번호:
- 209-4405
- 제조사 부품 번호:
- 60KEVD10BFPW
- 제조업체:
- TE Connectivity
현재 시스템 에러로 재고 수량 확인이 불가합니다. krenquiry@rs-components.com 에 문의하시거나 잠시후에 다시 시도해주시기 바랍니다.
추가완료!
단가 개당가격(6개가 1박스안에)
₩501,656.117
| 수량 | 한팩당 | Per Box* |
| 6 - 6 | ₩501,656.117 | ₩3,009,940.151 |
| 12 - 18 | ₩491,624.098 | ₩2,949,741.141 |
| 24 + | ₩481,790.444 | ₩2,890,746.111 |
| *다른 단위에 대한 가격 표시 | ||
- RS 제품 번호:
- 209-4405
- 제조사 부품 번호:
- 60KEVD10BFPW
- 제조업체:
- TE Connectivity
제정법과 컴플라이언스
- COO (Country of Origin):
- IN
제품 세부 사항
The TE Connectivity KEB series 3-phase general purpose EMI filter has single stage delta (3wire + ground )configuration. It has electrical ratings of 3-phase 520VAC voltage and 60A current. This power line filters are universal and cost-effective with good power attenuation. It is designed to be used in ideal applications include HVAC, rectifier and industrial control systems.
Operating frequency = 50/60Hz
Leakage current = 10mA
Standard attenuation performance
Chassis mounting
Operating temperature range = -25°C to +85ºC
Leakage current = 10mA
Standard attenuation performance
Chassis mounting
Operating temperature range = -25°C to +85ºC
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
사양
속성 | 값 |
|---|---|
| Maximum Current Rating | 60A |
| Maximum Voltage Rating | 520 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Block |
| Number of Phases | 3 |
| Number of Stages | Two Stage |
| Series | KEV |
| Operating Frequency | 50/60Hz |
| Leakage Current | 10 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
