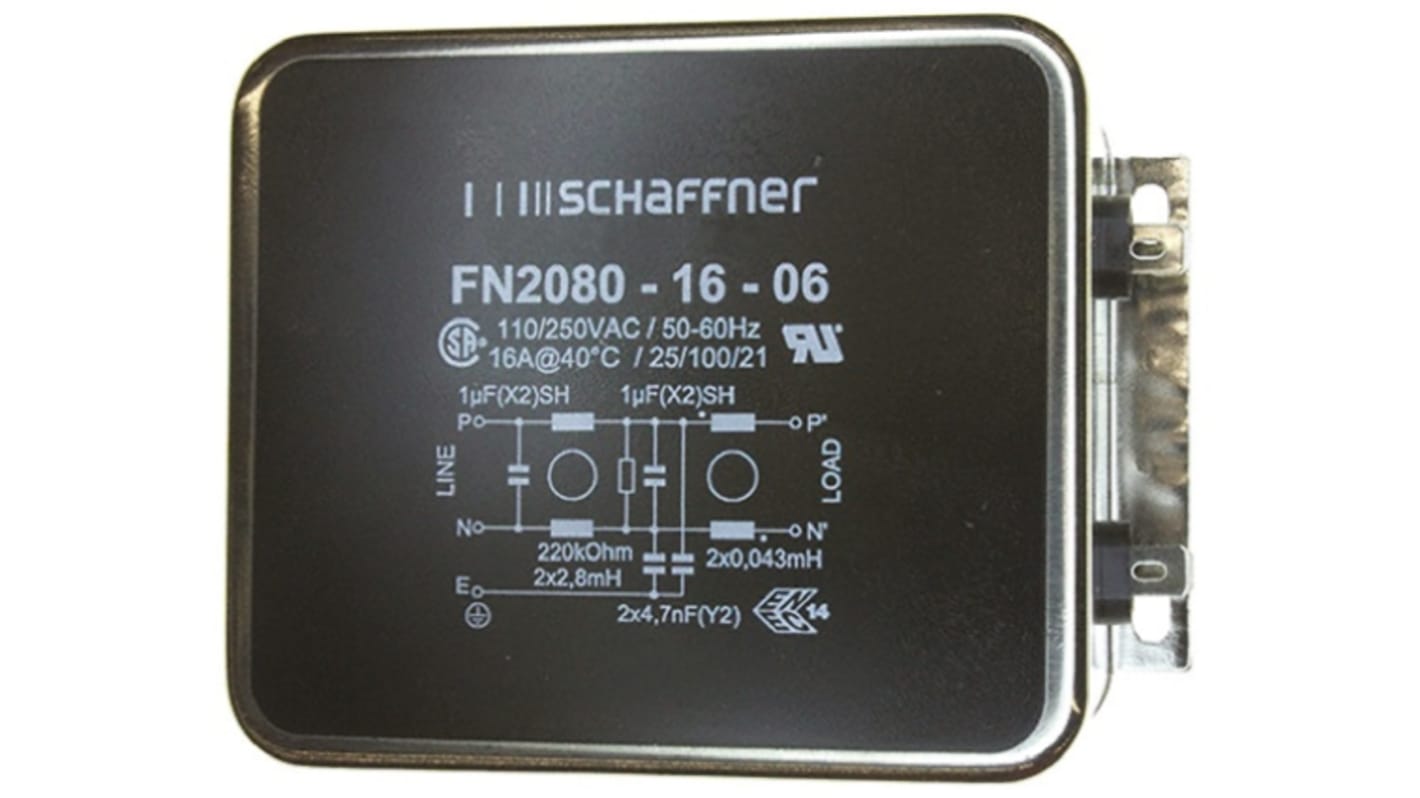

Schaffner, FN2080 16A 250 V ac/dc 400Hz, Chassis Mount EMI Filter, Fast-On
- RS 제품 번호:
- 170-5018
- 제조사 부품 번호:
- FN2080-16-06
- 제조업체:
- Schaffner
대량 구매 할인 기용 가능
Subtotal (1 Box of 10 units)*
₩1,324,685.60
재고있음
- 160 개 단위 배송 준비 완료
- 추가로 2026년 5월 07일 부터 200 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 10 - 10 | ₩132,468.56 | ₩1,324,685.60 |
| 20 - 30 | ₩129,819.64 | ₩1,298,196.40 |
| 40 + | ₩127,223.36 | ₩1,272,233.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 170-5018
- 제조사 부품 번호:
- FN2080-16-06
- 제조업체:
- Schaffner
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Schaffner | |
| Maximum Current Rating | 16A | |
| Maximum Voltage Rating | 250 V ac/dc | |
| Mounting Type | Chassis Mount | |
| Termination Style | Fast-On | |
| Number of Stages | Two Stage | |
| Series | FN2080 | |
| Operating Frequency | 400Hz | |
| Length | 85.5mm | |
| Depth | 119mm | |
| Capacitance | 1 μF, 4.7nF | |
| Height | 57.6mm | |
| Dimensions | 119 x 57.6 x 85.5mm | |
| Inductance | 2.8 mH, 43 μH | |
| Minimum Operating Temperature | -25°C | |
| Leakage Current | 0.734 mA | |
| Maximum Operating Temperature | +100°C | |
| Resistance | 220kΩ | |
| Power Loss | 9W | |
| 모두 선택 | ||
|---|---|---|
브랜드 Schaffner | ||
Maximum Current Rating 16A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type Chassis Mount | ||
Termination Style Fast-On | ||
Number of Stages Two Stage | ||
Series FN2080 | ||
Operating Frequency 400Hz | ||
Length 85.5mm | ||
Depth 119mm | ||
Capacitance 1 μF, 4.7nF | ||
Height 57.6mm | ||
Dimensions 119 x 57.6 x 85.5mm | ||
Inductance 2.8 mH, 43 μH | ||
Minimum Operating Temperature -25°C | ||
Leakage Current 0.734 mA | ||
Maximum Operating Temperature +100°C | ||
Resistance 220kΩ | ||
Power Loss 9W | ||
FN 2080 Series
Premium range of EMI filters from Schaffner. The FN2080 two-stage filters are designed for easy and fast chassis mounting. All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.
Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment, office automation and various noisy applications requiring good filter performance.
Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment, office automation and various noisy applications requiring good filter performance.
Two-stage chassis mount filters in aluminium case
Inductance values in the second stage (differential mode) are selected to provide excellent wide-band filtering
Connection by 0.25in Faston terminals
Good low frequency attenuation
Optional medical versions (B type) & safety versions (A type) available
Inductance values in the second stage (differential mode) are selected to provide excellent wide-band filtering
Connection by 0.25in Faston terminals
Good low frequency attenuation
Optional medical versions (B type) & safety versions (A type) available
Approvals
UL recognised, CSA Certified, VDE
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
