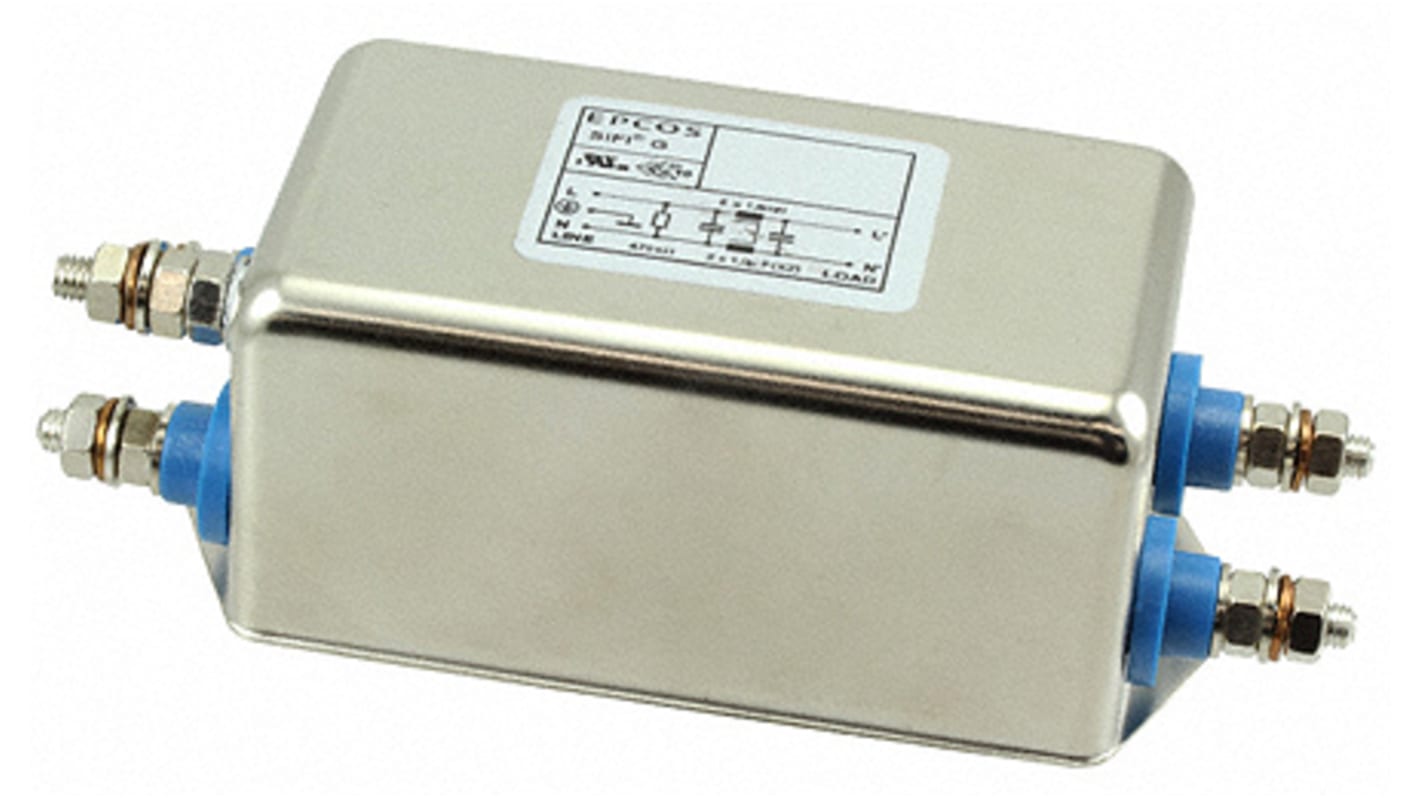

EPCOS, B84112G 36A 250 V ac/dc 50 → 60Hz, Chassis Mount EMC Filter, Screw, Single Phase
- RS 제품 번호:
- 124-5300
- Distrelec 제품 번호:
- 303-96-493
- 제조사 부품 번호:
- B84112G0000M136
- 제조업체:
- EPCOS
대량 구매 할인 기용 가능
가격 개당**
₩110,713.20
일시 품절-다음 입고 날짜는 26/10/2025 (일/월/년) 이며, 그 후 5-10영업일내 홍콩에서 발송. 정확한 입고 수량에 대한 문의는 krenquiry@rs-components.com 로 연락주세요.*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
---|---|
1 - 3 | ₩110,713.20 |
4 - 7 | ₩108,494.80 |
8 + | ₩106,332.80 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 124-5300
- Distrelec 제품 번호:
- 303-96-493
- 제조사 부품 번호:
- B84112G0000M136
- 제조업체:
- EPCOS
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
---|---|---|
브랜드 | EPCOS | |
Maximum Current Rating | 36A | |
Maximum Voltage Rating | 250 V ac/dc | |
Mounting Type | Chassis Mount | |
Termination Style | Screw | |
Number of Phases | 1 | |
Series | B84112G | |
Number of Stages | Single Stage | |
Operating Frequency | 50 → 60Hz | |
Length | 91mm | |
Depth | 51mm | |
Capacitance | 1.5 x 2µF | |
Height | 43mm | |
Dimensions | 91 x 51 x 43mm | |
Inductance | 0.8 x 2 mH | |
Leakage Current | 0 mA | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +100°C | |
Standards Met | UL 1283 | |
모두 선택 | ||
---|---|---|
브랜드 EPCOS | ||
Maximum Current Rating 36A | ||
Maximum Voltage Rating 250 V ac/dc | ||
Mounting Type Chassis Mount | ||
Termination Style Screw | ||
Number of Phases 1 | ||
Series B84112G | ||
Number of Stages Single Stage | ||
Operating Frequency 50 → 60Hz | ||
Length 91mm | ||
Depth 51mm | ||
Capacitance 1.5 x 2µF | ||
Height 43mm | ||
Dimensions 91 x 51 x 43mm | ||
Inductance 0.8 x 2 mH | ||
Leakage Current 0 mA | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
Standards Met UL 1283 | ||
