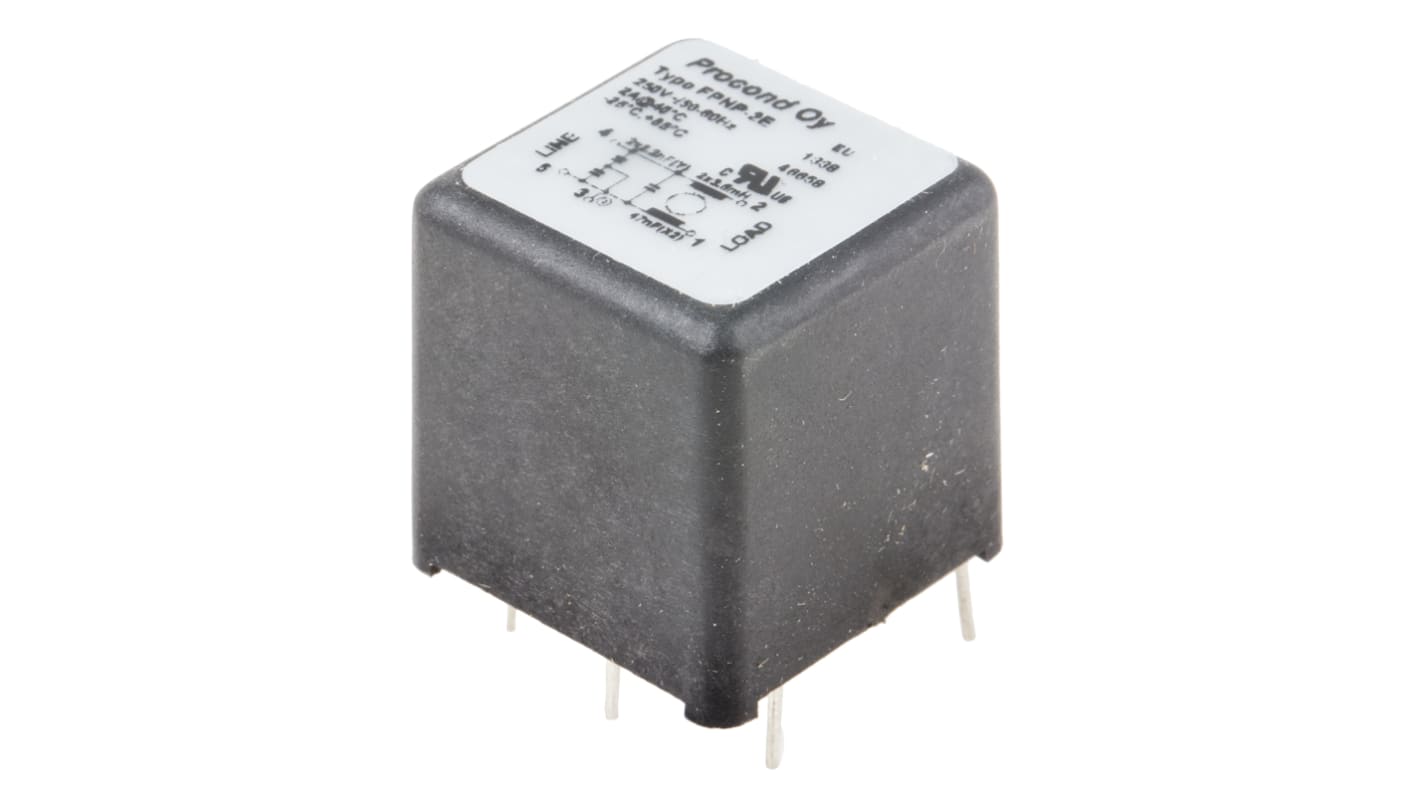

RS PRO 2A 250 V ac 400Hz, Through Hole RFI Filter, Pin
- RS 제품 번호:
- 239-927
- 제조업체:
- RS PRO
단종
- RS 제품 번호:
- 239-927
- 제조업체:
- RS PRO
제정법과 컴플라이언스
- COO (Country of Origin):
- FI
제품 세부 사항
FPNP Series
Miniature space-saving mains RFI filter
Protects digital logic circuits
High attenuation is achieved by using high inductance current-compensated chokes and class X2 and Y capacitors
Protects digital logic circuits
High attenuation is achieved by using high inductance current-compensated chokes and class X2 and Y capacitors
Approvals
CSA Certified, UL recognised
사양
속성 | 값 |
|---|---|
| Maximum Current Rating | 2A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Through Hole |
| Termination Style | Pin |
| Series | FPNP |
| Operating Frequency | 400Hz |
| Length | 25mm |
| Depth | 25mm |
| Height | 25mm |
| Capacitance | 47 nF, 2200 x 2 pF |
| Inductance | 2 x 3.5 mH |
| Dimensions | 25 x 25 x 25mm |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.2 mA |
| Maximum Operating Temperature | +85°C |
