Igus Positioning Table SET-25-AWM-300, 300N
- RS 제품 번호:
- 667-1263
- 제조사 부품 번호:
- SET-25-AWM-300
- 제조업체:
- Igus
- RS 제품 번호:
- 667-1263
- 제조사 부품 번호:
- SET-25-AWM-300
- 제조업체:
- Igus
제정법과 컴플라이언스
- COO (Country of Origin):
- DE
제품 세부 사항

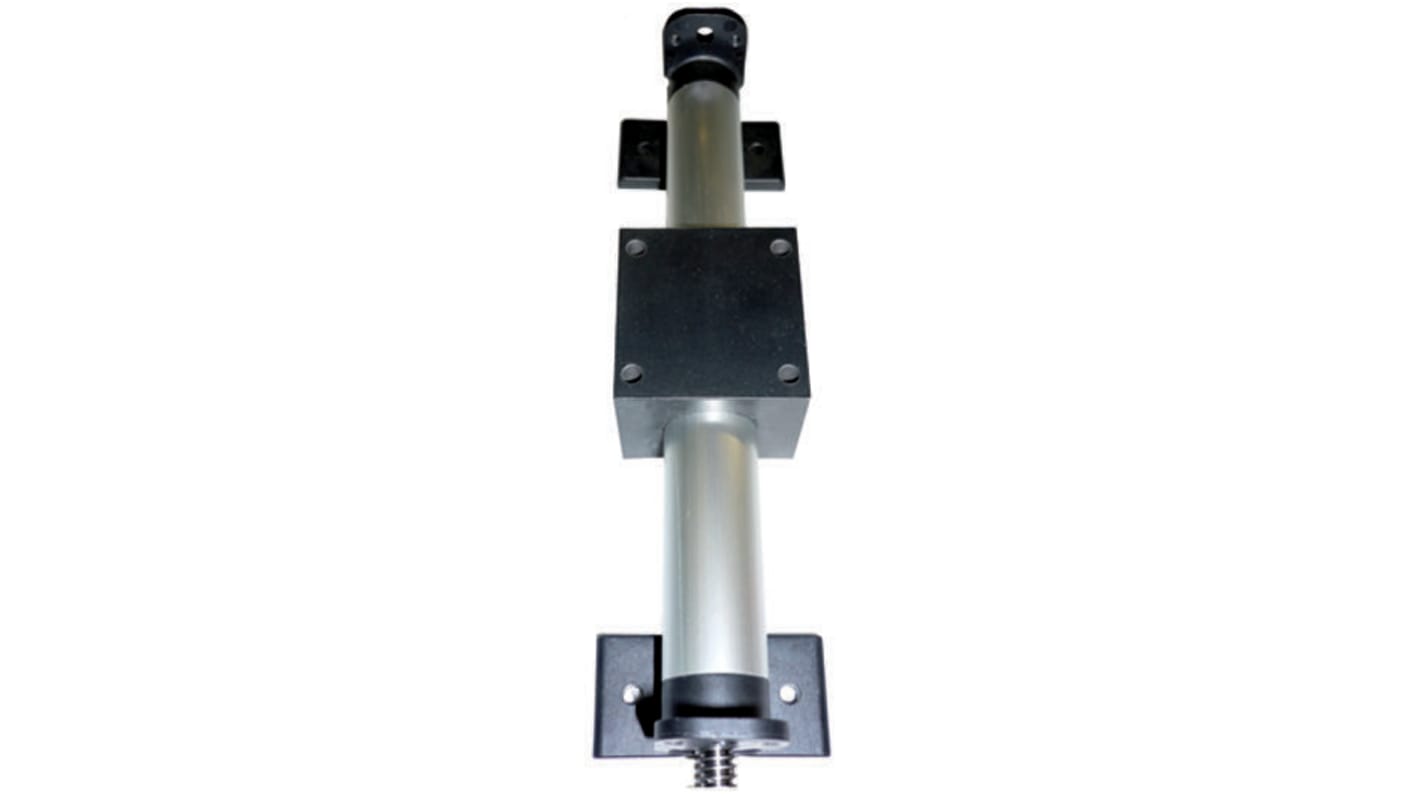

DryLin® SET - EasyTube
This compact unit uses an anodised aluminium tube to guide the slide carriage and protect the leadscrew. The integral carriage and nut is manufactured from iglidur self lubricating bearing material. Ideal for hand operated positioning systems.
Totally lubricant-free
Low weight due to aluminium and plastics
Tapered off spindle ends enable operation by hand wheel or motor (Not supplied)
Temperature resistance up to 80°C
High resistance to contamination
Low weight due to aluminium and plastics
Tapered off spindle ends enable operation by hand wheel or motor (Not supplied)
Temperature resistance up to 80°C
High resistance to contamination
사양
속성 | 값 |
|---|---|
| Stroke Length | 300mm |
| Overall Length | 415mm |
| Static Load Rating | 300N |
| Carriage Length | 55mm |
| Positioning Table Type | Positioning Table |
| Carriage Width | 60mm |
